Specifications
5mm LED with 850nm IR LED1.If=100mA, Vf:1.4-1.8v
2.Radiant intensity: 130mW/sr
3.Wavelength: 850nm
4.Chip:Taiwan TK
Through Hole Package Type and LED Type led 5mm LED with 850nm IR LED
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward voltage | Vf | If=100mA | -- | 1.6 | 1.8 | V |
| Radiant Intensity | Ie | If=100mA | 100 | 120 | -- | mW/sr |
| Peak wavelength | Pw | If=100mA | -- | 850 | -- | nm |
| Reverse current | Ir | Vr=5V | -- | -- | 50 | uA |
| Parameter | Symbol | Value | Unit |
| Power dissipation | Pd | 150 | mW |
| DC Forward current | If | 100 | mA |
| Peak forward current | Ifp | 1000 | mA |
| Reverse voltage | Vr | 5 | V |
| Electro-static-discharge | ESD | 2000 | V |
| Operating Temperature | Topr | -25 to +85 | °C |
| Storage Temperature | Tstg | -40 to +100 | °C |
| Lead solder temperature | Tsol | 260 for 5sec | °C |

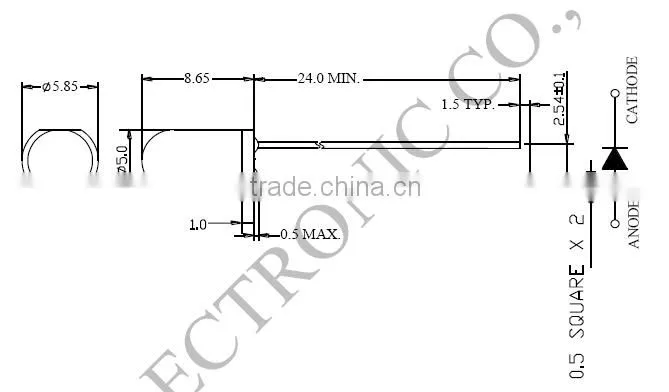

Package outline dimensions:
Note:
1. All dimensions are in millimeters;
2.Tolerance is +/-0.25mm unless otherwise noted;
3.Lead spacing is measured where the leads emerge from the package;
4.Specifications are subject to change without price.
MPQ:1000PCS per bag, 0.25kg/bag
Delivery time: 2-3 working days for sample, 7-14 working days for mass order.
Shipping ways: By sea, By air, By express all available, will also recommend best shipping way according to quantity.
1. Experienced R&D team
2. Professional production process, 3 years quality guarantee
3. Free samples support
4. Short lead time
5. Customized will be welcomed
6. Small order will be acceptable
