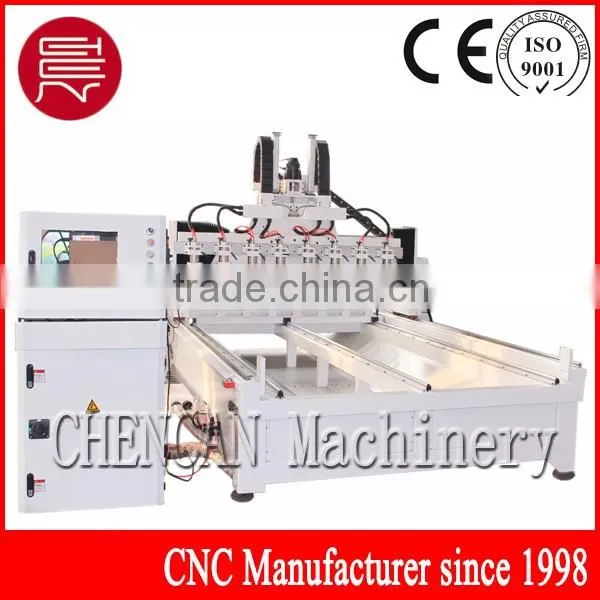

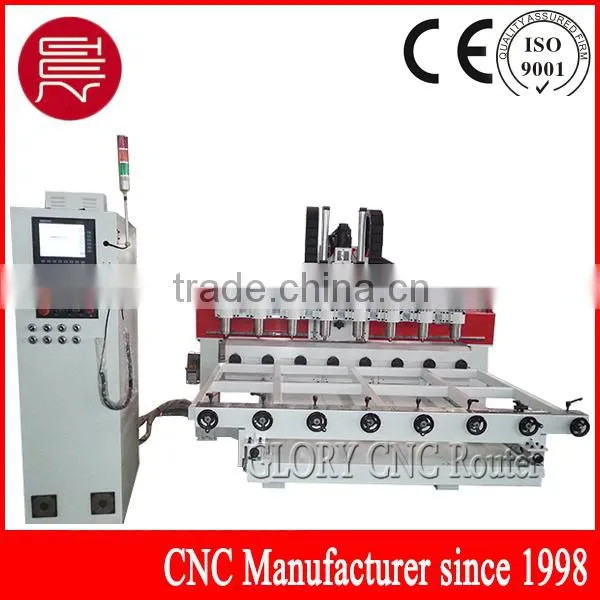

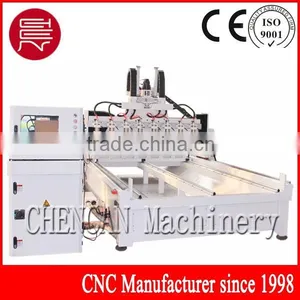

Table Moving Eight Spindle Cylinder Wood Engraving Machine

Name: Table Moving Eight Spindle Cylinder Wood Engraving Machine
Brand: CHENCAN
SKU: 130427315

US$ 17,000 - 25,000 MOQ: 1 Set

Key Specifications

Condition:

New

CNC or Not:

CNC

Place of Origin:

Shandong, China

Shandong Chencan Machinery Incorporated Company

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao/Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not CNC

Place of Origin Shandong, China

Brand Name CHENCAN

Model Number CC-MS2515K8

Voltage 220V/380V/415V

Power(W) varied

Dimension(L*W*H) 2515

Weight 3000kg

Certification CE, ISO

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Eight Spindle Cylinder Wood Engraving Machine

Machine working video:http://youtu.be/xHUoosi0FkU
Company promotion video: http://youtu.be/OjzH7NMGbH4

Product Features
1.	Spindles work synchronously.
2.	Whole machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, so the lathe body is stabilized and will not be deformed forever.
3.	The machine adopts table movement, suitable for batch processing small work piece.
4.	Well compatibility: CAD/DAM designing software e.g. Type 3/Artcam/Castmate/AutoCad/PowerMill/UG/Alphacam, etc.
5.	This machine has the function of re-carving after break point or power failure and it can estimate the processing time.
6.	Adopting advanced NC Studio/Weihong computer system with USB connection, operated with the handle, convenient operation. Our engraver can completely work off-line.
7.	Three axes adopt Taiwan Hiwin linear guide rail with high precision.
8.	Z axis adopts imported Germany made ball screw, so high precision and long life time using are assured.
9.	Manual oil-injection system allows the machine maintenance mush easier.
10.	High soft and famous brand electric cables with high abrasion, fold, high temperature, acid or alkali resistance.
11.	We will provide you several kinds of software for free, with English and multilingual versions. Also you will get the picture storage with thousands of 2D and 3D designs.
12.	Along with the machine, some spare parts, work fixtures and tools will be packed into the tool box.

Technical Parameters
Rotary Working Diameter	150-250mm
Rotary Working Length	1500mm
Spindle	2.2kw water-cooled, air cooled for option
Spindle Speed	Adjustable 0-24,000 rpm
Tool Change	Manual Tool-Change
Drive System (X & Y Axes)	Helical Rack & Pinion
Drive System (Z Axis)	Taiwan ball Screw
Drive Motors	Japanese Yaskawa servo motor
Inverter	Delta
Driver	Yaskawa
Command	G code
Cutter diameter	3.175-12.7mm
Maximum Travel Speed	35m/min
Controller	NC Studio
Power Requirements	3-phase 220V/380V/415V, 50HZ We can change it to customers' local voltage according to different countries

Samples

FAQ
1. I never use this kind of machine before, is it easy to learn?
User-friendly English manual and operation video will be sent together with the machine. If there is still any question, we can talk through phone or Skype. Moreover, you could come to our factory to learn how to use it before shipment. Our technician will give you professional guidance.
2. If the machine has problems, what can you do to help?
Free parts will send to you within warranty time, and there are 24/7 technique support by mail and phone. Our after-sales staff can come to your workshop if the problem still can not be fixed.
3. How could I know if this machine is suitable for me?
Before ordering, we will provided every details of the machine for your reference, or you could tell us your work piece, our technician will recommend the most suitable machine for you. Furthermore, we can make a sample in advance for you to check if your drawing is provided.
