Specifications
Wood Cabinet ATC CNC Router with drill and sawItaly HSD 9KW Air-cooling spindleYASKAWA Servo motor
Taiwan Syntec system

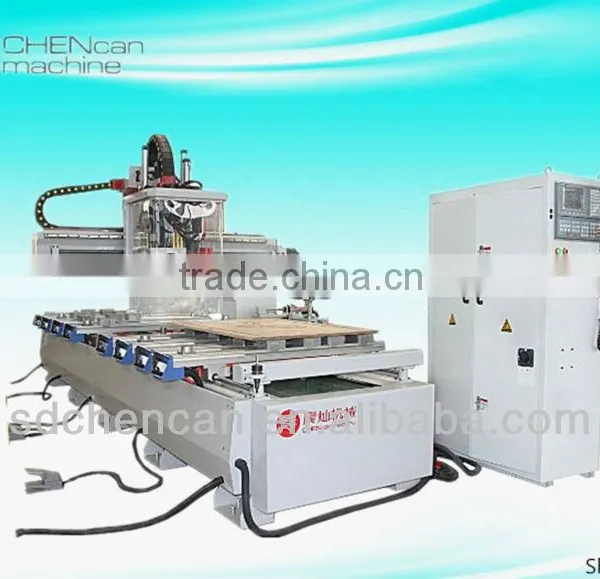

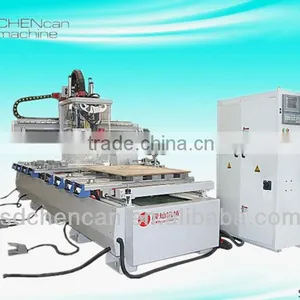

Wood Cabinet ATC CNC Router with drill and saw
cnc router, wood cnc router, wood cnc machine
- Working area: 1300*3500*250mm
- product passed CE and ISO certification
- this machine is suitable to make house door, kitchen, cabinet, all kinds of furniture.
- spindle can make vertical and horizontal hole, side key groove.
- machine can work to routing, engraving, cutting, drilling, milling
our machine main features:

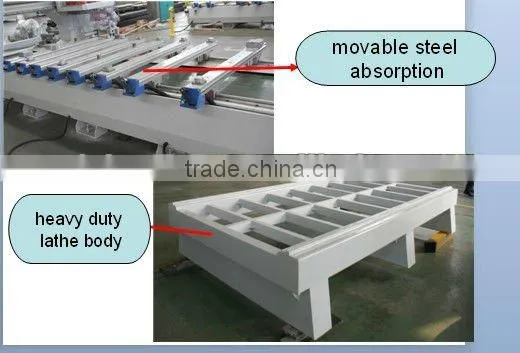

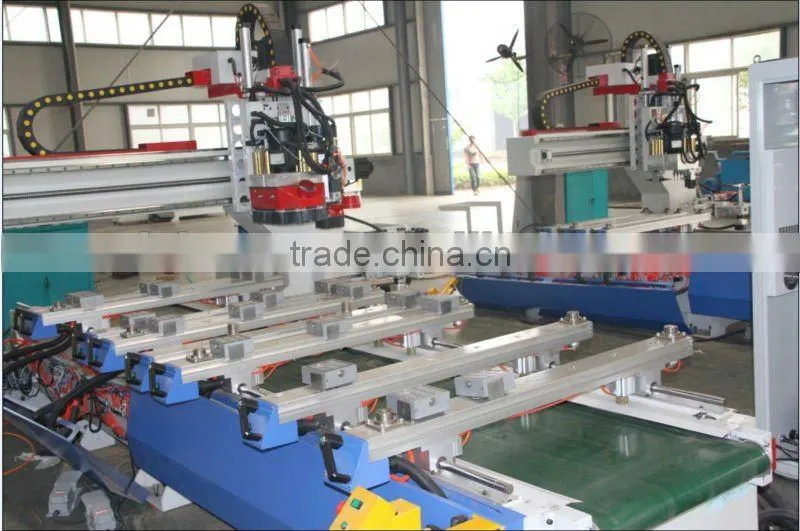

movable steel absorption
higher and stronger lathe body made in our factory to keep good quality and low cost

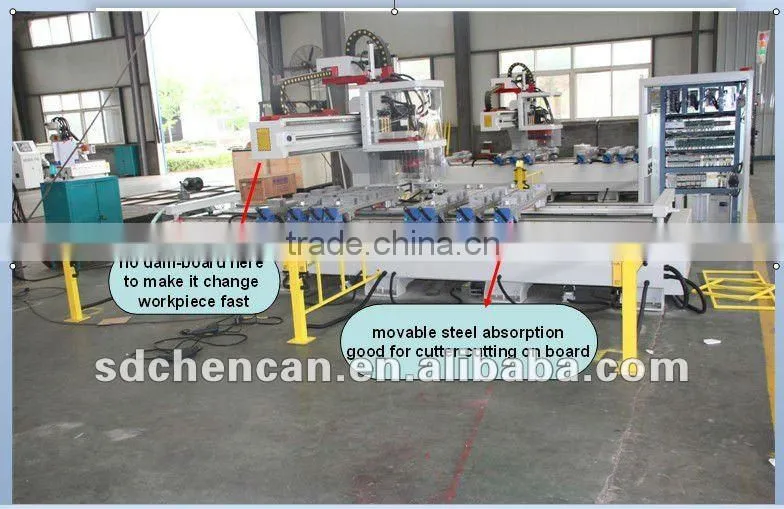

special design to make it faster and easier when change workpiece

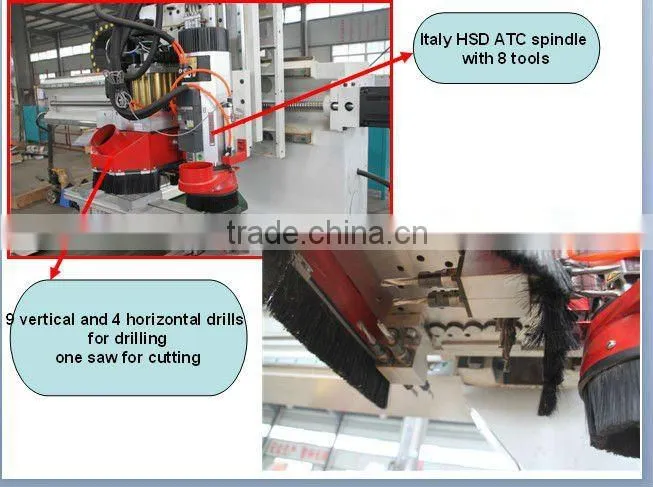

9KW ITALY HSD air-cooling spindle, 8 tools, tool change fast

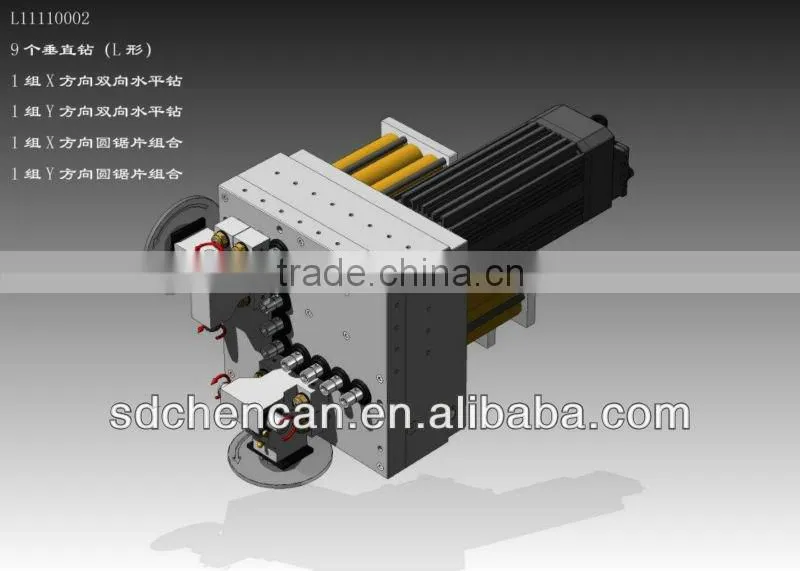

9 vertical and 4 horizontal drills and one saw to cuting and drilling
X and Y axes adopt rack and pinion transmission, faster working, higher efficiency and low cost. Z axis adopts Germany-made ball-screw and Taiwan Hiwin H30 square orbit, with high precision and longevity.

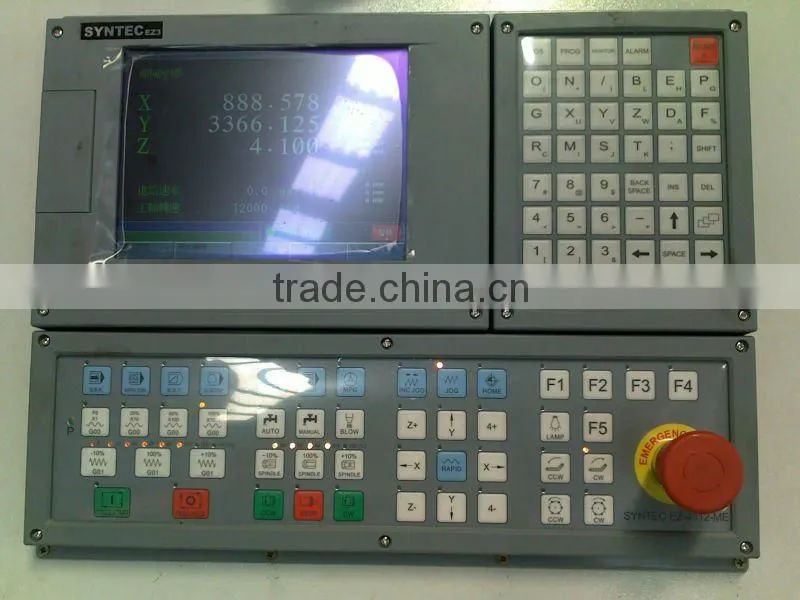

Taiwan syntec control system with separate keyboard and color LCD screen makes the operation easier, and the auto tool change system makes the operation safer and convenient.

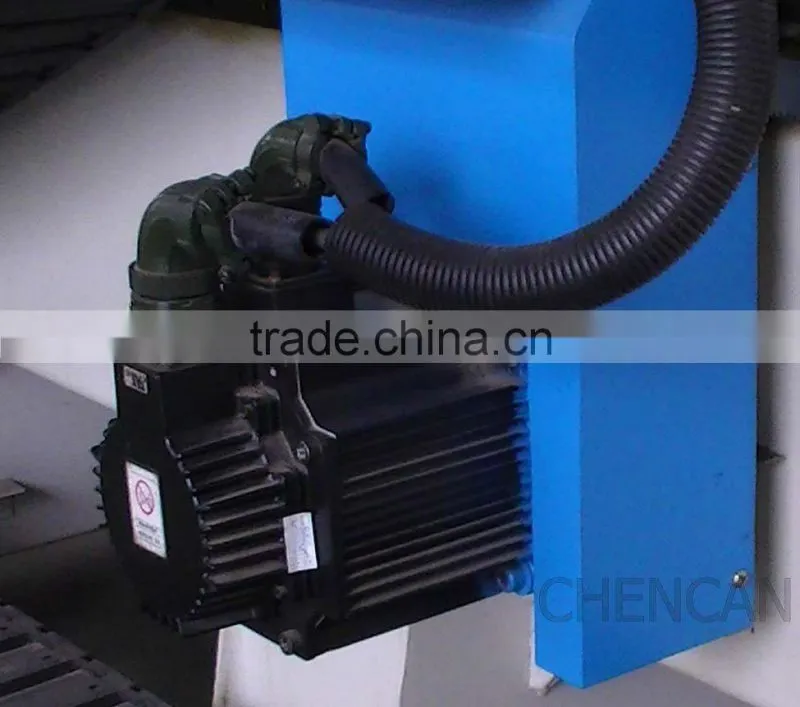

Japan-made YASKAWA servo motor and driver, greater accuracy and stability.

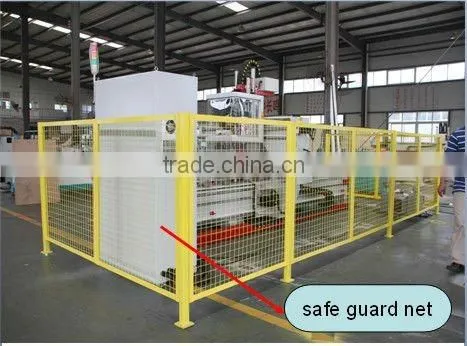

safe guard net
Packing: Standard Plywood box for Export
paramaters of cnc router
Description |
Parameter |
X,Y Working Area |
1300*3500mm |
Z Working Area |
250mm |
Table Size |
1440*4140mm |
Resolution |
0.01mm |
Lathe Structure |
Seamless welded steel structure, better than cast iron one |
X,Y Structure |
Rack and pinion, gear drive, Taiwan Hiwin H30 square guide rails |
Z Structure |
Germany-made rolling ball screw, Taiwan Hiwin H30 square guide rails |
Max. Idling Speed |
70m/min |
Spindle |
Italy HSD air-cooling 9 KW |
Spindle Speed |
24000r/min, variable speed |
Working Voltage |
AC380V/50Hz |
Motor and driver |
Japan-made YASKAWA |
Working Mode |
Servo |
Command |
G code,HPGL,U00,mmg,plt |
Operating System |
Taiwan Syntec control system |
Diameter of Cutter |
φ3.175-φ12.7 |
Dust-collect Function |
Yes |
Working table |
Vacuum Table |
Tool Magazine |
.Circle –style auto-tool changer system with 8 pieces of tools |
Circular saw blade with drilling |
Italy combination drill(13bits+1 saw blade) |
Net Weight |
3000KG |
Please contact:
We pay attention to any detail of our Every set CNC Router Machine,
We provide the best Abroad Service for Every Customer !
