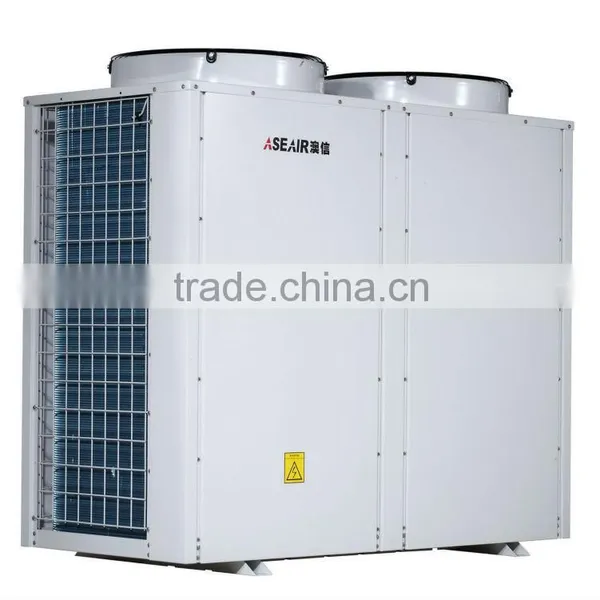

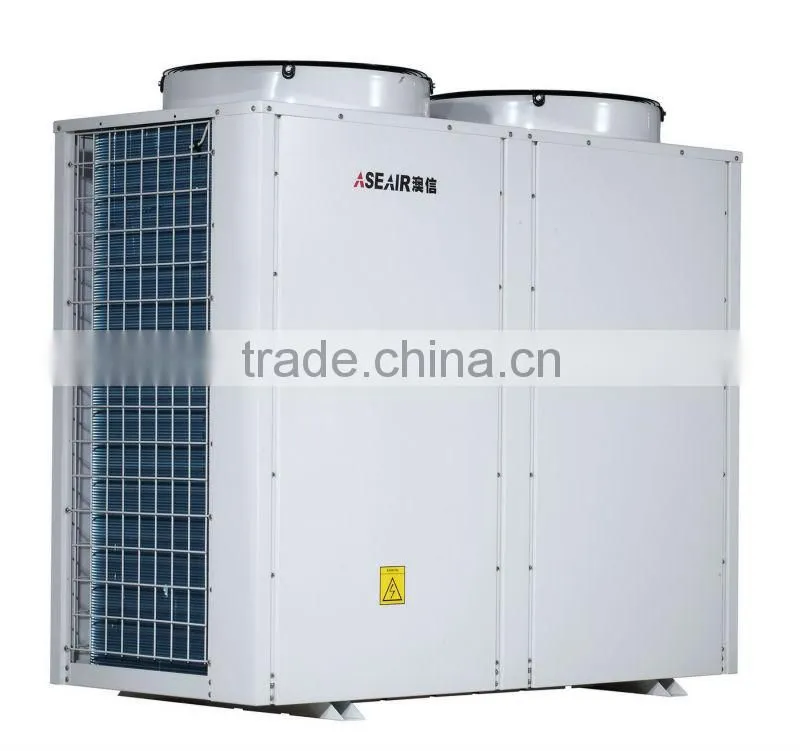

US Copeland R134a high temperature EVI heat pump air to water
Aseair High temperatrue air source heat pump provide max 75 degree hot water.
Widely used on clothes dryer, food dryer ect with more than 2 years experience.
Internationl famous components, US Copeland EVI compressor with eco-friendly R134A refrigreant to keep high effieient and working stable.
Parameters
| model | AWH-030UYA/G | AWH-055UYA/G | |
| rated heating capacity | kw | 27 | 52 |
| rated heating power input | kw | 9.3 | 17.9 |
| COP | w/w | 2.9 | 2.9 |
| ambient temp range | °C | -7°C to 43°C | |
| max operation current | A | 24.7 | 47.6 |
| power supply | 380V 3ph 50Hz | ||
| refrigerant | R134a | R134a | |
| refrigerant charge | kg | 3.5×2 | 7.5×2 |
| compressor | EVI scroll | EVI scroll | |
| max output water temp | °C | 75°C | 75°C |
| gas-water heat exchanger | shell-tube | shell-tube | |
| water flow | m3/h | 4.6 | 8.9 |
| ventilation | vertical | vertical | |
| noise level | 65 | 69 | |
| connection pipe size | inch | 1.5 | 2 |
| dimension | |||
| width | mm | 1500 | 2100 |
| depth | mm | 690 | 1100 |
| height | mm | 1070 | 2000 |
| unit weight | kg | 320 | 700 |
| test condition: ambient dry bulb 20°C, wet bulb 15°C, inlet water temperature 65°C, | |||
| outlet water temperature 70°C. | |||
EVI High Temperature Heat Pump
Aseair EVI High Temperature Heat Pump Water Heater utilizes cutting edge scroll EVI technology on compressor with R134a Eco-friendly refrigerant and enables output water temperature to reach maximum 75°C without electric heating element .
75°C HIGH TEMPERATURE WITH BEST EFFICIENCY
Thanks to the extended operation range of EVI compressor and the characteristic of R134a refrigerant, the heat pump delivers maximum 75°C hot water in purpose of anti-legionella for sanitary hot water or other special demand of high temperature hot water.
SATISFY SPECIAL DEMAND ON HIGH TEMPERATURE WATER
The heat pump built in copper heat exchanger for ordinary heating purpose of sanitary hot water heating or house heating with radiator, and optional titanium heat exchanger for special purpose of industrial cleaning treatment.
MORE ECONOMIC HEATING SOLUTION
The EVI High Temperature Heat Pump will replace the pollutive boiler directly or take part in the water heating system together with boiler for primary heating device so that to reduce energy consumption of the whole system.
Quality control:
Every heat pump with four times detection of performance and protection in the FQC Central.
Every orders with the comprehensive detection from random inspection in the LAB.
1.Material Quality Control
2.Process Quality Control
3.Mass Products Quality Control
4.Outcoming Quality Control
5.Ready For Delivery

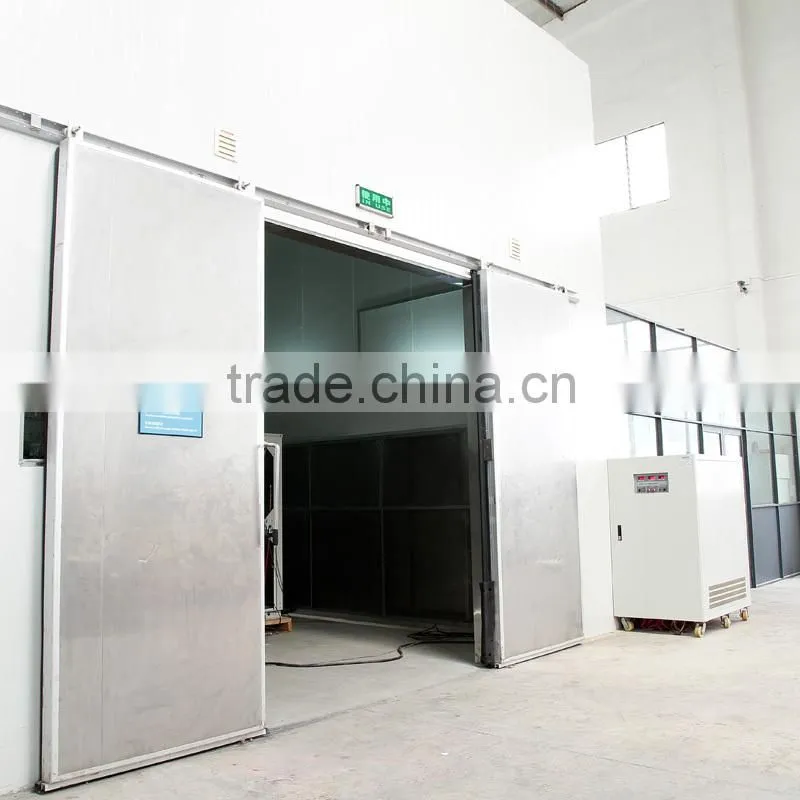

LAB
FQC Central
Why Aseair?
1.Over 18 years experience in heat pump system industry.
2.Customers favorite top 10 heat pump brand in China
3.The strategic partner of US Emerson and Denmark Grundfos.
4.Frequent exchange experience with European heat pump suppliers and distributors, constantly improve ourselves.
5.We choose the international famous heat pump components suppliers, to keep our heat pump high quality, high efficient and running stable all the years, all weather.
6.We are the reputable manufacturer, our products with reasonable factory price.
7.Provide not only products but also best solutions.
About us:
1.In 1996, we were called as Aoke and supplied the central air-conditioning. In 1998, we started to specialized on the field of heat pump. Later, we got more and more stronger, in 2008, Aseair was established and keep growing fast so far.
2.We are famous for our heating system, which in the leading position in China.
3.Our 12 engineers ready to make the solutions for you.
4.Under Aseair,we have three subsidiaries, Shandong Production Base, Shandong Heat Energy Engineering, Foshan Ghangcheng Air-conditioner Engineering.
5.Certification: SGS, CCC, ISO9001, ISO14001,OHSAS18001
Customization:
Refrigerant : R407C/R404A/R410A/R134A. Optional
Metal sheet: stainless steel#304, #316, galvanized sheet
Quality
We Aseair the first mission is to bring the stable warm to people all the years. Therefore we adopt the international famous components. With the high performance, COP up to 3 average in all around the year. Design for operating stable more than 12 years. Choose Aseair, the meaning of choosing high experience.
China heat pump engineering case1
.
China heat pump engineering case2
1.Plywood Pallets with crate to protect heat pump during transportation
2.Bottom fixed with screws to make sure delivery stablility.
3.T/T Payment.
