Paraffin Wax Granulator Making Machine / Chemical granulation machine
Working principle of paraffin Wax Granulator Making Machine / Chemical granulation machine
Rotary belt condensation granulator is using low melting point characteristic of the material (50 ℃ to 300 ℃)

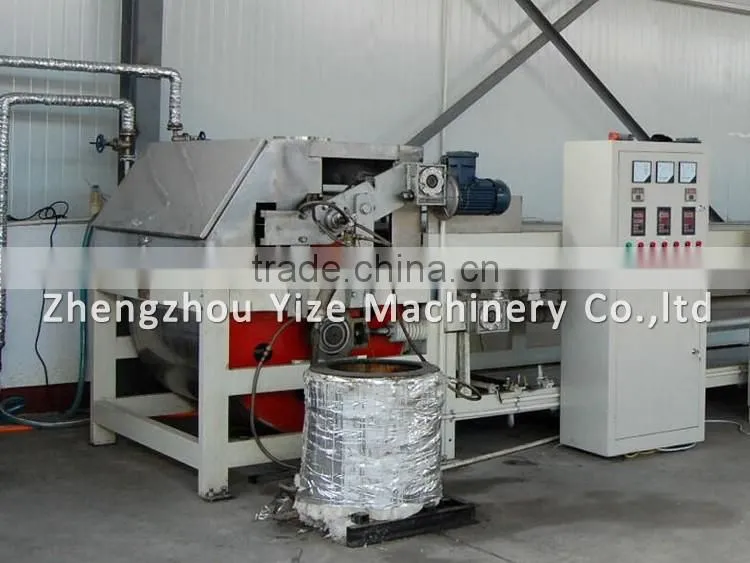

Molten material through the special distributing device . Then distributing it on moving steel belt . Use the cooling device which at the bottom of steel belt . Then make the material condensation , solidification . granulation
Feature
1. Granulator size can be choose between 4mm -12mm . Shapes can make granule, strip and flake
2.Equipment adopts frequency control, can choose a suitable speed according to the nature of the material
3.Product uniform particles, and beautiful, forming rate above 95%
4.Widely used van, melting point of material between 50 ℃ to 300 ℃, all can granulation forming, toxic materials can be closed.
Use scope
Sulfur, paraffin wax, petroleum resin, alcali sulphide, C5, C9 resin, resin C5C9 polymer resin; Asphalt, maleic anhydride, stearic acid, hot melt adhesive, rubber and plastic additives, antioxidant, antiager, all kinds of additives, etc
Technical parameters of paraffin Wax Granulator Making Machine / Chemical granulation machine
Model |
Steel belt width (mm) |
Steel belt /distributing device Power (kw) |
Total length(m) |
Capacity (kg/h) |
YZCF1000-5 |
1000 |
3.3/2.2 |
18.2 |
200-800 |
YZCF1200-5 |
1200 |
4/2.2 |
18.2 |
300-1000 |
YZCF1500-5 |
1500 |
5.5/2.2 |
18.2 |
500-1200 |
Packing :
We send the machine picture which you order . then packing it with standard export wooden box after you confirm machine is ok .
Different machines package will different . we supply standard export wooden box ,carton box package . if big machine and production line machine it will be loaded in the container directly .
Delivery :
1.Delivery by sea :After delivery it to seaport . will tell you the shipping time and addrive time . Finally , send all origin documents to you by Express for free .
2.Delivery by Express to your door (DHL/TNT/Fedex/UPS etc ) or by air to your city airport .Will tell you the Express tracking number
3.Delivery to the warehouse which you reques . Will tell you
logistic or express tracking number
Service before sale
Insist on quality first the production standard, every machine before leave the factory we test it ensure the quality is good.
Service on sale
We are confident that we sell our machines to customers at low prices and activated. Professionally
and patiently introduction
pictures and video to show machine
1, Free insurance for goods
2, 24 hours online to solve any
questions.Supply manual book
and technical support,maintain
video to help you.
Questions/Answer |
1,What is the voltage/phase for this machine ? |
|
220V 50Hz/single phase ,380V 50Hz/three phase , 110V 60Hz/single phase also can made as the clients’ need |
2,What is the Mode of transportation ? |
LCL and FCL by ship ,By Express (DHL,TNT, Fedex etc) ,By air |
3,How long can we get the goods? |
we usually delivery in 3-5 working days, we will inform you shipping time based on your seaport. |
4,How long is the guarantee? |
we promise guarantee as one year for non-human damage factor. |
5,How should I do if meet some trouble while using? |
|
we can supply English manual book and also take a video for showing how to resolve the problems or dispatch our worker to your factory. |
6,What about Payment term? |
|
T/T(Telegraphic Transfer )-30% as prepayment by T/T, after seen the copy of the B/L sent by fax, the balance of 70% should be effected . Western Union ,L/C ,Trade Assurance,Etc. |
7,What’s your MOQ |
1 set |
8, How can i contact with you ? |
|
You can send inquiry to me . Aslo can contact with me by Cellphone/Wechat / Whatsapp /Viber: +86 15890126501 Skype: candy-yize,QQ: 2033530360 |
Zhengzhou Yize Machinery CO.,Ltd’s factory was built in 2008, its exporting company was
assessed gold supplier in 2015 by alibaba. It is specialized in the production of Chemica machinery,
We will supply 100% QC inspection before shipment and 100% guaranteed after sales service.
Top quality machinery is waiting for your choose.
