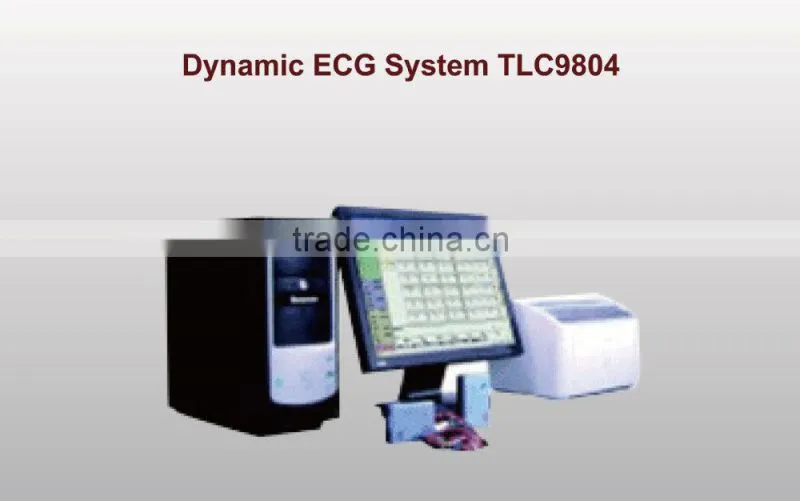

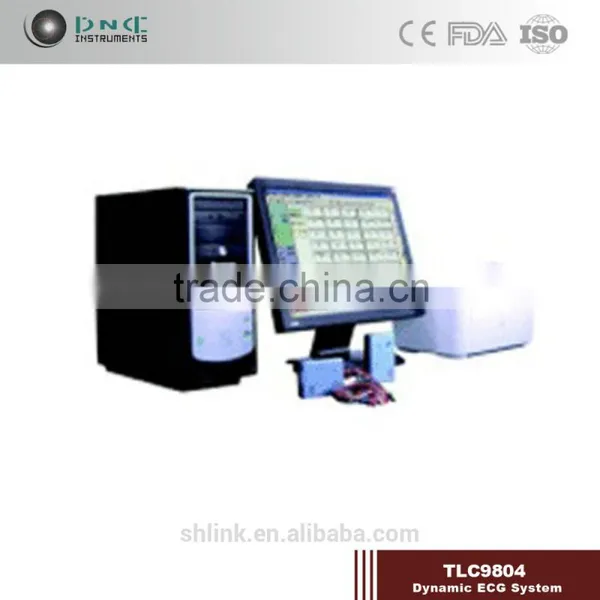

Dynamic ECG System TLC9804
Recorder Features
• With advanced design and technology, the recorder can work stably, dependable and durable.
• Be provided with the capability of anti-jamming and shock-pro.
• Small volume, light weight, low power consuming, convenient to take..
• Reading and writing can be more faster and memory can be larger by using flash to storage data.
• Record waveform details inextenso by the design of high precision and sampling frequency.
The features of software
• Quick and accurate analysis system.
• With 4 leads synchro analysis , QRS search can be more exactly.
• There are more than 10 templates as atrial premature beat module, ventricular premature beat module, long interval module, atrial flutter module, atrial fibrillation module etc. and multiplicate User-defined templates could almost identify every kind of pathologic waveforms.
• Optional main channel.
• Agile and exact "Atrial Fibrillation" analysis.
• The function of pacing analysis could analyse all pacemakers.
• Many pacine modules have been added.
• Any period of single lead or 4-leads ECG can be reviewed at any time with the function of fast waveform review and analysis.
• The types of the analysis system of HR variability include five minutes of short ECG and one hour or 24-hour of long ECG.
• Print report expediently.
• Perfect function of case management.
•With the function of ST segment analysis and general load of the disorder of the heart muscle, the physician can judge a disease or disorder of the heart muscle generally.
•Advanced original creation of screen waveform antijamming technology is adopted, which makes the screen waveform much more precise, the details of cardiograph much more extrude.
• It can avoid repeat operations and simple analysis process by adopting "Step by Step".
• Friendly interface, simple structure, convenient operations.
Standard
Numberof channels: 4 channels;
Sampling rate:10000Hz;
Sampling accuracy:12 bit;
Recording time : 24 h;
Power: 2 batteries in size 5;
Interface: USB1.1;
Scale voltage: 1mV±5%;
Standard Sensitivity:10mm/mV±5%;
Noise level:≤30μV;
CMRR:≥60dB;
Feathers of low frequency : Time constant>3.2s;
Scan speed:25mm/s±5%;
Enduring polarization voltage:±300mV;
Least measure signal : 50 µV p-p;
Product safety type : Type B (Internally powered).
