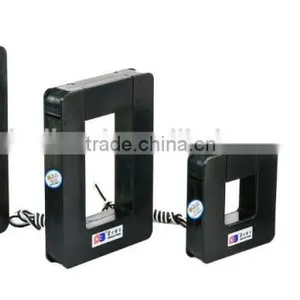

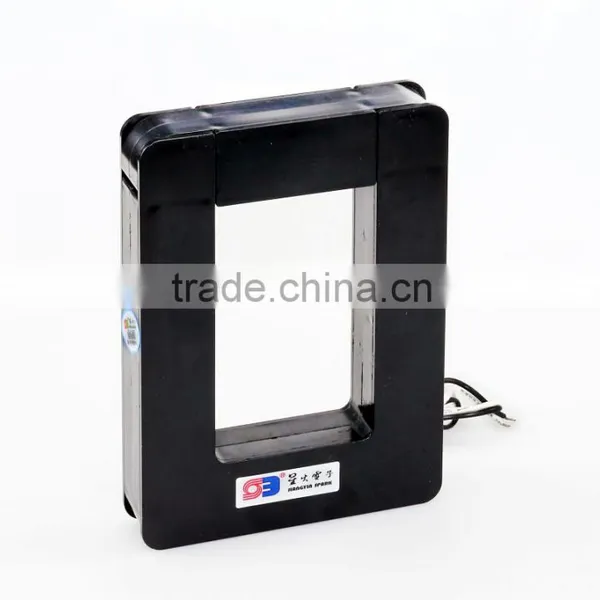

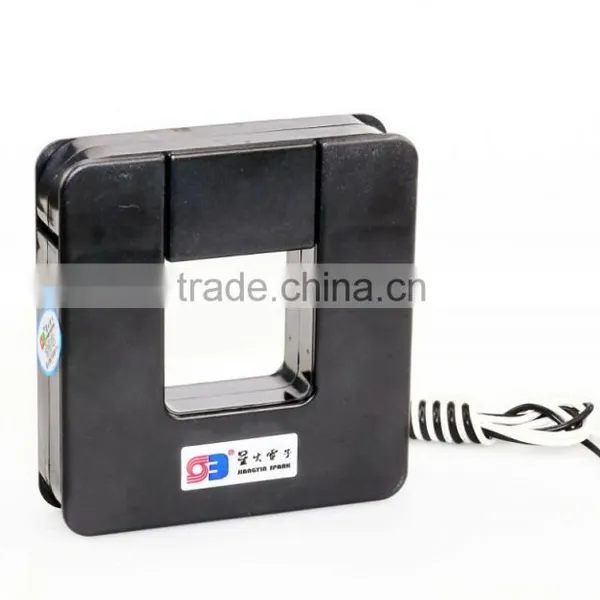

Help CenterSCT-019 0.75" Window Size Single Phase Mini Split Core Current Transformer 333mV Secondary
Related Products
-
0-80A Input 1:3000 Split Core Current Transformer SCT-010US$ 1 - 8MOQ: 10 Pieces -
CE Energy Monitoring Current Clamp 100a 100 ma Split Core Current TransducerUS$ 2.5 - 39MOQ: 10 Pieces
-
300/5A 400/5A 500/5A 60/5A CE Certificated Electric Split Core Current Transformer ManufacturerUS$ 1 - 20MOQ: 100 Pieces
-
20A/40mV 40A/40mV 200A/40mV Current TransformerUS$ 1 - 8MOQ: 100 Pieces
-
CE Energy Monitoring Current Clamp 100a 50 ma Split Core Current TransducerUS$ 2.5 - 39MOQ: 10 Pieces
Split core current transformer with high quality and CE UL certification
Split Core Current Transformer SCT 333mV Secondary Output

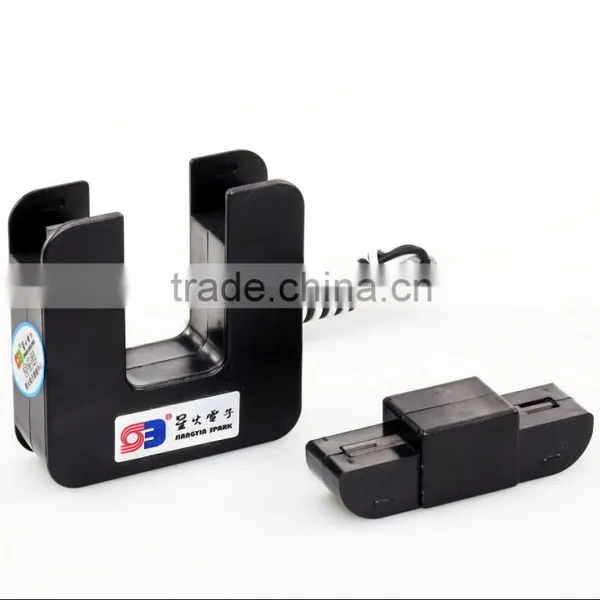

The JIANGYIN SPARK series of split core current transformer are designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.This method permits a safer,easy and portable current measurement. An internal precision burden resistor across the secondary winding of the CT provides a safe low voltage output and permits safe opening of the secondary
Features
Low cost.
Split core design;safer,easier installation,portable.
Specifications
Rated Current 5A to 150A loads.
Rated output: 0.333Vac
Accuracy:±1% from 5% to 120% of rated current
Phase Angle: less than 2 degrees at 50% of rated current
Insulation Voltage:600Vac
Maximum Primary Voltage:5000Vac(Insulated Conductor)
Operating Temperature:-15°Cto 60°C.
Frequency Range:50-400Hz
Leads:4Foot(105cm),UL 1015,Twisted Pair,0.34 mm2(22AWG)
UL&CE,ETL recognized. RoHS Compliant
Output and leads can be customized
Application
Measures AC current flow to electric motors, lighting, air conditioning equipment, etc.Compatible with HVAC temperature control, power management,building automation systems.

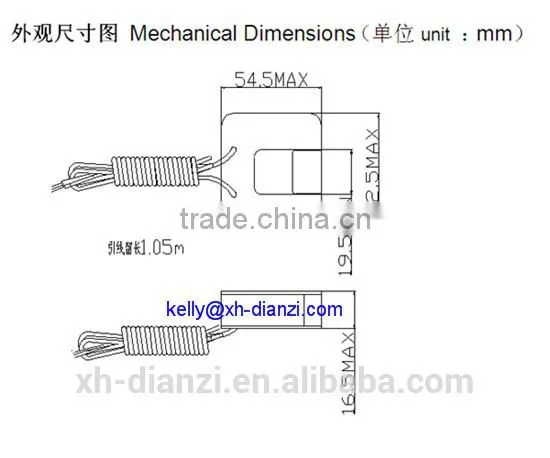

Drawing size
Strong items
Certifications
Transportation
