Cable Manufacturer GYTA53 33 Stranded Cable Loose Tube Submarine Optical Fiber Cable
Description
Cable Manufacturer GYTA53 33 Stranded Cable Loose Tube Submarine Optical Fiber Cable
Product name |
GYTA53/33 |
Introduction |

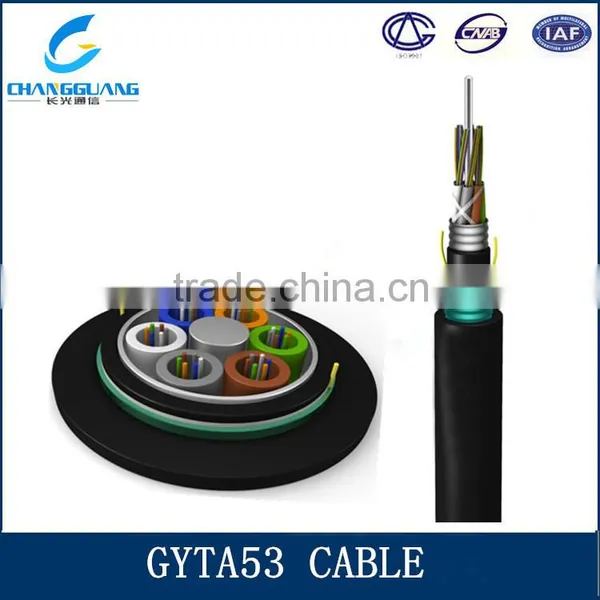

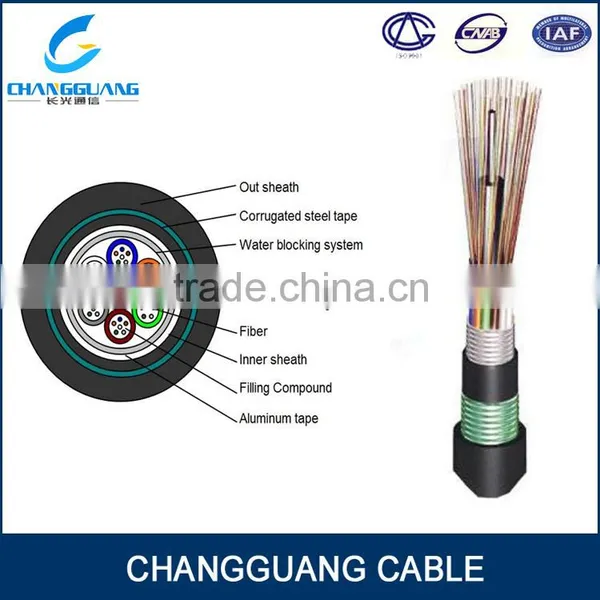

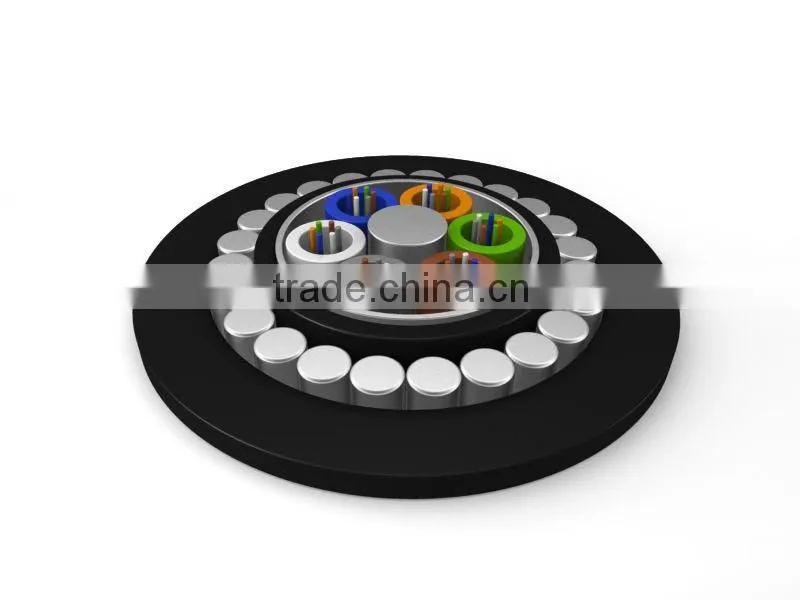

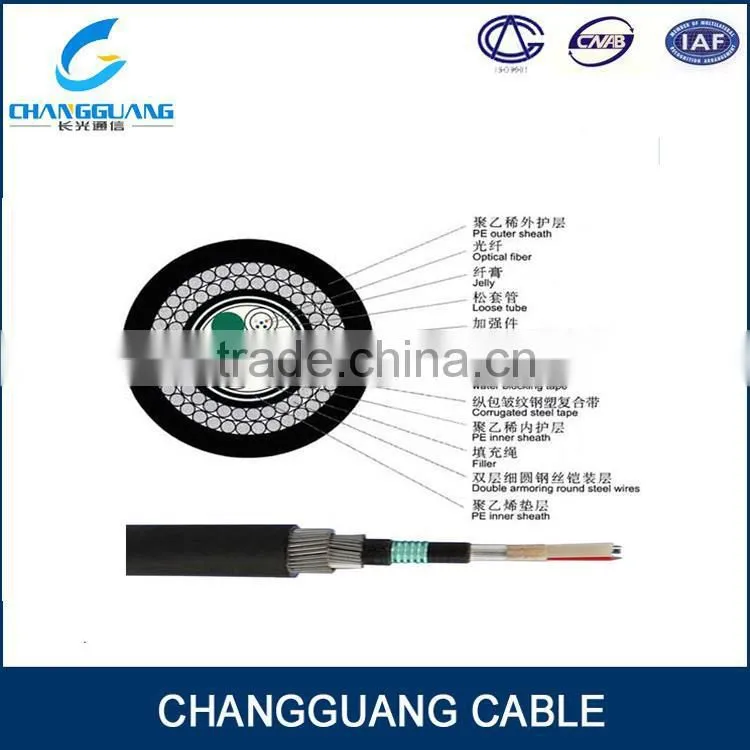

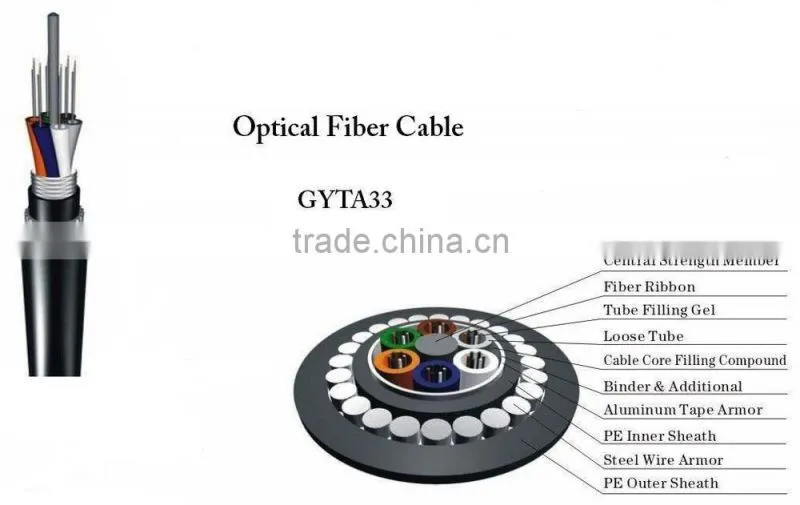

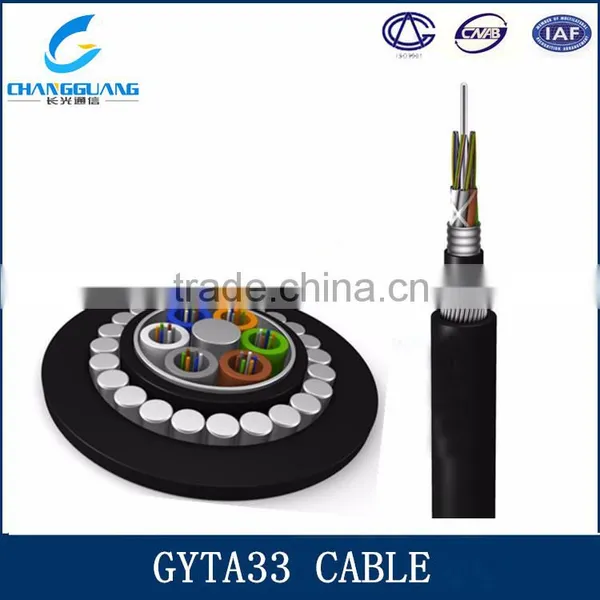

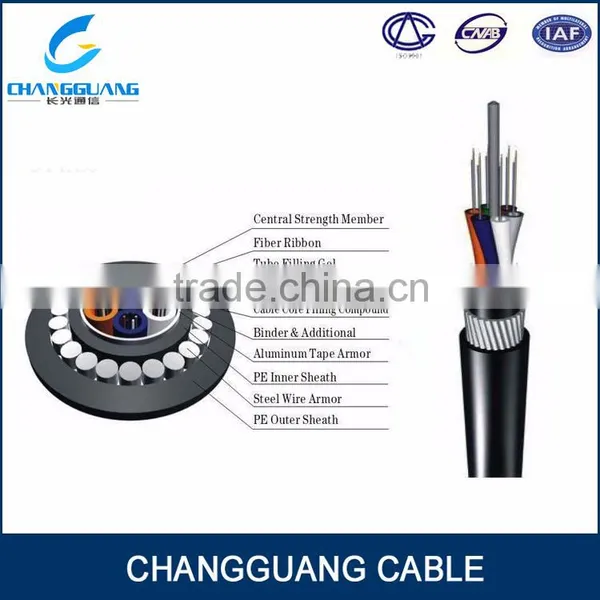

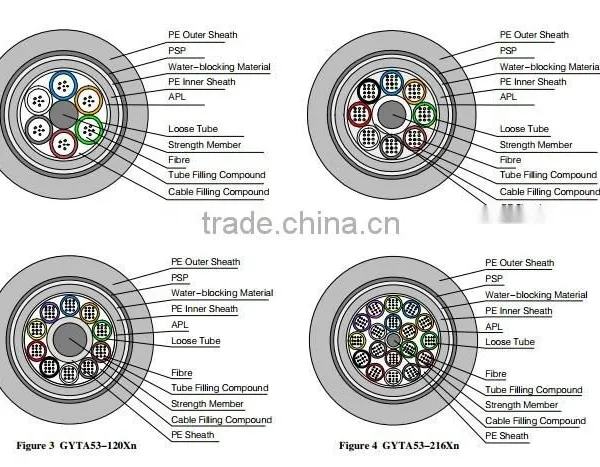

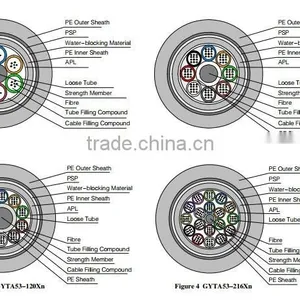

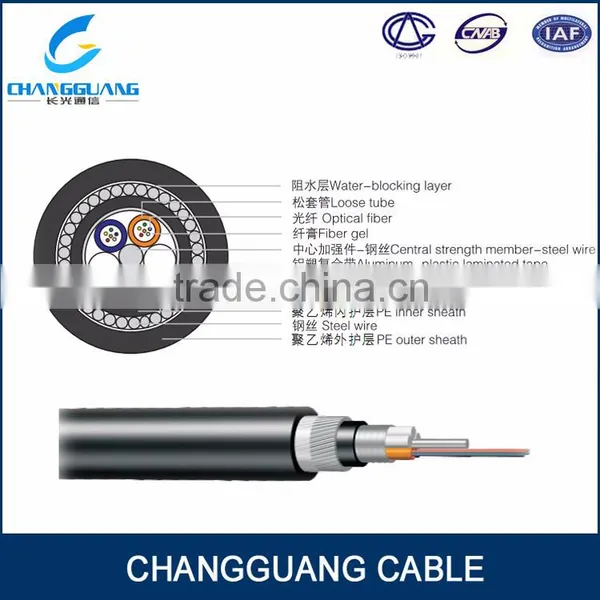

The fibres,250μm,are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a water-resistant filling compound.A steel wire,sometimes sheathed with polyethylene(PE) for cable with high fiber count,locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core,which is filled with the filling compound to protect it from water ingress,then,the cable core is completed with a PE sheath. After the PSP is longitudinally applied over the inner sheath,the cable is completed with a PE outer sheath. |
Characteristics |
Good mechanical and temperature performance |
|
High strength loose tube that is hydrolysis resistant |
|
Special tube filling compound ensure a critical protection of fiber |
|
Crush resistance and flexibility |
|
The following measures are taken to ensure the cable watertight: |
|
Loose tube filling compound |
|
100% cable core filling |
|
PSP enhancing moisture-proof |
|
APL moisture barrier |
|
Water-blocking material |
|
Steel wire used as the central strength member |
Application |
Duct |
|
Aerial |
|
Direct burided |
Standards |
Complies with standard YD/T 901-2009 as well as IEC 60794-1. |
Advantage
1. Underwater gyta53/33 submarine fiber optic cable
2. Good moisture-resistance
3. self-supporting type
4. Fast delivery time
Cable Features
- Good mechanical and temperature performance
- High strength loose tube that is hydrolysis resistant
- Special tube filling compound ensure a critical protection of fiber
- Crush resistance and flexibility
- Steel wire used as the central strength member
- Loose tube filling compound
- 100% cable core filling
- APL moisture barrier
- PSP enhancing moisture-proof
- Water-blocking material
Application
The special Cable Construction especially suitable for underwater/submarine installations

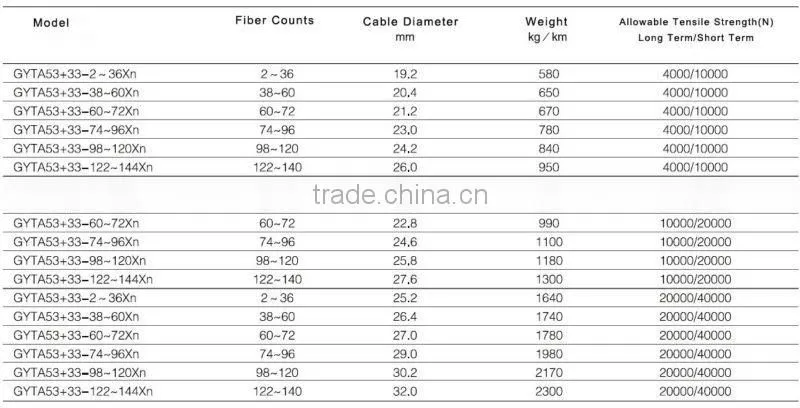

Cable Parameter
| Optical Characteristics: | ||||
| Fiber Sort | Multimode | G.651 | A1a:50/125 | Graded-index fiber |
| A1b:62.5/125 | ||||
| Singlemode | G.652(A,B,C) | B1.1:Conventional fiber | ||
| G.652D | B2: Zero dispersion shifted | |||
| G.655 | B1.2 :Cut-off wavelength shifted | |||
| G.657(A1,A2 ,B3) | B4: Main technical data for positive | |||
| dispersion shifted single-mode fiber | ||||
Fiber Color

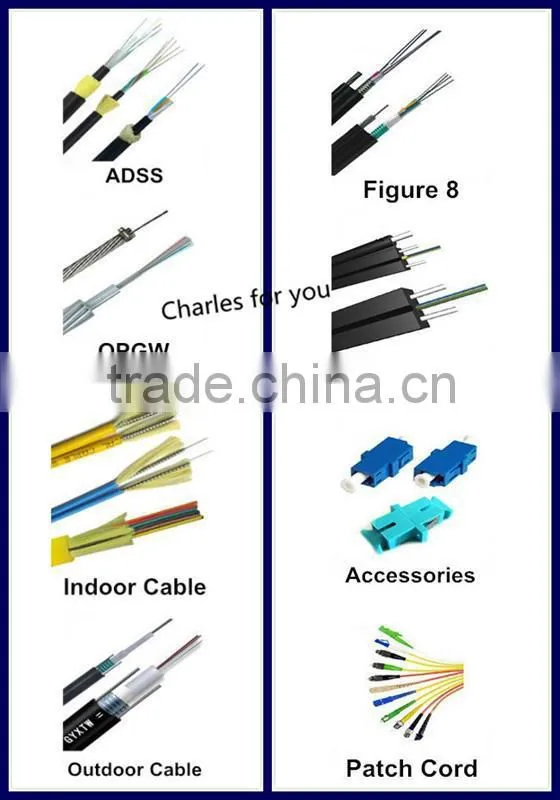

Main products:
Company Information
Changguang Communication Technology Jiangsu Co.,Ltd is
the professional enterprise on fiber optical cable at widely range of outdoor fiber optic / aerial fiber optic cable / duct fiber optic cable /directly buried fiber optical cable /Adss and OPGW for power system transmmision.

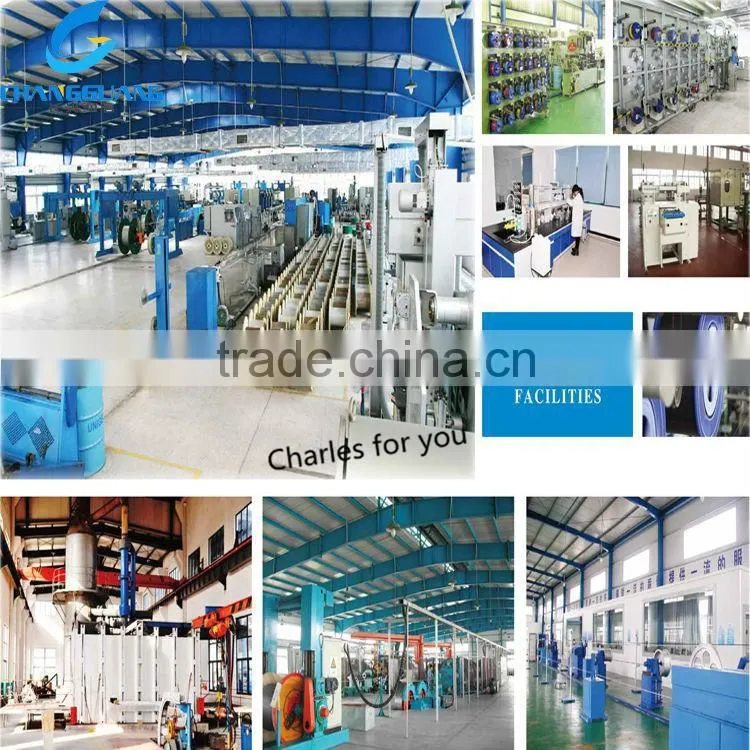

Brief View of Our Factory

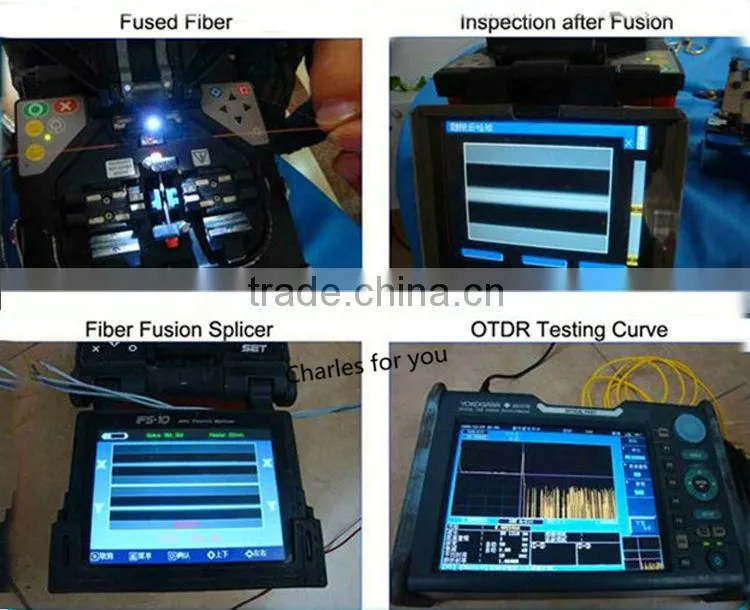

Fiber Optic Cable Testing
Mechanical testing of Optical Fiber Cables is done to determine the quality of the Optical Fiber Cable, mechanical characteristics can be tested on testing machine for the particular test.
FAQ
1. Shipping: Generally by sea or air due to heavy weight. Samples will be send by DHL, FedEx . etc
2. Payment: We accept T/T, L/C and Western Union, just choose what you like
3. Delivery time : Generally 3~7 working days upon receipt deposit. According to the quantity.
4. MOQ: Generally our MOQ is 1000meters. samples below 1meter can be provided freely.
Packaging & Shipping

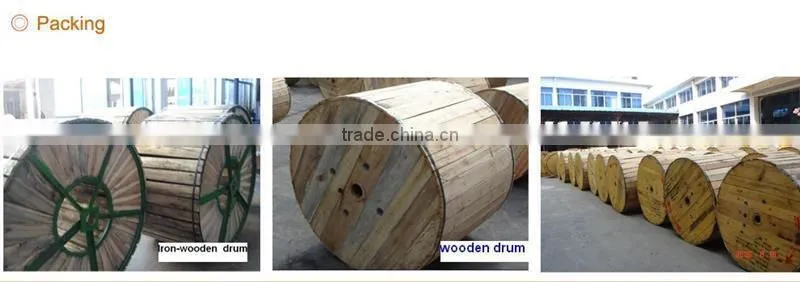

1. Standard Packaging:
Rolled by wooden wooden drums. 2000m to 6000m/drum or other required.
2. Sheath mark
The following printing(white hot foil indentation )is applied at 1-meter intervals.
a. Supplier: Guanglian or as customer required
b. Standard Code(Product Type, Fiber Type, Fiber Count)
c. Year of manufacture: xxx
d. Length marking in meters .
Quote Request Information
1. Fiber Count: 2 to 144 Fibers
2. Span length: 50meter to 800meters is available
3. Fiber type: Various kind of Single mode or multi mode is available
4. Line Voltage: 10kV, 35kV, 110kV or 220kV
5. Order Quantity
Our Services
♦ We are the one of biggest manufacture of fiber optic cable in China and has more than 10 years manufacturing and selling experience.
♦ We accept OEM. The cable size and material are customized.Ur own logo and
own design are welcome. We will produce according to your requirment and description;
♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.
Pls Kindly Don't Hesitate to Contact Me !
