Stranded loose tube armored cable outdoor GYTA/S audio video cable
The properties of audio video cable

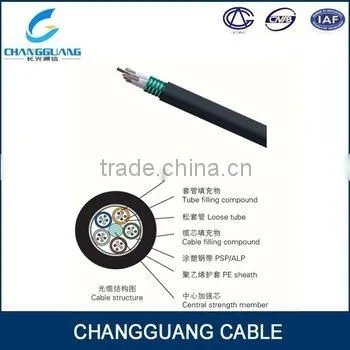

The fibres,250μm,are positioned in a loose tube made of a high modulus plastic.
The tubes are filled with a waterresistant filling compound.A steel wire,sometimes sheathed with polyethylene(PE) for cable with high fiber count,locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core,which is filled with the filling compound to protect it from water ingress,then,the cable is completed with a PE sheath.
1.All types of fiber cables with different structures
2.High performance optical network operating
3.High speed optical routes in buildings(FTTX)

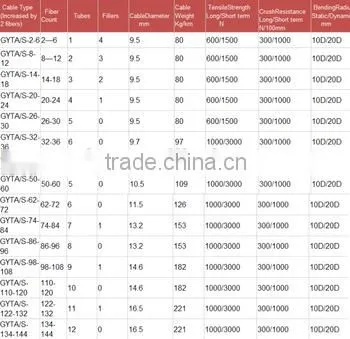

Technical Parameter:
Cable Type |
Fiber Count |
Cable Size mm |
Cable Weight |
Tensile Strength |
Crush Resistance |
Bending Radius |
GJXFHA-1 |
1 |
|
47 |
30/60 |
300/1000 |
15/30 |
GJXFHA-2 |
2 |
|
47 |
30/60 |
300/1000 |
15/30 |
Feature
1.Good mechanical and temperature performance
2.High strength loose tube that is hydrolysis resistant
3.Specially designed compact structure is good at preventing loose tubes from shrinking
4.Special tube filling compound ensure a critical protection of fiber
5.PE sheath protects cable from ultraviolet radiation
6.The following measures are taken to ensure the cable watertight:
Steel wire used as the central strength member
Loose tube filling compound
100% cable core filling
APL moisture barrier
Note:
1.Cables can be supplied with a range of single mode or multimode fibers.
2.The dimensions and raw meterials can be designed according to the demand of the customers.
3.Standard Reel Length: 2000m/reel ; other lengths available

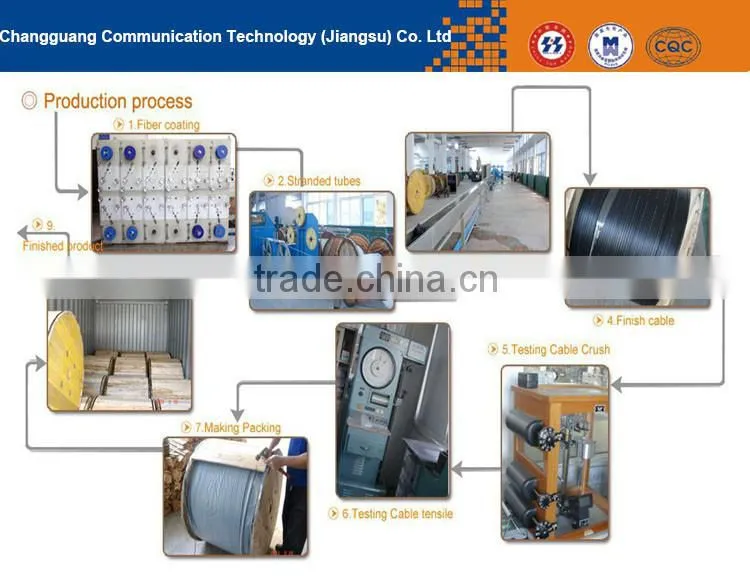

Production process
Application
Duct or Aerial

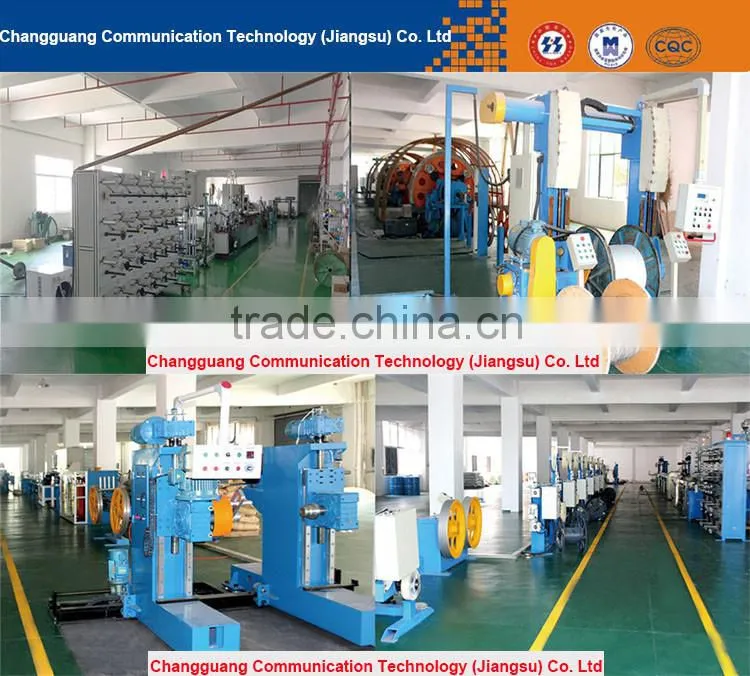

Workshop and equipment
Certification

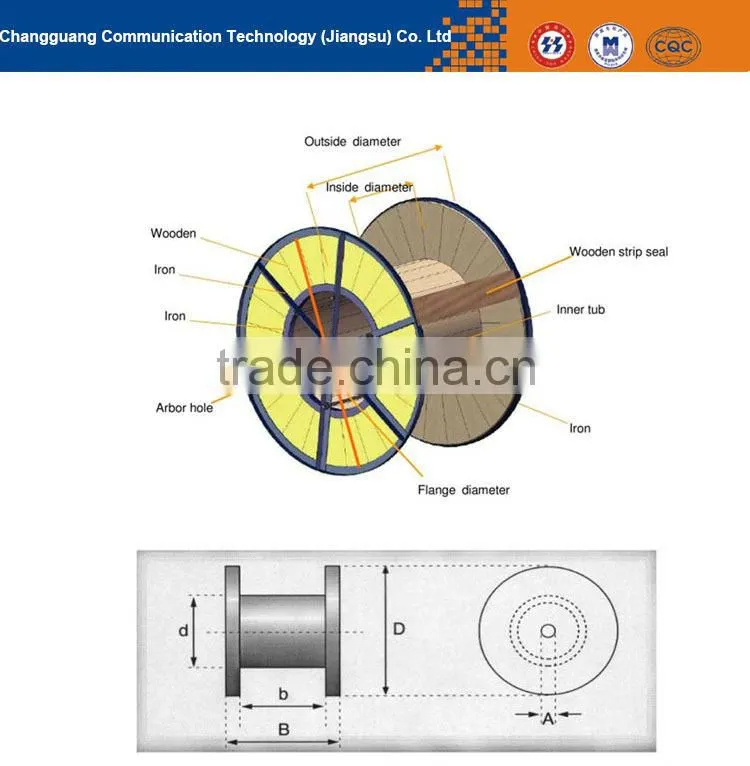

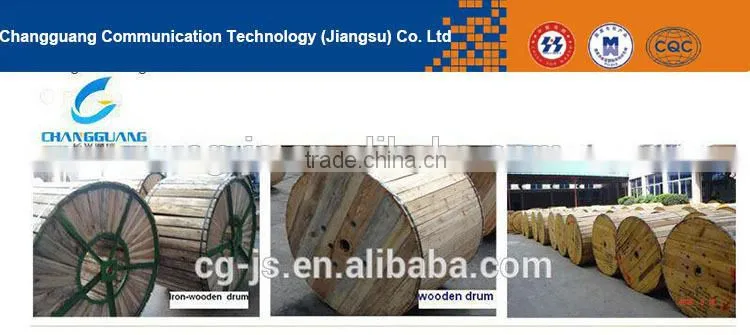

Package
FAQ
| Question | Answer |
| 1.What's your MOQ ? |
Michael: our MOQ just 1KM. If you have different or special demands , welcomer here, we will try to provide the best solution to you. |
| 2. What's certificates do you have? |
Michael : At now, we has ISO9002, RoHS, ULE329066, SGS, CE, REACH certificates. We are confident about our cable quality, if you need, we can provide free sample to you test. |
| 3. Does your company is a manufacturer or trading company? |
Michael: We are absolutely manufacturer, our factory in Suqian Jiangsu province. Warmly welcome to visit our factory! |
| 4. How about your delivery time? |
Michael: We can delivery cable very fast, take an order and produce has a high efficient in KST. The actual manufacturing time according to the cable quantity. |
| 5. How to shipping? |
Michael: For the sample or light cable (less than 45KG), the best choice is by Express. Few drums not very heavy(more than 45KG to 100KG), by air is the best choice. For the heavy cable, the best choice is shipping By Sea. Because it's too expensive by air . |
| 6. Can you help to calculate the freight cost? | Michael: of course, we can provide the cheapest shipping cost to you or send our freight forwarder informaitons to you contact directly. If you have freight forwarder, they can handle shipping for you. |
| 7. How to know recycle and new jacket materials? |
Michael: Except for fiber price , the jacket materials is the main factors affecting price . Some supplier price is crazy , because they use recycle materials in production. How to make out ?
Recycle material : The jacket will have bubble , especially tenacity is very bad , it's easy to tear . So the cable lifetime is short , and fire retardant, cold resistance is very bad . New material : Tenacity is very good , it's hard to tear . And with good fire retardant, cold resistance .
|
| 8. Can you make OEM? |
Michael: Of course, it's our main business. Cable Marking/Printing : It can be marking your brand or any printing that you need , except for international famous brand. |
| 9.Can you testing the cable and provide the testing report? |
Michael: Of course, we have a independent testing lab, can testing most of FO cable and fiber performance. Testing report can be provided to you or pasted on the every cable drum. |
