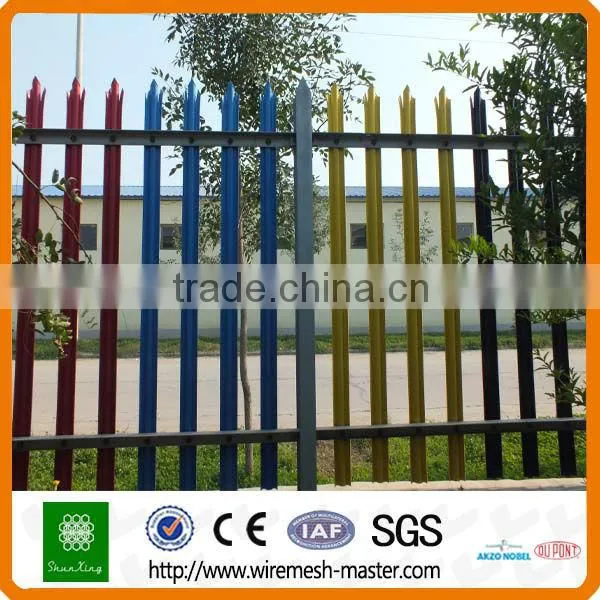

Galvanized Steel Palisade Fencing

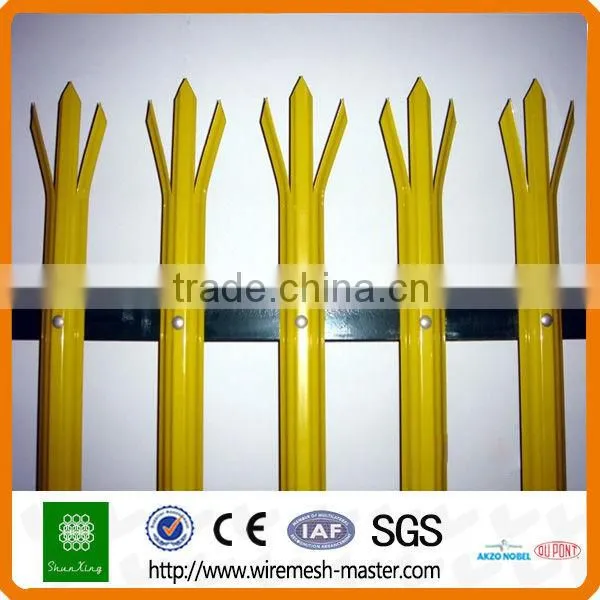

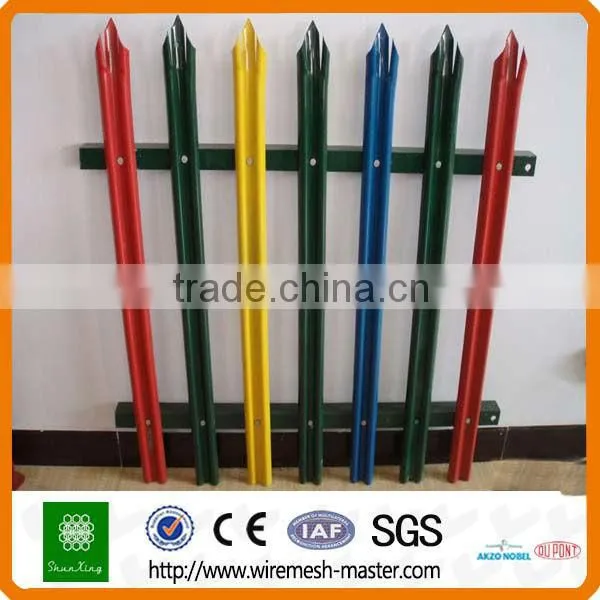

The forbidding appearance and inherent strength of the pales provide an effective deterrent to would be intruders. It is available in a choice of head styles, both in the traditional 'D' pale profile, and 'W' section pale for added security.
Speciation of Galvanized Steel Palisade Fencing
Height |
Post Dimensions |
Rail Dimensions |
Support Legs |
Corrugated Steel Palisades |
1.2m |
102x44 or 100x55 |
40x40x6mm |
1 |
W - 2.0mm or D - 3.0mm |
1.5m |
102x44 or 100x55 |
40x40x6mm |
1 |
W - 2.0mm or D - 3.0mm |
1.8m |
102x44 or 100x55 |
40x40x6mm |
1 |
W - 2.0mm or D - 3.0mm |
2.0m |
102x44 or 100x55 |
45x45x6mm |
1 |
W - 2.0mm or D - 3.0mm |
2.1m |
102x44 or 100x55 |
45x45x6mm |
1 |
W - 2.0mm or D - 3.0mm |
2.4m |
102x44 or 100x55 |
45x45x6mm |
1 |
W - 2.0mm or D - 3.0mm |
2.7m |
102x44 or 100x55 |
50x50x6mm |
1 |
W - 2.0mm or D - 3.0mm |
3.0m |
127x76 |
50x50x6mm |
2 |
W - 2.5mm or D - 3.5mm |
3.6m |
127x76 |
50x50x6mm |
2 |
W - 2.5mm or D - 3.5mm |

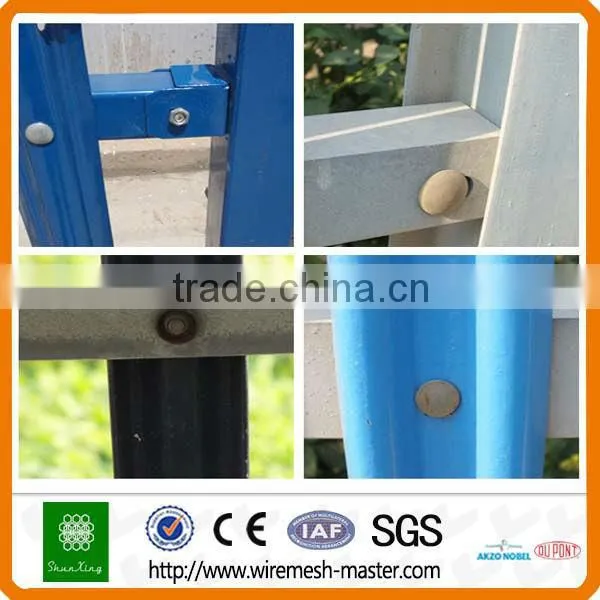

Connections of Galvanized Steel Palisade Fencing
Pale: 60mm wide x 2mm thickness x 2.4m high
Post: 50mm x 50mm x 1.6mm thickness x 2.95m high
Rail: 50mm x 50mm x 4.0mm thickness x 2.5m length (from post center to center)
Bolt: M8 and M12.
Finish: Galvanized with PVC coating.
Application of Galvanized Steel Palisade Fencing

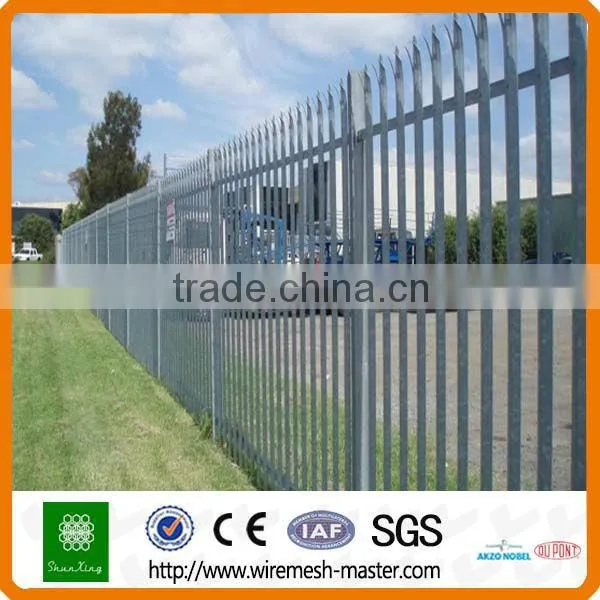

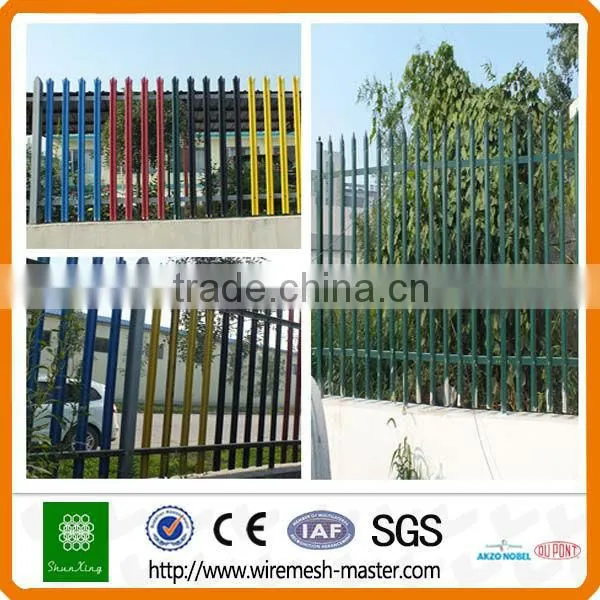

Palisade fence is strong, durable and fulfils many demanding roles. It is regularly used around industrial units, civic amenities, schools and other such applications where security is a major concern.
The security level of palisade can be increased by increasing the height of the fence, increasing the number of pales per panel, increasing the thickness of pale, adding a concrete plinth.
