Specifications
Digital Pressure controller/ pressure indicator2.5mV/V or 3.3mV/V Input
4-20mA Current loop
Anti- jamming, High precision
Digital Pressure controller / pressure indicator N90
Discription
N90 digital pressure controller / pressure indicator is a 1/8 DIN or ¼ DIN, panel-mount, dual 4-digit indicator, which takes the advantage of latest state-of-art technology and comes in small-size, light-weight and in low-power.
This pressure indicator has been specifically designed for use with mv/Volt output transducers from different famous manufacturers such as Dynisco, Gefran, ONEhalf20 and so on. This series indicator can match ZHYQ’s melt pressure transducer also.
Application
This type pressure controller can be widely used in situation of display and autocontrol in Hydraulic pressure, oil, plastics, latex, printing and dyeing, textile industry; AND also can be compound with resistance strain guage press sensor of other manufactory
Specification
(1) |
Display |
Dual 4-digit Green and Red LEDs |
(2) |
Resolution |
0.2% FSO ± 1 |
(3) |
LEDs |
Out, Alarm-1, Alarm-2, CALibration |
(4) |
Input Sensibility |
2.5mv/V or 3.3 mv/V (automatic selection) |
(5) |
Sampling Speed |
20 per second |
(6) |
Excitation Voltage |
+9 VDC (output to transducer) |
(7) |
All Output Relays |
Relay 220V 1A |
(8) |
Retransmission |
4~~20 mA standard current loop |
(9) |
Communication |
RS-485 MODBUS( PY500 Only) |
(10) |
Alarm Range |
0001 – 9999 PSI or Bar (configurable) |
(11) |
Temperature |
0 - 55°C |
(12) |
Humidity |
<= 80% RH |
(13) |
Calibration |
80% FSO (Full Scale Output) |
(14) |
Power Supply |
110/220VAC or +24VDC (designated while purchasing) |
(15) |
Size |
N90: 48mm x 96mm x 100 mm (W x H x D) |
(16) |
Panel Cutout |
N90: 44mm x 92mm |
(17) |
Weight |
200grams |
Panel Dimensions

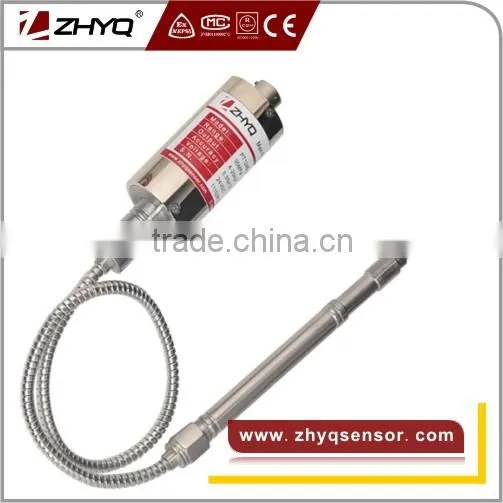

Matching with our PT124x-1xx Series Melt pressure transmitters:
Order Guide :with "* "are required , with "---"is optional
Remarks the pressure range when order instrument and pressure transmitter. It could not modified the pressure range for the indicator and transducer by customer. The transducer must match with the digital transmitter supplier by ZHYQ.
Maintenance
The operating temperature is 0-55°C, the relative humidity is no more than 80% RH, it can be used in the conditions without dirt or corrosive gas. It can be free repaired in 12 months from leaving our company. If there is something wrong with the use of customer or the beyond the maintenance, we should charge for the service of repair.
Price, Package and Service
1, ZHYQ is in this field of producing various Digital Pressure controller/ pressure indicator for 13+ years
2, OEM is available, our price is more competitive
3, 7 days replacement and 12 months free repair if quality problem .
4, All goods will be fully checked by our QC.
5, Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder.
6. Any questions from you are welcome and will be replied in 24 hours.
7, Package: The goods will be put into the packing box with instructions and certificate of quality first.
Our main products contains melt pressure transducers, melt pressure transmitters, Industrial pressure transmitter, melt pressure gauge, Homogenizer pressure gauges, automotive/air pressure sensors, Intelligent digital indicator, level transducer, temperature transducer, Rupture disk, and etc. more than 80 series and 500 models products.
