Specifications
Air-condition pressure sensorpact confuguration
2.easy to install
3.long-term stability
4.OEM service availab

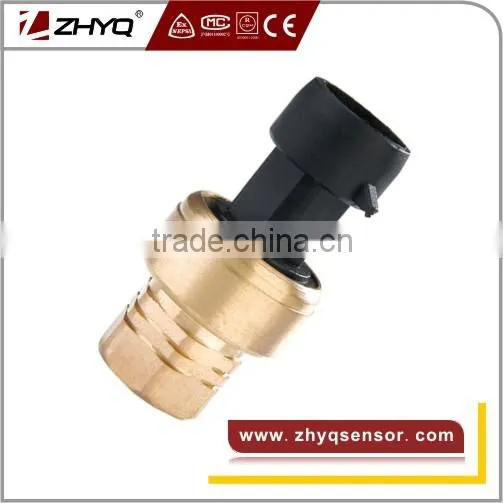

Air condition pressure sensor
Description
The PT124B-230 series pressure transmitter adopts diffused silicon or ceramic piezoresistive sensor chip, with compact configuration, easy to install, and special valve needle design for lead pressure port, perfect electrical performance and long-term stability make it the idea choice for the air-condition pressure measuring and controlling.
Applications
Laboratory test apparatus
Agricultural chemical equipment
Refrigeration and HVAC systems
Hydraulic pressure system
Gas tank pressure monitoring
Coolant pressure measuring
Features
Superior long term stability
A wide range of temperature compensation
Low power consumption
Excellent repeatability/hysteresis
Special design for customer
Many OEM options
Specification
Range |
0….1bar to 0….600bar ` |
Accuracy |
0.5%FS ; 1%FS |
Linearity |
0.02%FS |
Reliability |
0.05%FS |
Output |
4-20mA, 0-5V, 0.5-4.5V,1-5V |
Input Voltage |
24(8-36V)DC |
Operating Temperature |
-20°C~100°C |
Temperature Compensation |
-10~65°C(Standard Compensation) |
Over Pressure |
150%FS |
Case material |
Brass |
Electric connection |
Packed connector |
Process connection |
G1/4, 1/4NPT,1/8NPT, 7/16-20UNF(Optional) |
Dimension
Ordering guide
Model |
Range |
Output |
Process Connection |
Electric Connection |
Other Requirement |
PT124B-230 |
--- |
--- |
--- |
--- |
--- |
Example: PT124B-230-10bar-0.5/4.5V-7/16F-20UNF | |||||
Wiring code
Signal output |
4-20mA (2 wires) |
0-5V, 0.5-4.5V,1-5V (3 wires) |
||
Wiring code |
1 |
Input (Red) |
1 |
Input (Red) |
2 |
Output (Black) |
2 |
common point (Black) |
|
3 |
none |
3 |
Output (Blue) |
|
Remarks: Above wiring connector is the standard type, if you need the special wiring, please contact with the company at first. | ||||
