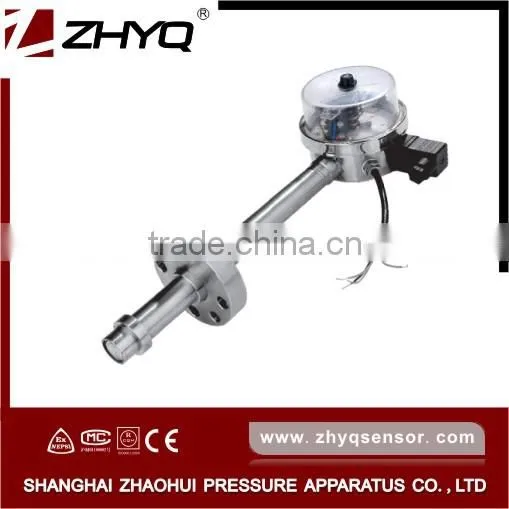

Help CenterMagnetic Electric Contact Pressure Gauge
Related Products
-
Clamp Mounting Diaphragm Pressure GaugeNegotiableMOQ: 1 Piece -
Pressure Plate Diaphragm Pressure GaugeUS$ 80 - 150MOQ: 1 Piece
-
Axial Anti Vibration Diaphragm Pressure GaugeNegotiableMOQ: 1 Piece
-
Flange Diaphragm Pressure GaugeNegotiableMOQ: 1 Piece
-
Explosion Proof Diaphragm Pressure GaugeNegotiableMOQ: 1 Piece
Specifications
magnetic electric contact pressure gauge1.all stainless steel structure
2.local index display
3.step-up and stem-down versio
Megnetic electric contact pressure gauge
Features and benefits
Direct, local readings
Mechanical design
Step-up and stem-down versions
Gauge head rotates 360o for easy reading
0-100bar to 0-700bar pressure range
Stainless steel construction
12 months manufacturer's warranty
Install easily, high reliability
Zero adjustment magnetic electric contact pressure gauge
With contact switch signal output
Applications
Chemical fiber and filature
Rubber & plastic machinery
The equipment of high temperature steam
High temperature fluid pressure measuring and controlling
Specification
Range |
0~100bar~700bar |
Output: |
Contact switch signal 3A |
Accuracy |
±1.6%FS |
Configuration |
Bourdon tube |
Over Pressure |
1.5×FS |
Dial Diameter |
100mm |
Needle sweep: |
270º |
Diaphragm material: |
15-5PH |
Case material: |
Stainless steel with safety glass |
Max Diaphragm Temp. |
350°C |
Electric connector: |
DIN43650-A, 5PIN,6PIN connector |
Process Connection |
M22×1.5;M18×1.5,M14*1.5(Optional) |
Ordering guide
Model |
Range |
Output |
Process connection |
Other requirement |
PT124Y-613 |
--- |
--- |
--- |
--- |
Example: PT124Y-613-350Bar-upper limit alarm-M20×1.5-6PIN | ||||
