Help CenterPT124G-111extruder Rigid Stem Economic Melt Pressure Transducer
Related Products
-
PT124G-123 Plastic Extruder Flexible Melt Pressure TransducerUS$ 120 - 235MOQ: 1 Piece -
PT124G-123T Flexible Thermocouple J Melt Pressure TransducerUS$ 165 - 265MOQ: 1 Piece
-
PT124G-112T Extruder Thermocouple J Melt Pressure TransducerUS$ 155 - 225MOQ: 1 Piece
-
PT124G-112 Plastic Extruder Rigid Stem Melt Pressure TransducerUS$ 120 - 235MOQ: 1 Piece
-
PT124B-123T High Precision J Thermocouple Melt Pressure TransmitterUS$ 150 - 255MOQ: 1 Piece

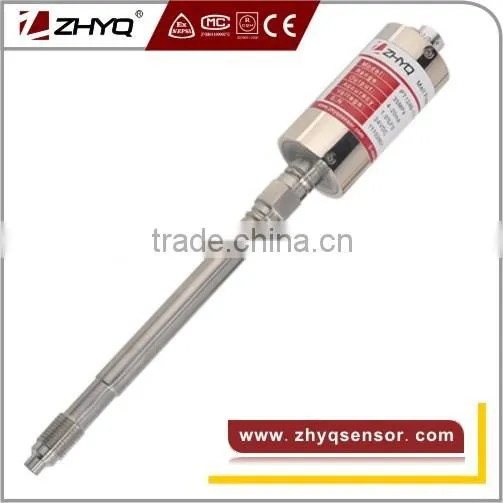

PT124G-111 Series melt pressure transducer is economic type product, designed with rigid stem construction. And the model PT124G-111T comes with thermocouple, it can measure the pressure and temperature at one point. This product built in 80% shunt calibration, it can match the N series pressure instrument from ZHYQ, also can match the pressure instrument or controller of other brand. This product has advantage of stability and repeatability, good anti-jamming performance. This series product is widely used in the domestic.
Application
It can be widely used in various plastic extrusion lines for pressure measuring and control, such as chemical fiber manufacturing equipment, plastic rubber machine, polyester equipment and petrochemical.
Dimensions
specification
Model |
PT124G-111 Series melt pressure transducer is economic type product |
Pressure range |
0-3.5MPa…0-150MPa (0-500psi…20000psi) |
Over Pressure |
1.5 X FSO |
Combined Error |
± 1.5% FSO; ±1.0% FSO (Including Linearity, Repeatability & Hysteresis) |
Output |
2mV/V; 3.33mV/V |
Input Voltage |
10VDC |
Repeatability |
+/- 0.2%FSO |
Bridge Resistance Input |
345 Ohms minimum |
Bridge Resistance Output |
350 Ohms +/- 10% |
Internal Shunt Calibration (R-Cal) |
80% FSO +/- 1% |
Insulation Resistance |
200 megohms @ 100 Vdc |
Max Diaphragm Temperature |
300 ℃ |
Mounting Torque |
500 inch/lbs. max. |
Standard Wetted Parts |
Diaphragm coated 15-5 PH SST |
Thermocouple type |
J, K, E, PT100 (PT124G-111T) |
Electrical connector |
5PIN connector, other connector optional |
Process connector |
M14×1.5, 1/2-20UNF, M18×1.5 Optional |
Ordering guide
Model |
Range(bar) |
Output |
Screw Thread |
Electric connection |
Other requirement |
PT124G-111 |
--- |
--- |
--- |
--- |
--- |
PT124G-111T |
|
|
|
|
|
Example:PT124G-111-500Bar-2mV/V-6″-1/2-20UNF-6PIN | |||||
1, Our quotation is always valid for you if there is no world market unrest.
2, Receiving your new inquiry, the infos of products & the best price will be provided you asap.
3, 7 days replacement and 12 months repair free of charge for quality problem.
4, Shipment port: Shanghai.
5, Payment: T/T, Western Union, PayPal, Money Gram optional
6, OEM available
7, Delivery time is 7-10 working days.
8, All goods will be fully checked by our QC.
9, Package: The goods will be put into the packing box with instructions and certificate of quality first. Then we pack them into the carton filling with polystyrene foam avoiding the damage to the products.
10, Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder.
Our company
Shanghai Zhaohui Pressure Apparatus Co., Ltd (ZHYQ) is the leading manufacturer which specializes in the design and construction of various transducer, transmitter and automation control products in China.
Founded in 1999, ZHYQ has actively brought in advanced production equipment and manufacturing process at home and abroad, developed and produced the transducers more than 80 series and 500 models successfully, which include industrial pressure transducer/transmitter, project equipment pressure transmitter, melt pressure transducer/ transmitter, melt pressure gauge, level transmitter, temperature transducer, tension transducer/ transmitter, burst Plug, intelligent digital indicator, and all kinds of sensor chips and etc.
ZHYQ insists on the development strategy with High-tech, High Quality, High level service, Creating world name brand, focuses on the challenge and stress attended by the customers, offers the competitive products and service and creates the economic value for the customers persistently.
Our factory
1.How do you ensure good product quality?
We have a complete quality control system; all of our products are fully checked by IQC, OQC departments before ship to our clients.
2. How fast can you delivery goods?
Always 7-10 working days since order confirmed, if need goods urgently, we can
arrange expedited production.
3. What’s your MOQ?
We have no MOQ limits, 1 piece for test purpose at first is acceptable.
4. How long is your product warranty?
7 days replacement and 12 months repair free of charge for quality problem
5. Can you accept OEM brand?
Yes, we can accept the OEM brand without extra charge.
6. Can you offer free samples?
Yes, we can offer free samples, however you should pay for the samples at first, and then we will return the cost when you release bulk order.
7. How long your quotation valid?
Our quotation valid for 6 months .
8. What trade terms, payment mode and payment terms can you accept?
Trade terms: Ex- Works, FOB, CNF
Payment mode: T/T, Western Union, PayPal, Money Gram
Payment terms: 100% payment before shipment
9. What express ways you can offer, can we use our own courier?
We can send goods to you by DHL, TNT, UPS, SF, EMS for freight prepard , also can use your own courier account to do the freight collect , just for your convenience.
