RO Filter

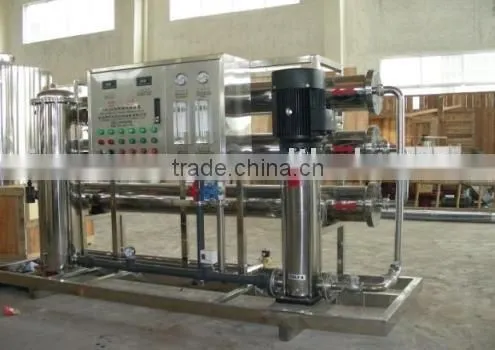

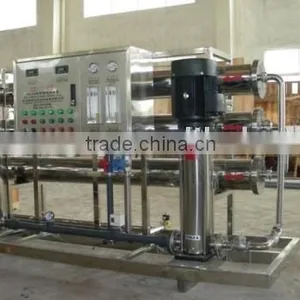

RO Filter photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Xiong Wang
Model Number:
CLK
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Jiangsu, China
Brand Name Xiong Wang
Model Number CLK

Specifications

1)Have CE and ISO9000 certification
2)Steady capacity:5000L/H
3)Good quality

mineral water treatment equipment

Mineral Water Treatment Equipment / system

The equipment adopts screw slip-joint. It mainly separates organic material,colloid, ultrasmall particle, bacterium. It has good effect on cleaning, sterilizing and concentrating big-molecule material.

The equipment has two types:ultrafilter and concentration.Its output is fronm 0.3m3/hour to 20m3/hour.



The water filter station consists of booster pump, pretreatment units (including quartz sand filter, active carbon filter and micropore

filter), high pressure pump, reverse osmosis (RO) membrane, conductivity meter, UV sterilizer and controls. All these units are mounted on the stainless steel frames for water filtration. The station is used to remove residual suspended solids and organic matter from water and kill bacteria and virus. The portable water is filtered and perfected in this way. The station is unattended and controlled by PLC. It automatically monitors high volume water filtration and long service life.



pure water equipment from angel  China,we mainly in pure water industry for more than 15 years.it's the oldest factory in China.

quartz sand-active carbon-cation-RO membrane-PP .........

Technology instruction



1,It adopts current advanced RO system , the output water no kernel,pure.

2,this system adopts American HYDe company ESPA-8040,the rate of removed  salt is 98%,recovery 50%-75%,and shapes the special character. The whole system can get rid of bacterial virus , heavy metallic irons. radioactive elements ,organic pollutant each is 99.99%,95%, 99%,95% ,the quality of water sweet ,clean. Also get rid of poison harmful material in source water , such as four chlorination carbons, benzenese, hydrocarbon, agrochemical, and lead, mercury ,chrome ...etc other radioactive element all Be tested a limit the following.



Name:

RO pure water equipment

Specification:

Model:

RO-1000I(5000L/H)

Capacity of pure water:

5000 L/H

General power:

12.5 KW

Electrical power:

AC 380V 25A 50Hz

RO membranes:

8040   9items(2 grades)

Multi-phases pump:

CDL8-16/5.5 KW 1 item
CDL4-22/4.0 KW 1 item

Beforehand filter:

4872 FRP 2 items

PP sediment membranes filter:

400×1000  1 item

Booster pump:

CHL16-30/3.0 KW 1 item

Active carbon filter:

500 kg

Quartz sand filter:

1500 kg

Functions:

RO membrane auto wash and manual wash
Pure water height water level auto stop,low water lever auto run Multi-levels pump no water protect All kinds of protect:no power,poor power,short circuit,larger electric current,creepage protect and so on.

Size (mm):

main machine:4000×800×1780
