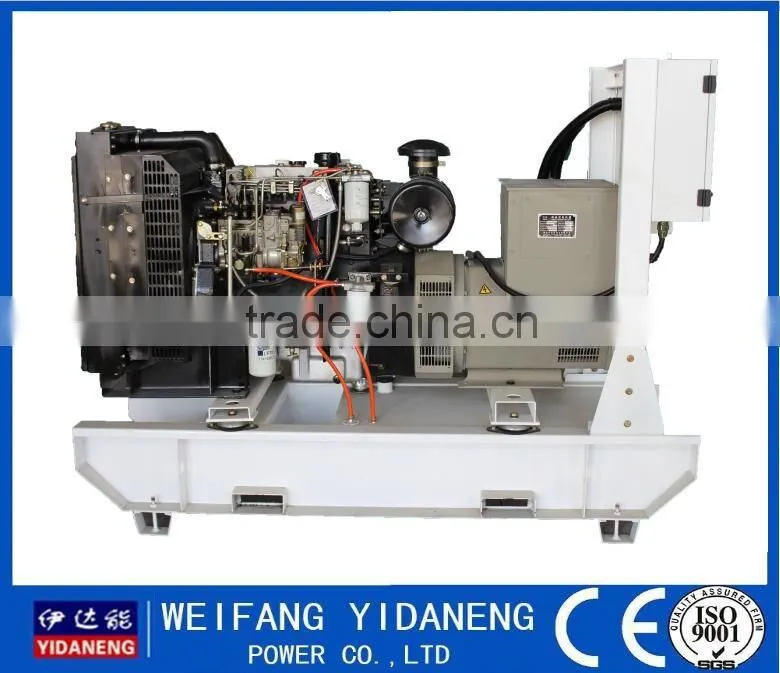

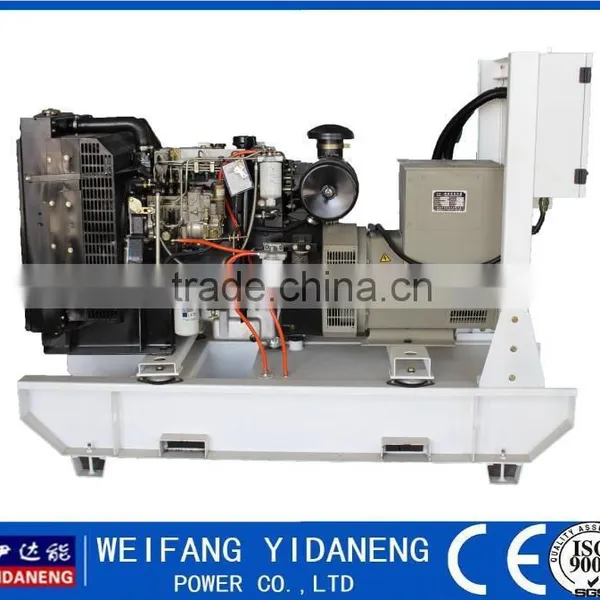

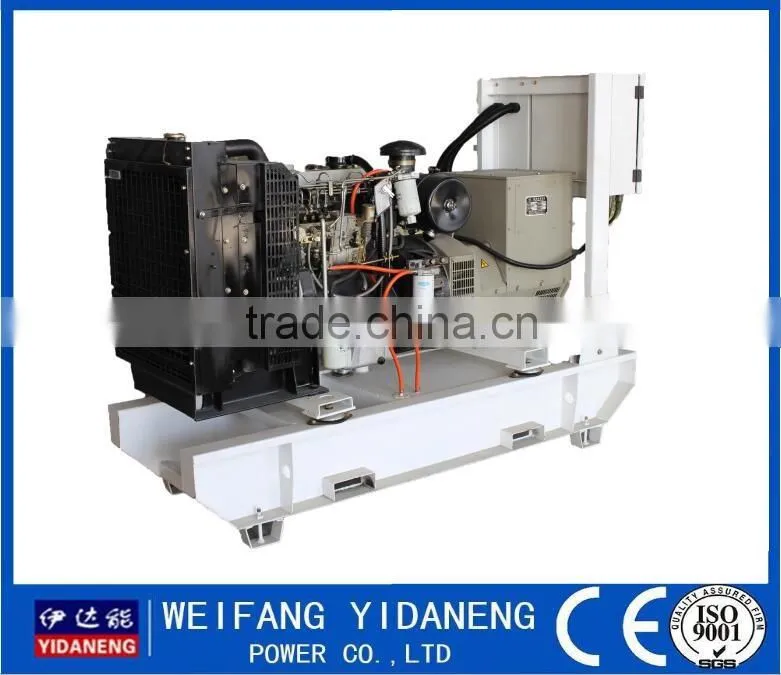

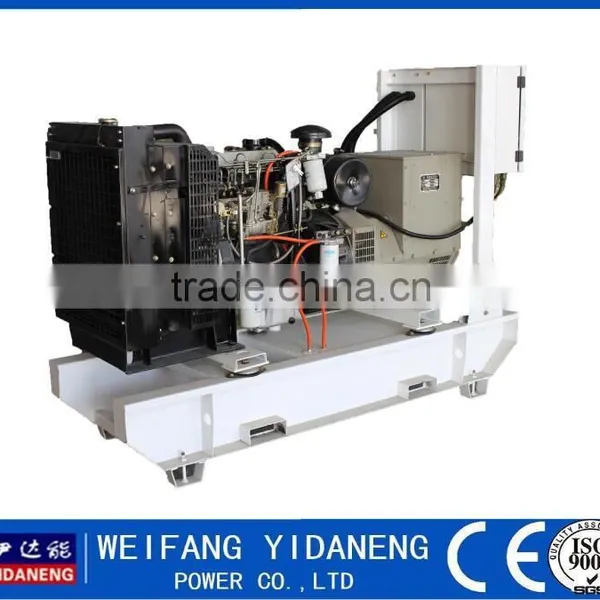

58kw Lovol Diesel Generator Manufacture Yidaneng

Name: 58kw Lovol Diesel Generator Manufacture Yidaneng
Brand: YIDANENG
SKU: 130575583

US$ 6,670 - 6,700 MOQ: 1 Set

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

YIDANENG

Model Number:

YDNY-58

Weifang Yidaneng Power Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name YIDANENG

Model Number YDNY-58

Output Type AC Three Phase

Speed 1500/1800rpm

Frequency 50/60HZ

Rated Power 58kw

Rated Voltage 230/400V

Rated Current 1084.4A

58kw Lovol diesel generator manufacture Yidaneng

Diesel generator brands
Yidaneng diesel generator choose the domestic famous brand Ricardo series diesel engine as dynamic force which adopts advanced technology.
With the importing of technology of Yidaneng Company power from 6.6ke to 500kw.
Yidanenfg diesel generator adopted 100% cooper brushless alternator brand.
Containing with 8-24 hours fuel tank, automatic transfer switch, and adopting water cooling technology for keeping running efficiency.
Yidaneng diesel generator set is widely used as major or back up tower supply in fieldwork, high building, supermarket, factory, oilfield, high road, harbor countryside and so on.

Main Specification:
1.	1. With the jacketed high-pressure fuel pipe, it is safe and reliable;
2.	2. It makes the high efficiency and compact space with great transmission;
3.	3. It’s safe and stable for electrical system with structure; low oil consumption.
4.	4. With advanced technology: good quality, great power, running stability.
5.	5. Choosing famous brands 100% copper brushless alternator. Power Efficiency: 90%;Insulation Class:H.

The advantages of 58KW diesel generator
LOVOL diesel generator engine adopts advanced technology. Featured with good economic performance, compact structure, great power, easy- operation.
The engine of Yidaneng diesel power generator is in low fuel consumption rate and low emission, good dynamic performance, small volume, compact structure, great power, running stability, easy-operation, safety and reliable.
58KW LOVOL diesel generator adopts advanced design and reliable performance. The material of engine adopts moisture proof and derusting processing, protecting the gen set from humid weather.
With the jacketed high-pressure fuel pipe for good atomization and combustion.

Generator	Genset Model	YDNL-58
	Rated Frequency	50HZ
	Power Factor	0.8
	Rated Voltage	400/230V
	Rated Power (KW/KVA)	58/72.5
	Standby Power (KW/KVA)	58/72.5
	Phase/Wire	3Ph, 4Wr
	Overall Size (mm)	2250×860×1650
	Weight (kg)	1050
Engine	Model	1004TG
	Type	Closed water-cooled,in line,4-stroke,direct injection
	Rated Power(kw)	65.7
	Intake Type	Turbocharged
	No. of Cylinder	4.L
	Bore×Stroke(mm)	100×127
	Piston Speed (m/s)	7.62
	Compression Ratio	16:01
	Mechanical Governor Rated	at most 5%
	Electronical Governor Rated	at most 1%
	Noise Level (dBA)	at most 95
	Exhaust Temperature (℃)	561
	Lube Oil Capacity (L)	8.1
	Rated Fuel Consumption (L/h)	13.5
Alternator	Model	UCI224E
	Rated Power(KW/KVA)	58/72.5
	Power Efficiency	88.90%
	Voltage Regulation	at most ±1
	Excitation Type	Brushless
	Insulation Class	H

Spare part

* Spare Part Advantages:

Spare Part Advantages:
1. 30kw Yidaneng diesel generator adopts 100% copper brushless alternator.
2. With good quality fuel tank.
3. Kinds soundproof, weatherproof, canopy choice.
4. Automatic control and automatic transfer switch.
5. All spare parts are versatility and easy maintenance.

Supply Service
Pre-Sale Services High performance products with installation, design or material and quick repairmant; Expert engineers offer technical consultation and assort guidance to our customers, such as questions and offer technical help during any time.
Quality of Service Professional technical adviser; Once we get inform from our customer, we send technical engineers to scene and help to installation and debug the generator, and cooperate with customer to check and accept the generator. The products with most appropriate design and optimization.
After-Sales Service Establish customer service files for end users, provides operations, technical guidance, tracking service, regular visits, life-long maintenance. Design machine room and the offer follow-up service and regular inspection.
Free quick-wear parts offer spare parts and technical help at any time.

Packaging & Shipping

Warranty

Guarantee & Warranty
1.	1 year or 1500 running hours;
2.	Any trouble of breakdown caused by installation, design or material, we will take charge of repairment;
3.	Any trouble or breakdown of the easily damaged parts and other parts with cost price, and our engineers can help to repair the generator to work again.
4.	We will repair the fault report or compliant received with 2 hours after the reply. After receiving the city’s emergency services 12 hours field to reach the scene within 48 hours. (Service implementation of the agreement by foreign customers).
5.	During the warranty period, if the reason is because the machine itself or damage resulting from failure (excluding wear parts). We will be free for you to repair or replace parts. Outside the warranty period, we will change a fixed fee provision, spare parts price will be provided..
*Note: generator warranty for one year from the date of the first motor car 1500 hours. (Whichever comes first* )**
