30kw Natural gas power generator manufacture price
*Main Specification: | |
1. With the jacketed high-pressure fuel pipe, it is safe and reliable; | |
2. It makes the high efficiency and compact space with great transmission; | |
3. It’s safe and stable for electrical system with structure; low oil consumption. | |
4. With advanced technology: good quality, great power, running stability. | |
5. Choosing famous brands 100% copper brushless alternator. Power Efficiency: 90%;Insulation Class:H. | |
1. |
Natural gas generator widely used to the oil fields, coal mines, chemical industry, carbon industry, wine factories, ferment factories, and food processing, rubbish burying factories, waste water processing factories. |
2. |
Natural gas methane and other gas can be used as the fuel for Gas Genset. This equipment can be applied into transformation of railway and high way at low running cost. It can also be widely popularized in farms, paddy crust, and saw waste can be the materials to generator electricity. |
*The advantages of 30kw Natural gas generator | |
30kw Natural generator engine adopts advanced technology. Featured with good economic performance, compact structure, great power, easy- operation. | |
The engine of 30kw natural gas power generator is in low fuel consumption rate and low emission, good dynamic performance, small volume, compact structure, great power, running stability, easy-operation, safety and reliable. | |
30kw Natural gas generator adopts advanced design and reliable performance. The material of engine adopts moisture proof and derusting processing, protecting the gen set from humid weather. | |
With the jacketed high-pressure fuel pipe for good atomization and combustion. | |
| Generator | Genset Model | YDNGFZ-30 |
| Rated Frequency | 50HZ | |
| Power Factor | 0.8 | |
| Rated Voltage | 400/230V | |
| Rated Power (KW/KVA) | 30/37.5 | |
| Standby Power (KW/KVA) | 33/41.25 | |
| Rated current (A) | 54 | |
| Phase/Wire | 3Ph, 4Wr | |
| Overall Size (mm) | 1880×740×1280 | |
| Weight (kg) | 760 | |
| Gas Engine | Model | 4105Q |
| Type | Water-cooled, 4-stroke, wet cylinder liner | |
| Rated Power (kw) | 38 | |
| No.of Cylinder | 4.L | |
| Bore×Stroke (mm) | 105×125 | |
| Gas Consumption (m3/kw.h) | 0.36 | |
| Oil Consumption (g/kw.h) | 2 | |
| Cooling Type | Closed water cooling | |
| Speed Governing Mode | ESC | |
| Starting Mode | Electric | |
| Alternator | Model | BCI184H |
| Prime Power (KW/KVA) | 30/37.5 | |
| Voltage Regulation | at most ±1 | |
| Excitation Type | Brushless | |
| Insulation Class | H | |
| Control System | Model | Smartgen6110 |
| Working Voltage | DC8.0V to DC35.0V, continuous | |
| Overall Dimensions | 197 mm x 152 mm x 47mm | |
| Panel Cutout | 186mm x 141mm | |
| Working Condition | Temperature: (-25~70)ºC; Humidity: (20~90)% | |
| Weight | 0.56kg |

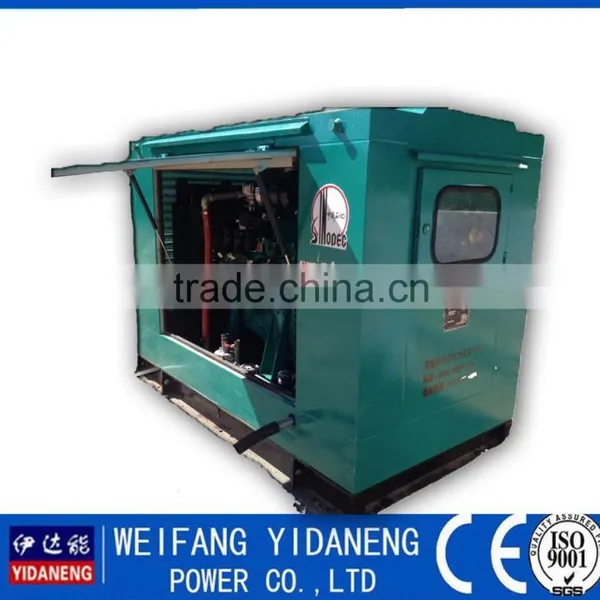

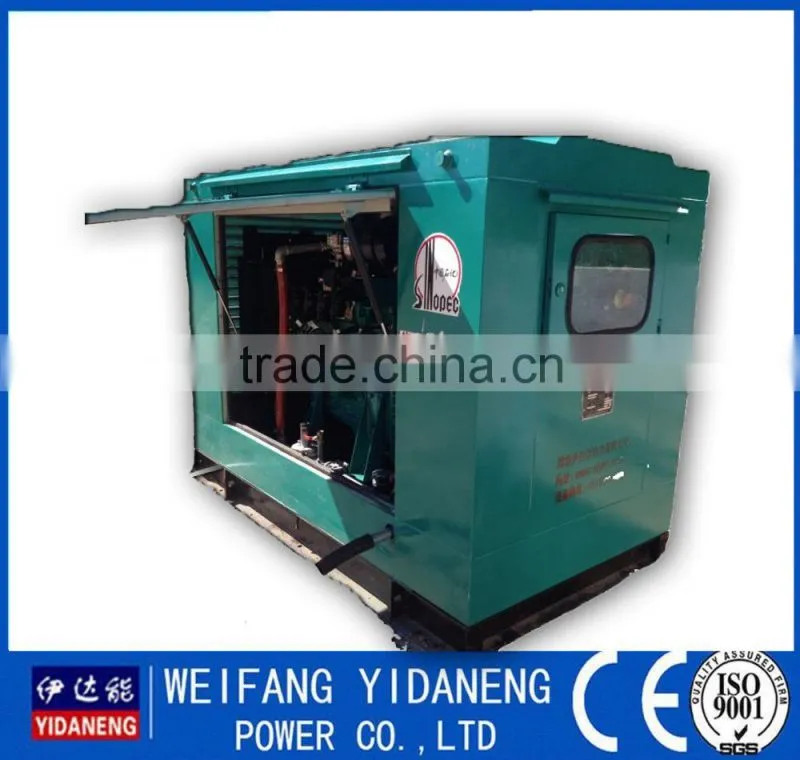

*Natural gas generator picture's show:
*Spare Part Advantages: | |
1. 30kw Natural gas generator adopts 100% copper brushless alternator. | |
2. With good quality fuel tank. | |
3. Kinds soundproof, weatherproof, canopy choice. | |
4. Automatic control and automatic transfer switch. | |
5. All spare parts are versatility and easy maintenance. | |
*Supply Service | |
1. |
Pre-Sale Services High performance products with installation, design or material and quick repairmant; Expert engineers offer technical consultation and assort guidance to our customers, such as questions and offer technical help during any time. |
2. |
Quality of Service Professional technical adviser; Once we get inform from our customer, we send technical engineers to scene and help to installation and debug the generator, and cooperate with customer to check and accept the generator. The products with most appropriate design and optimization. |
3. |
After-Sales Service Establish customer service files for end users, provides operations, technical guidance, tracking service, regular visits, life-long maintenance. Design machine room and the offer follow-up service and regular inspection. |
4. |
Free quick-wear parts offer spare parts and technical help at any time. |
*Plywood Case &Stretch Film Packing
*Company Information Introduction :
Established in 2000,Weifang Yidaneng Power Co., Ltd.(Weifang Guanghui Agricultural Machinery Co., Ltd.) is located in Weifang, Shandong Province, which is entitled the " City of Power " in China. YIDANENG is mainly engaged in R&D, producing and marketing of all kinds of generator sets and water pump sets. The main products are diesel generator sets, gas generator sets and water pump sets . The diesel engines we select include both world renowned brands such as Deutz, Ricardo, Steyr and domestic famous brands such as Lovol,Weichai, Shangchai,Jichai and Yangdong.The diesel gen-sets range is from 6.5kw to 1000kw and is in accordance with ISO9001 quality management system. The gas gen-sets are from 10kw to 500kw, including natural gas gen-sets, LPG gen-sets and biomass gen-sets.We select famous diesel engines and high quality water pumps to produce automatic water pump sets, providing water-supply pump unit for fire fighting, automatic water-supply equipment and related control cabinets. We have our own registered trademark " YIDANENG". The factory covers an area of 36000m³. We have 150 employees, and divide into production department, technology dapartment, international trade department and other dapartments. All departments have clear responsibilities, and form the good corporate style and corporate culture.
*Guarantee & Warranty | |
1. |
1 year or 1500 running hours; |
2. |
Any trouble of breakdown caused by installation, design or material, we will take charge of repairment; |
3. |
Any trouble or breakdown of the easily damaged parts and other parts with cost price, and our engineers can help to repair the generator to work again. |
4. |
We will repair the fault report or compliant received with 2 hours after the reply. After receiving the city’s emergency services 12 hours field to reach the scene within 48 hours. (Service implementation of the agreement by foreign customers). |
5. |
During the warranty period, if the reason is because the machine itself or damage resulting from failure (excluding wear parts). We will be free for you to repair or replace parts. Outside the warranty period, we will change a fixed fee provision, spare parts price will be provided.. |
Note: generator warranty for one year from the date of the first motor car 1500 hours. (Whichever comes first ) | |
