22.5kva Yangdong Generator Sets Open Frame or Silent Canopy

Name: 22.5kva Yangdong Generator Sets Open Frame or Silent Canopy
Brand: Yangdong
SKU: 130576461

US$ 1,000 - 20,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

Yangdong

Model Number:

YDNY-18

Weifang Yidaneng Power Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name Yangdong

Model Number YDNY-18

Output Type AC Three Phase

Speed 1500/1800RPM

Frequency 50/60HZ

Rated Power 18KW/22.5KVA

Rated Voltage 400/230V

Rated Current 32.4A

Specifications

1.Yangdong diesel engine
2.Rated output:18kw

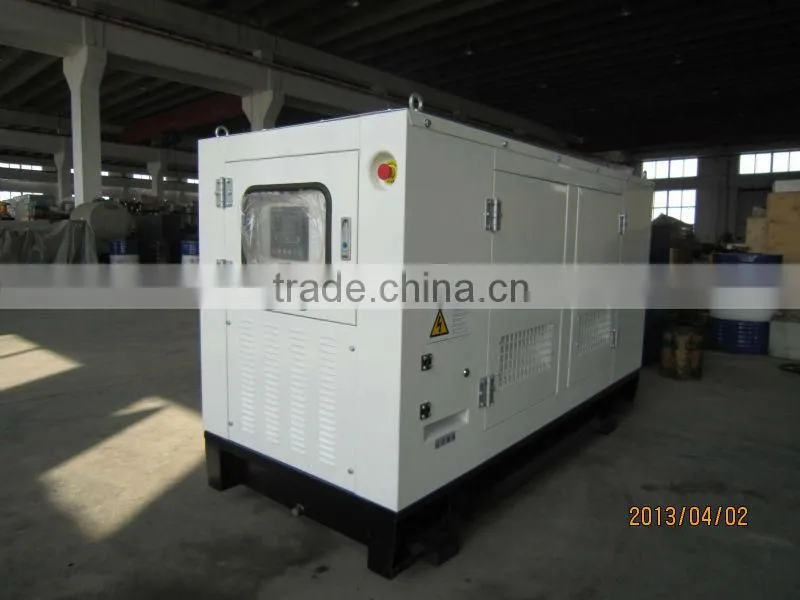

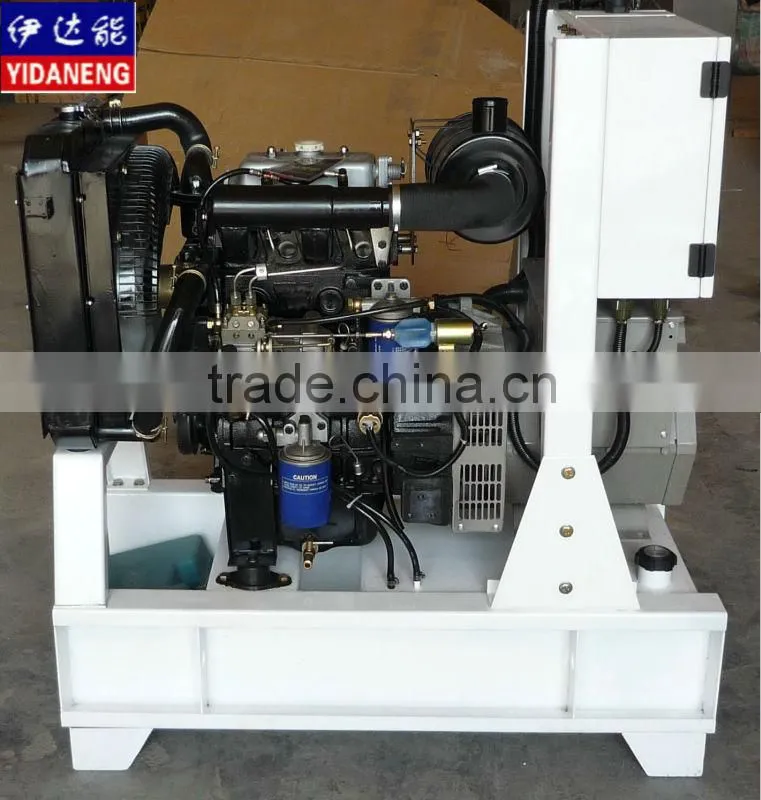

3.Open frame or silent canopy
4.Low fuel consumption
5.Water cooled system

Parameters:

Generator	Genset Model	YDNY-18
	Rated Frequency	50HZ
	Power Factor	0.8
	Rated Voltage	400/230V
	Rated Power(KW/KVA)	18/22.5
	Standby Power(KW/KVA)	19.8/24.75
	Phase/Wire	3Ph 4Wr
	Overall Size(mm)	1600×750×1050
	Weight(kg)	800
Diesel Engine	Model	YD490
	Type	Water-cooled,inline,4-stroke,direct injection, wet cylinder liner,1500rpm
	Rated Power(kw)	22
	Intake Type	Natural
	No. of Cylinder	4.L
	Bore×Stroke(mm)	90×90
	Piston Speed (m/s)	6
	Compression Ratio	16.5:1
	Mechanical Governor Rated	≤5%
	Electronical Governor Rated	≤1%
	Noise Level (dBA)	≤96
	Exhaust Temperature °C)	475
	Lube Oil Capacity (L)	11
	Rated Fuel Consumption(L/h)	5
	Displacement(L)	3.9
	Model	Mechanical
Alternator	Model	164 E
	Rated Power(KW/KVA)	18/22.5
	Power Efficiency	86.60%
	Voltage Regulation	≤±1.5
	Excitation Type	Brushless
	Insulation Class	H
