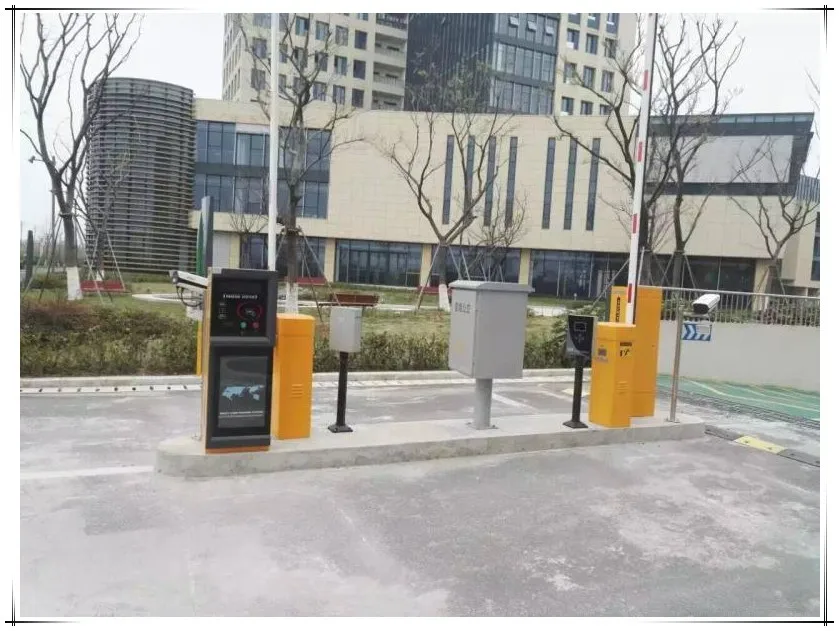

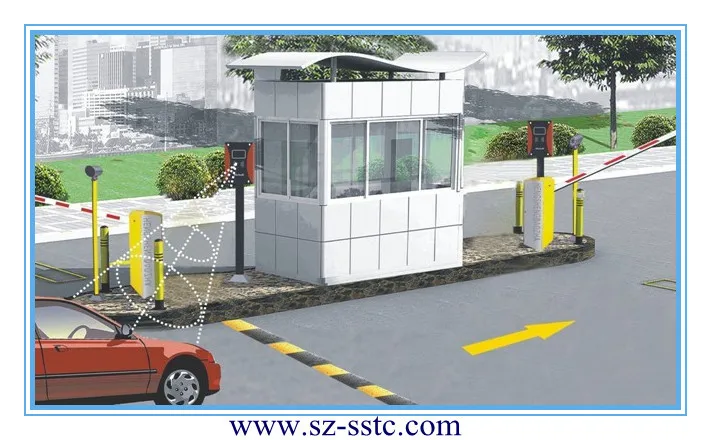

Automatic parking fee collection system with gate boom barrier

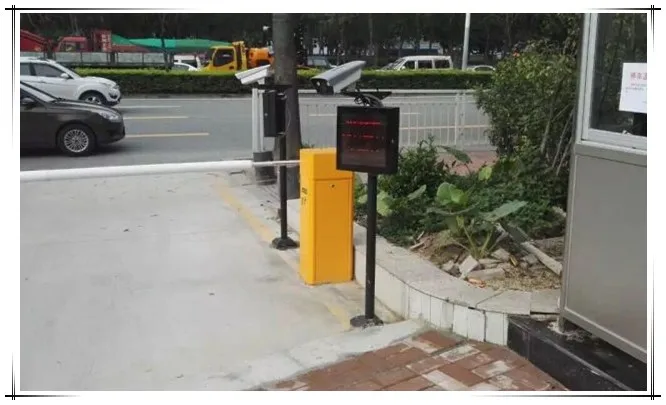

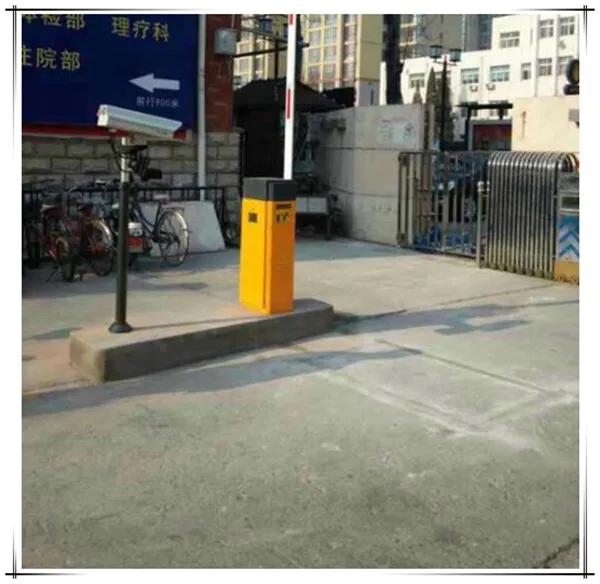

1.Entry Barrier, Exit Barrier
As one part of parking management system, barrier gate stops unauthorized parkers entering your parking area, or giving access to authorized parkers.

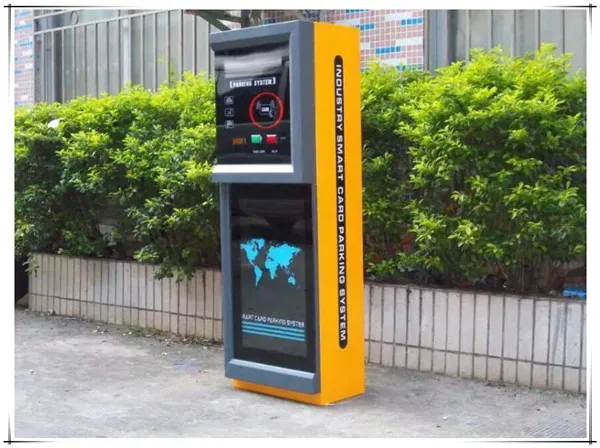

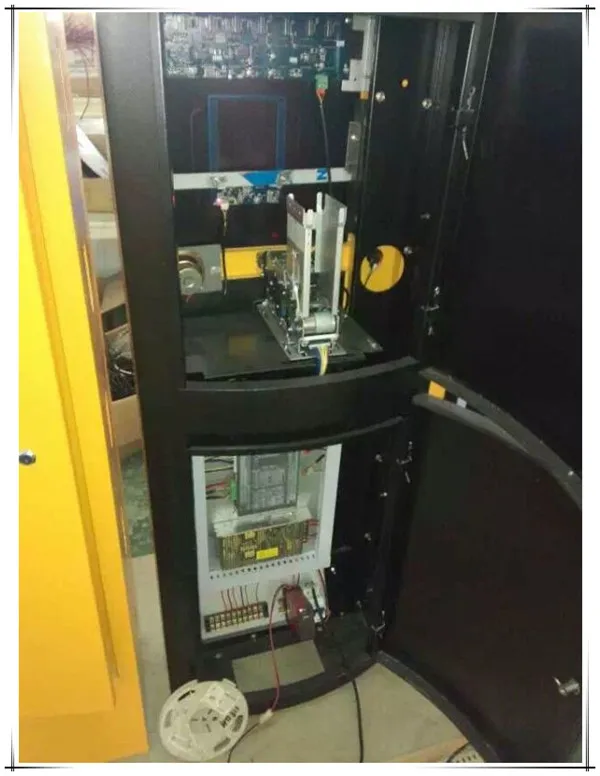

2.Entry Station

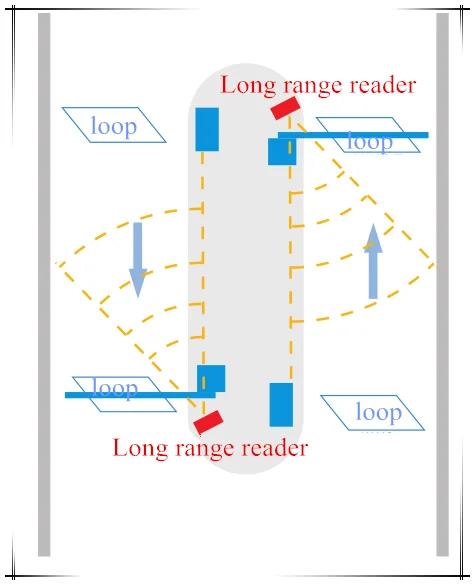

Registered parkers get access by self-service swiping their proximity cards close to the proximity reader built-in Entry Station, or enter w/o stop if tag on inside windshield was read by external long range RFID reader. Typically Entry Station is coupled with Entry Barriers, Loop Detectors, and optional accessories, depending on the site requirements.
3.Exit Station
Registered parkers can leave by self-service swiping their proximity cards close to the proximity reader built-in Exit Station, or leave w/o stop if tag on inside windshield is read by external long range RFID reader. Typically Exit Station is coupled with Exit Barriers, Loop Detectors, and optional accessories, depending on the site requirements.
4.Loop Detector
Connecting to a ground induction coil with two relays output, loop detector is to detect existence of vehicles.
5.Communication controller
It communicates with computer,Entry Station & Exit Station, manages and stores card information.
6.Parking Management Software & PC
The software provides the operators with idiot proof and user-friendly interface, and practical multi functions, such as managing registered parkers, setting charging standard, real-time surveillance, parking space display, managing events, managing report, registering card etc..
Main Features
SST's Packaged one-stop Parking management system adopt stable and mature data platform, apply to Windows2000Win XP OS and SQL Server 2000 database etc., parking management system is used to control and monitor the information like the vehicle status of Entry and Exit、status of barrier gate and so on. System designs of three-layer CS architecture，the module of each layer can be updated and replaced separately, which will effectively reduce the cost and simplify the management. At the same time, data processing can be transferred from client to application server and database server, accommodate large-scale and complicated application requirement. Parking management system has powerful data processing function. Various control parameters for parking management can be set, such as ID card detecting、ID card extend、Picture contrast etc. User can inquiry the vehicle in the parking lot, different reports can be generated and printed from the system, so as to manage the parking lot effectively.
Machine Parts

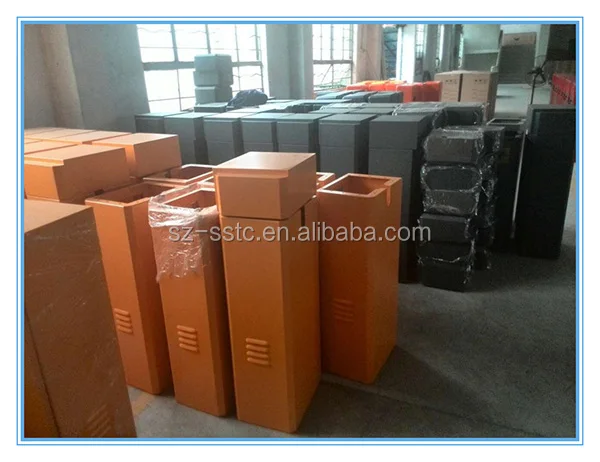

Name: parking barrier
Brand: SST
Original: China
Power supply:AC230V / AC110V
Power Frequency :50/60Hz
Rated Power:80W
Rated Rotary Speed:10 r/min
Raising/Falling Time:3.2S
As one part of parking management system, barrier gate stops unauthorized parkers entering your parking area, or giving access to authorized parkers.
Main Features

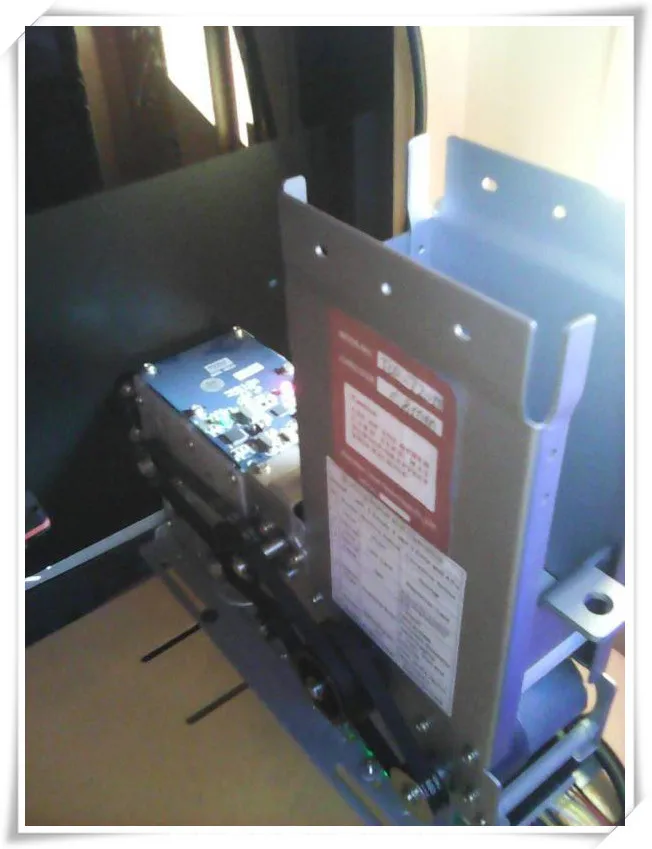

Name: Card dispenser
Brand: SST
Original: China
Operating voltage: 24VDC (max current 2A, static current 0.1A)
Operating temperature: -20℃ to 85℃
Operating humidity: 30-90% (comparatively)
Use condition: install in bin
Card available: width: 54+/-0.5mm Length: 85+/-0.5mm
Thickness: 0.3-2.5mm (adjustable)
Machine Parts
Name: Vehicle detector
Brand: SST
Original: China
Supply voltage：230V AC , 115V AC, 24V DC/AC, 12V DC/AC
Voltage tolerance AC: +10% / -15%
Voltage tolerance DC: ±15%
Power Consumption: 4.5VA
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Online support

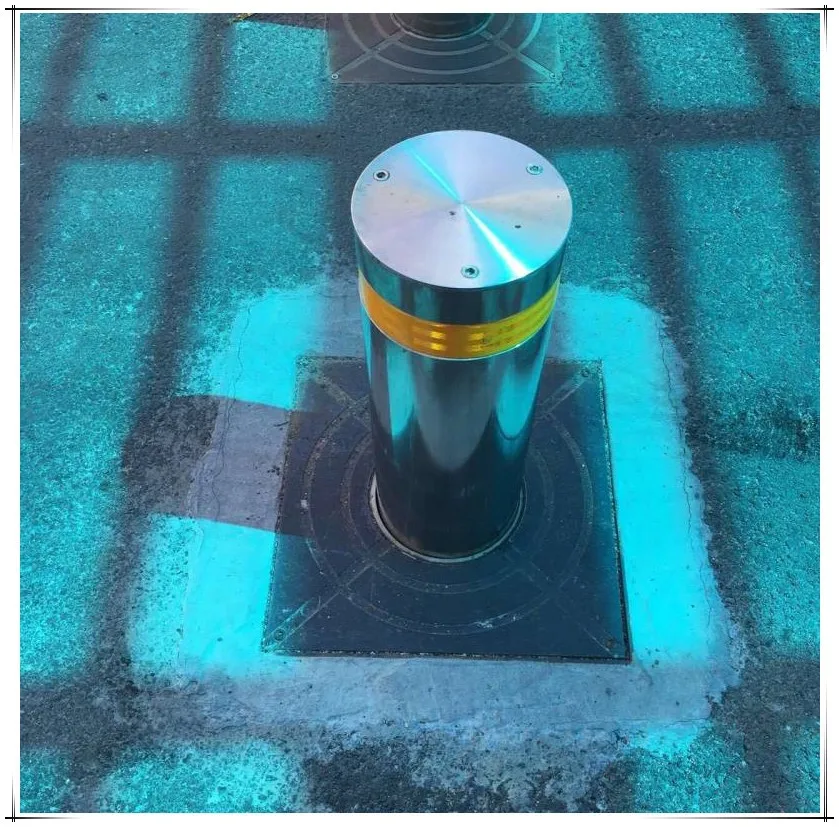

Hydraulic bollard
Hydraulic road blocker

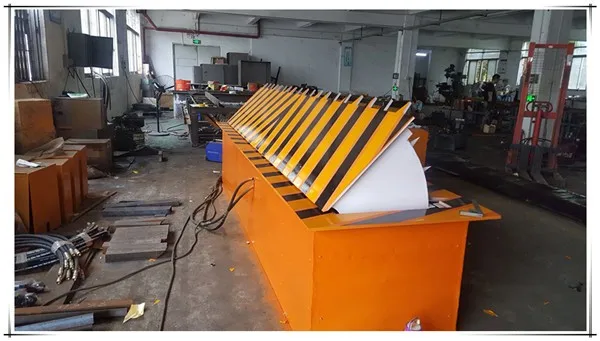

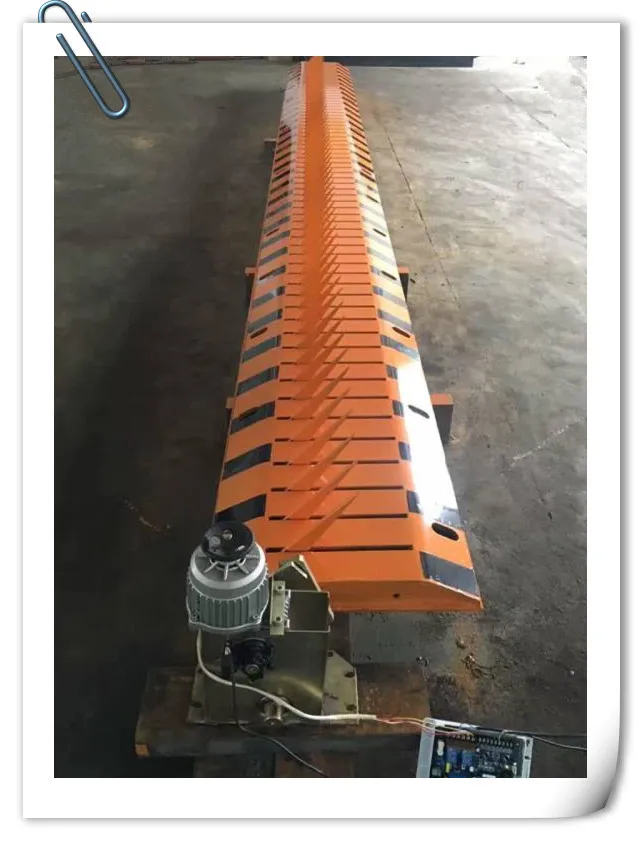

Electrical tyre killer
