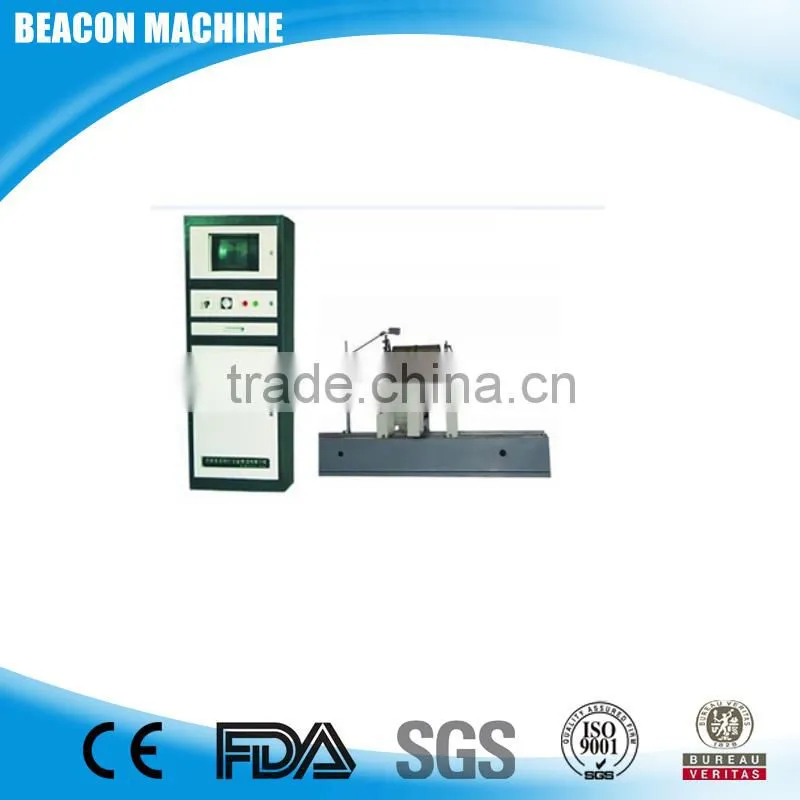

2015 high quality YYQ-100 balancing machine with low price
I ndustrial control computer 19 "LCD color screens
WidowsChinese and English system double choice
With AM-2000 general microcomputer balance measuring system
Automatic program-controlled amplifier module
Any workpiece scaling function, arbitrary Angle clamp compensating and workpiece information storage
Qualified quantity showed that adjustment function measurement cycle
Signal amplifier amplification and manual adjustment, signal self-check, automatic diagnosis
Vector graphics, waveform and out of balance, shows at the same time
Surplus balabcing g and unbalanced torque, the g cm, g mm can choose to display
Optional function
1. Angle tracking function
2. automatic stopping after complete measurement
3. the model YYQ-160A and below this model,Automatic positioning function after parking
4.vector angle decomposition function
Feature:
schenck balancing machine

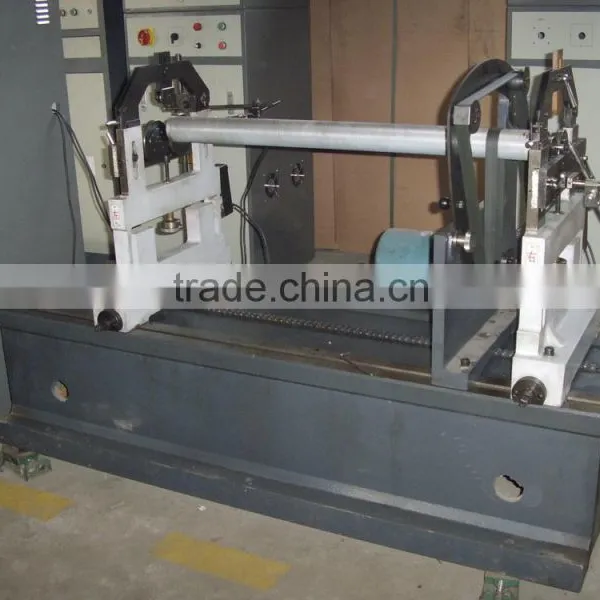

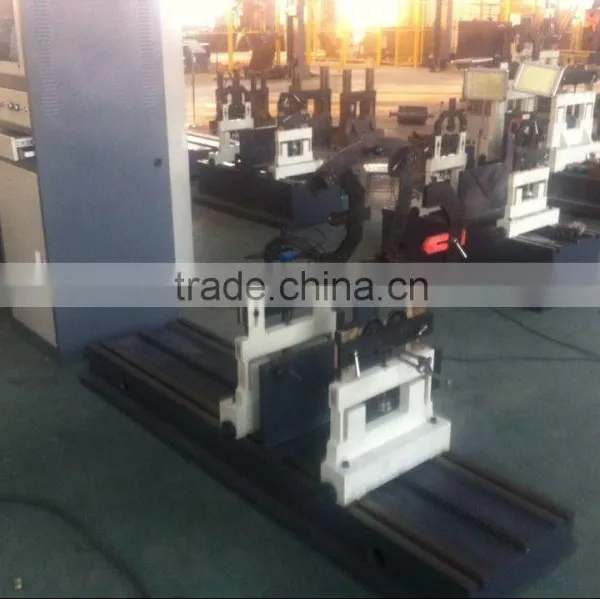

Features: the series is hard bearing horizontal dynamic balancing machine, using the wheel backing, rings with drag ,the popular style is two-speed electric - driven, “A” is variable-frequency electromotor plus inverter speed, industrial control computer data processing, color screen real-time shows the value of the amount of unbalance ,phase and real-time rotational speed, bases have adopted the overall foundry, stability is good. It is widely applied in engine, wind motor, blower, diesel engine and auto parts and other range, It can balance and measure on single side, double side and many test sides, fit for axial, plate and gravity out-stretching roller. It has characterstics of high efficency, correct precision, direct display, good quality, convenient maintenance and so on, the soft has both common work piece and standard roller special functions, avoid demarcate equipment non-automatically for customers who use other hard support balancing machine measure system, and you can choose many measure method and function, it can realize to input parameter, preview, test, save results, type, use chinese menu to operate, man-machine conversation, auto prompting.
MODEL |
Max. mass of workpiece (kg) |
Max.diameter of workpiece (mm) |
Distance between two bearing suppo (mm) |
Max.rotor Diameter (mm) |
Balanncing speed min (r/mm) |
min.achievableresidual un balance(g.mm/kg): |
unbvalance reduction ratio(%): |
Drive power (kw) |
RYQ-3 |
0.1-3 |
φ350 |
30-450 |
φ3-22 |
400-10000 |
≤0.5 |
≥90 |
0.09 |
RYQ-10 |
1-10 |
φ500 |
30-600 |
φ5-60 |
400-10000 |
≤0.5 |
≥90 |
0.18 |
YYQ-5 |
0.1-5 |
φ400 |
50-600 |
φ3-40 |
400-5000 |
≤0.5 |
≥90 |
0.09 |
YYQ-16 |
0.3-16 |
φ500 |
60-600 |
φ5-40 |
400-5000 |
≤0.5 |
≥90 |
0.18 |
YYQ-50(A) |
1-50 |
φ900 |
60-800 |
φ8-70 |
300-5000 (ANeutralspeed regulating) |
≤0.5 |
≥90 |
0.75(A:0.75) |
YYQ-100(A) |
2-100 |
φ900 |
80-1000 |
φ10-140 |
300-5000 (ANeutral speed regulating |
≤0.5 |
≥90 |
0.85/1.1(A:1.5) |
YYQ-160(A) |
2-160 |
φ950 |
100-1400 |
φ10-180 |
300-2500 (ANeutral speed regulating |
≤0.5 |
≥90 |
0.85/1.1(A:1.5) |
YYQ-300A |
5-300 |
φ1200
|
150-1500 |
φ20-180
|
300-2500 Neutral speed regulating |
≤0.5 |
≥90 |
4.0 |
YYQ-500A |
10-500 |
φ1500
|
150-1500 |
φ20-240
|
180-2500 Neutral speed regulating |
≤0.5 |
≥90 |
4.0 |
YYQ-1000A |
10-1000 |
φ1500
|
150-2600 |
φ20-240 |
180-2500 Neutral speed regulating |
≤0.5 |
≥90 |
5.5 |
YYQ-1600A |
30-1600 |
φ1800 |
150-2600 |
φ20-240 |
180-2500 Neutral speed regulating |
≤0.5 |
≥90 |
7.5 |
YYQ-3000A |
100-3000 |
φ2000
|
150-2600 |
φ15-300
|
180-2500 Neutral speed regulating |
-Our service
welcome you to visit to our factory ,and show you how to operate for free
One year warranty for parts , Lifetime technical support
If you become our old customers , will give you lowest price
