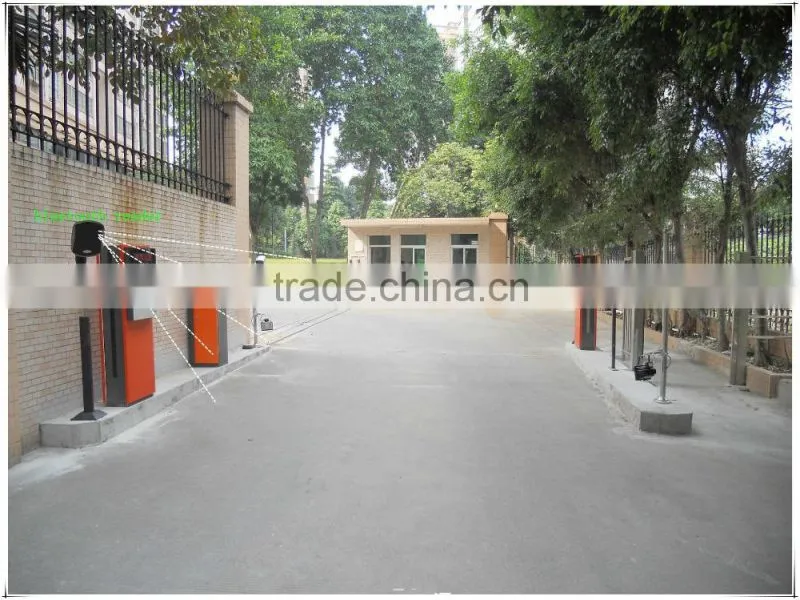

TCP/IP Interface Smart RFID parking lot managerment system
1.One-stop Car parking Products Integrated
Car Parking System Packaged List As Below:
1)Monitoring Cameras -------------2pcs
2)Vertical Card Sender/reader---2pcs
3)Road Barriers------------------- --2pcs
4)Control House---------------------1pcs(NOT INCLUDED)
5)Vehicle Detectors-------- --------3pcs
Description:
SST's Packaged one-stop Parking management system adopt stable and mature data platform, apply to Windows2000Win XP OS and SQL Server 2000 database etc., parking management system is used to control and monitor the information like the vehicle status of Entry and Exit,status of barrier gate and so on. At the same time, data processing can be transferred from client to application server and database server, accommodate large-scale and complicated application requirement. Various control parameters for parking management can be set, such as ID card detecting,ID card extend,Picture contrast etc. User can inquiry the vehicle in the parking lot, different reports can be generated and printed from the system, so as to manage the parking lot effectively.
3.
Road Barrier Size |
1300H×440W×340D(mm) |
Housing material |
Steel and Tempered glass |
Color |
Orange/ blue |
ID card read/write time |
≤0.2S |
ID card read/write distance |
≤10cm |
Radio-frequency card read/write time |
≤0.2S |
Radio-frequency card read/write distance |
≤10cm |
Paper outing speed |
≤2S |
Mode of communication |
Base RS-485, Rear TCP/IP |
Communication transmission distance |
1200m(RS-485) |
Offline storage capacity |
30000 pcs (extendible) |
Card capacity |
50000 pcs (extendible) |
Blacklist capacity |
10000 pcs (extendible) |
Data transmission speed |
4800bps/100M |
Working Temperature |
minors 30°C to 70 °C |
Working environments |
indoor, outdoor |
Relative humidity |
≤95% coagulation free |
1) Multiple network modes to realize remote data and image transmission;
2) 32-bit ARM dual-core processing technology;
3) Easy to install, debug and maintain;
4) IC, ID, bar code, RFID available in one control board
5) Extendible long distance read function;
6) Off-line working available;
7) Extendible plate-number identification and auto-printing;
8) Multiple charging mode, charging standards can be defined by the user;
9) Automatic card dispenser;
10) Voice Notice Available.
11) Flexible system configuration, can be extended to multi-level parking lot manage system;
12) waterproof, dustproof and rustproof case
Ticket box
FAQ
. How will you handle it after the guarantee expired?
If the product has problem after the warranty period,you can buy the parts from us. We will give you the cost price.
.How long is the lead time?
This depends on the qty and product.
If less than 50pcs turnstile, it will take 5 days.For parking system and hydraulic road blocker and rising bollard, it will take about 10days.
. How about the installation?
We have detailed construction diagram and wiring diagram. Video guidance or online supporting are for daily problems. Our technical and engineer support overseas service if need.
If there is still problem on installation, we can arrange our technician assistant you in long distance control.If you need a technician to be your side, we can also do that.
. We are worried about the package because sometimes,the logistics dont take care of the cargo.
- First step, we will pack the cargo by protective film, and then we will pack it by carton. The last steps we will pack with standard exporting wooden case. It is safe and solid.It will protect the devices from damage.
. Are you manufacturer?
Yes. We are manufacturer, we have own factory in Shenzhen
. What's the shipping way?
Sample: by FedEx/DHL/UPS/TNT Express, Door-to-Door, it will take 3-5working days normally. Buyer could track on their websites.
Batch goods:By Express, By Air or by Sea, Ship it according to customer asked.
Customers specifying freight forwarders or negotiable shipping methods are welcome
. What are your services?
For all your inquiries, response can be made within 24 hours.
Our company is equipped with excellent engineers and sales. We can provide you with first quality products and the best price.
OEM/ODM services are offered.
Our experienced engineers can train you how to use our products.
