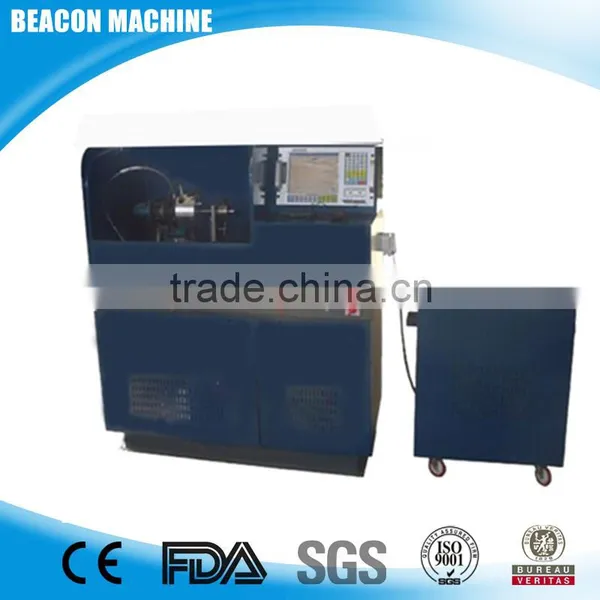

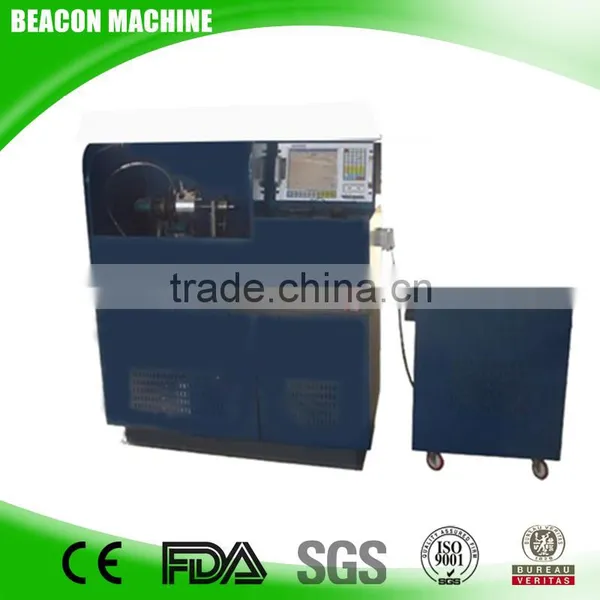

2015 BC-D3 turbocharger balancing machine for turbochager and other parts with high quality
BC-D3 is fulled automated, eliminates the differences due to manual operator. So the testing results are more repeatability and compatibility.
Its bracket and system adopt full new design, to ensure the operating more convenient and reliable.
Data reading and control system of the machine are fully digital control, using and processing by the latest generation industry computer Windows XP operating system.

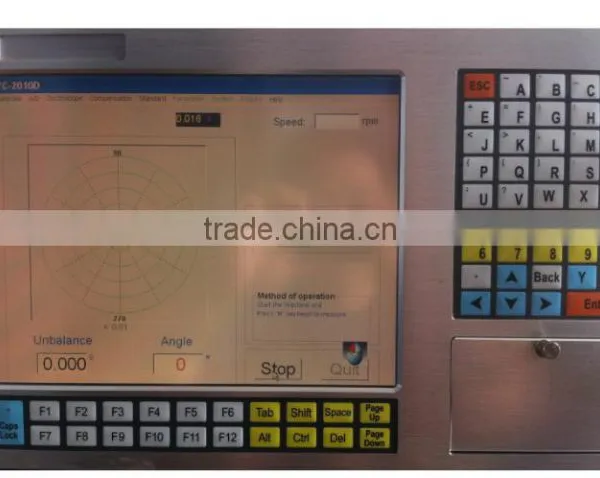

Adopting new software and 15’LCD colorful monitor , it not only make all the functions and testing results visible, and also the operator can direct dialogue with machine.
Features:
1) Frequency control, speed 0-200000R/M adjustable( according to the actual needs)
2) Test result are accurate and stable.
3) Free choice of parameters, custom memory recording mode.
4) Complete parts and accessories , to meet the requirements of the vast majority of the turbocharger.
5) equipped with compact Pneumatic handwheel, for de-emphasis, work easy and efficient.
Technical parameters:
Test Piece work rate |
0-200 , 000R/Min adjustable |
Fan power |
7.5KW |
Hydraulic |
0-6bar. |
Fuel tank |
5 liters (SAE 15/30) |
Voltage |
380V / 50-60HZ |
Our product and details
Turbocharger Balancing Machine consists of the following parts: mechanical box, electrical testing system; mechanical vibration measurement system; electrical control system; compressed air driving system; lubricants supply system; air-driven diesel incision equipment and exhaust-emission & muffler system.
1.Payment Terms: T/T( 30% deposit, balance before delivery)
L/C, Western Union
2.Packing:wooden cases ,seaworthy packing
3.Delivery Time: 7-10 days after deposit received
4.Weight:400kg size:1.55*0.8*1.55m 0.85*0.75*0.7m
More detail of pictures :
