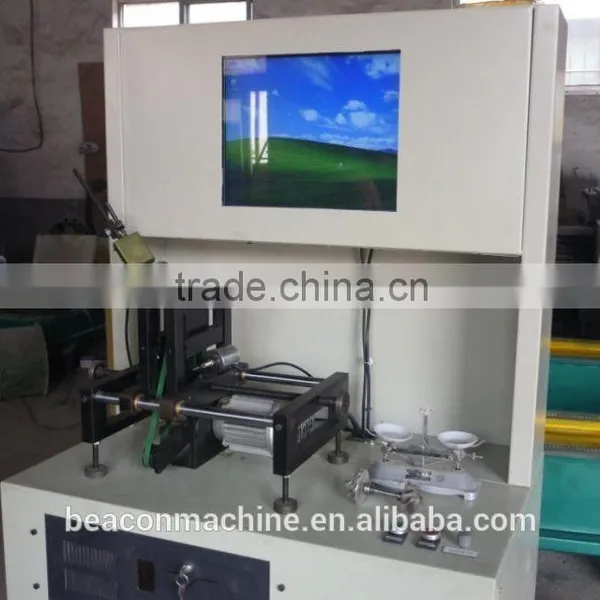

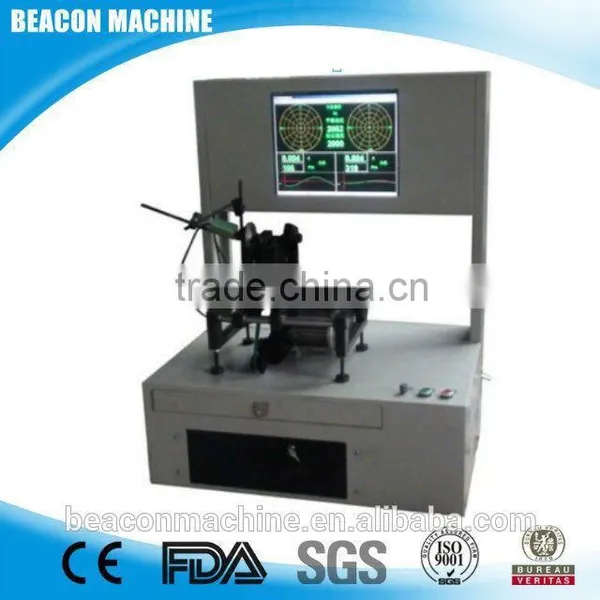

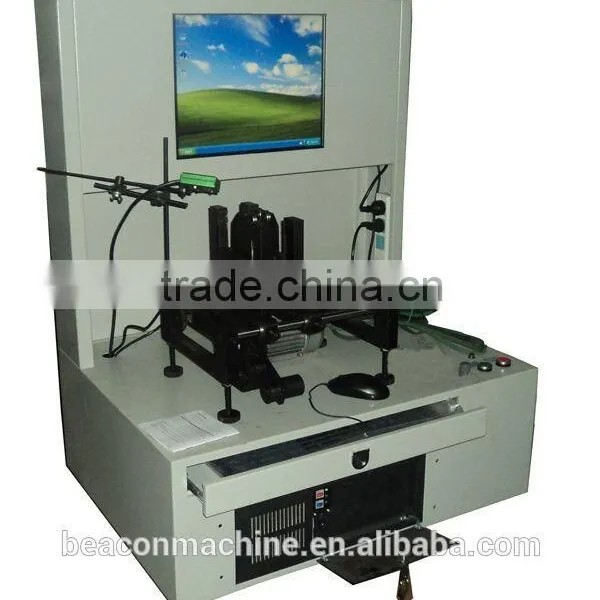

High quality RYQ-10A soft bearing portable dynamic balancing machine form manufacture
Industrial control computer 19 "LCD color screens
WidowsChinese and English system double choice
With AM-2000 general microcomputer balance measuring system
Automatic program-controlled amplifier module
Any workpiece scaling function, arbitrary Angle clamp compensating and workpiece information storage
Qualified quantity showed that adjustment function measurement cycle
Signal amplifier amplification and manual adjustment, signal self-check, automatic diagnosis
Vector graphics, waveform and out of balance, shows at the same time
Surplus balabcing g and unbalanced torque, the g cm, g mm can choose to display
Optional function
1. Angle tracking function
2. automatic stopping after complete measurement
3. the model RYQ-10A and below this model,Automatic positioning function after parking
4.vector angle decomposition function
Feature:
YYQ series universal hard backing dynamic balancing machine
Features: the series is hard bearing horizontal dynamic balancing machine, using the wheel backing, rings with drag ,the popular style is two-speed electric - driven, “A” is variable-frequency electromotor plus inverter speed, industrial control computer data processing, color screen real-time shows the value of the amount of unbalance ,phase and real-time rotational speed, bases have adopted the overall foundry, stability is good. It is widely applied in engine, wind motor, blower, diesel engine and auto parts and other range, It can balance and measure on single side, double side and m aracterstics of high efficency, correct precision, direct display, good quality, convenient maintenance and so on, the soft has both common work piece and standard roller special functions, avoid demarcate equipment non-automatically for customers who use other hard support balancing machine measure system, and you can choose many measure method and function, it can realize to input parameter, preview, test, save results, type, use chinese menu to operate, man-machine conversation, auto prompting.
Model |
Max. mass of workpiece (kg)kg |
Max.diameter of workpiece mm |
The distance between the two bearing mm |
Bearing diameter of axle in scope mm |
Drag ring diameter range mm |
balancing speedr/min |
minimum achievable residual unbalanceg.mm/kg |
Unbalance rate % |
Motor power kw |
|
RYQ-10A |
0.3-10 |
Φ350 |
30-450 |
Φ4-17 |
Beacon machine packing :
Our new appercance :
warehouse corner

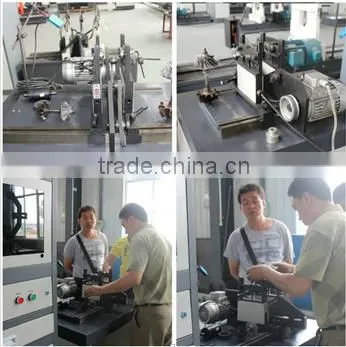

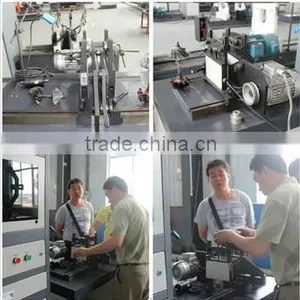

workhouse
Finished corner
>>>Welcome to contact with us
