BEACON BC-D2 Turbocharger Portable Dynamic Balancing Machine With Computer

Name: BEACON BC-D2 Turbocharger Portable Dynamic Balancing Machine With Computer
Brand: BEACON
SKU: 130660957

US$ 3,000 - 3,500 MOQ: 1 Set

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

BEACON

Model Number:

BC-D2

Taian Beacon Machine Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao or any port in China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name BEACON

Model Number BC-D2

Power Electronic

Usage Auto Testing Machine

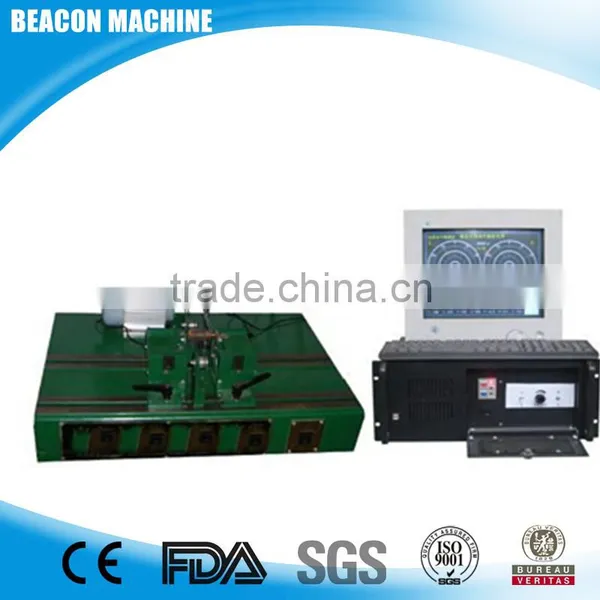

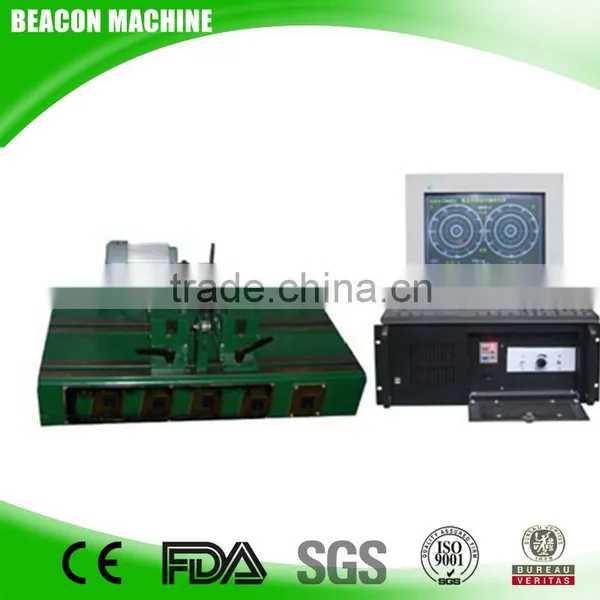

BEACON BC-D2 Turbocharger Portable Dynamic Balancing Machine with computer

Product Description

>>>INTRODUCTION

BC-D2 Turbocharger Portable Dynamic Balancing Machine with computer is an intelligent balancing measuring instrument.

The core is a microcomputer , and Using a Win XPsystem, and dynamic balance

measured with a dedicated software and hardware, you can connect the printer

print balancing measurement charts,And can automatically calculate and set the

dynamic balance of the eligibility criteria, to achieve a balance in the color displays automatically when required, is straightforward and accurate.

>>>TECHNICAL PARAMETER

Number of emendation sides	one side(static balancing), two sides(dynamic balancing)
Number of measuring points	2 vibration signals, 1 phase/rotate speed signals
Combined with mechanical system	Unbalancing reduce rate URR: ≥95%
Minimum achievable residual unbalancing value	0.1~0.3μm,0.1g mm/kg
Dynamic bound	78db
Balancing rotate speed	120--10000rpm
Extent precision	1%
Phase precision	1°
Size	180(High)×445(Width)×480(Depth) mm
Weight	39kg
Power supply	AC180--260V 50Hz
Temperature	-20--40°C
