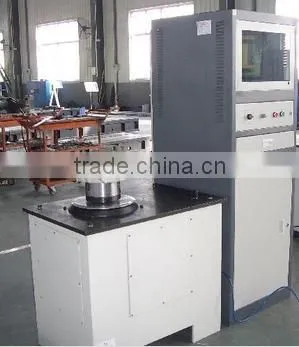

Taian beacon manufacturer YLD-16C drive shaft single plane fan flywheel balancing machine
Main Specifications:
High quality Windows XP YLD-16C single plane vertical balancing machine device maximum bearing weight 16Kg, in the license conditions permit short-time overload
GD2.
Machine structure
Machine size (L * W * H): 800 * 700 * 700
Beautiful thick steel welded cabinet exterior protective design, machine stability far exceeding the
domestic industry..
Drive mode:
Inverter + motor + V-ribbed belt drive
Output speed is about balance: 200-1500 rpm
Minimum achievable residual unbalance (emar): ≤3gmm / kg.
Electrical control:
High-end cabinet control
Electrical control:
High-end cabinet control
British Witten converter (A-share listed companies), can be achieved without the impact of soft start and
brake, ensure equipment accuracy and service life; through technical innovation, since 2006, I produced
all using the same balancing machine motor power inverter, so that the device during use, the motor
output power losses to a minimum, making the equipment more energy efficient, more environmentally
friendly, constant torque output of the design to ensure that the situation never ribbed belt drive breakage
occur, while ensuring that small parts when the balance remains constant torque, variable power output save electricity
Measurement System:
Self-developed HBM-101 Windows balancing machine for measuring software, intuitive display,
measurement precision.
Device Configuration:
1, the installation and the spindle support frame on the base 1 set
Flexible Beam Using 65Mn spring plate, can accurately capture the vibration signal, the overall structure,
behind the elastic beam assembly equipped with a piezoelectric sensor, vibration detector for swing
frame
2, High quality Windows XP YLD-16C single plane vertical balancing machine the main components of the host:
YLD-16C host part :
the overall base 1;
Spindle 1 set;
1.1KW motor 1; aluminum dial 1
The reference signal sensor 1 set;
3,Strong electric part including: a strong power of a control cabinet, control cabinet front operator
control panel is equipped with a power switch, start and stop knobs, speed control
knob, and a strong electrical installation in a vertical industrial control circuit board
inside the enclosure, air switch British Witten converter, controls two balancing
machine host, the inverter dedicated filter means above all low-voltage electrical.
Rotors
Our new appercance :
warehouse corner
workhouse
>>>Welcome to contact with us
