Dynamic Balancing HBQ -50a Dynamic Balancer With High Quality

Name: Dynamic Balancing HBQ -50a Dynamic Balancer With High Quality
Brand: beacon
SKU: 130665663

Dynamic Balancing HBQ -50a Dynamic Balancer With High Quality thumbnail-1

Dynamic Balancing HBQ -50a Dynamic Balancer With High Quality photo-1

US$ 5,000 - 7,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Shandong, China

Brand Name:

beacon

Model Number:

HBQ -50a

Contact Supplier Request Quote Chat Now

Taian Beacon Machine Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shandong, China

Brand Name beacon

Model Number HBQ -50a

Power Electronic

Usage Balancing Machine

Product Description

Dynamic balancing HBQ -50a dynamic balancer with high quality

HBQ -50a

Assembly HBQ -50a

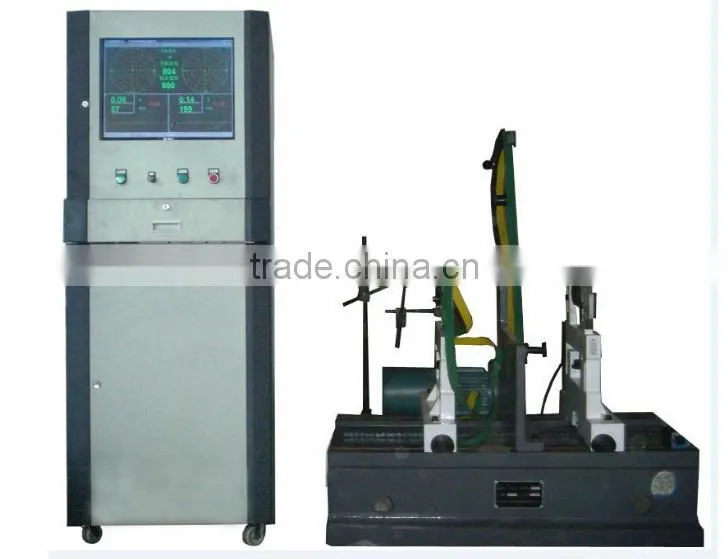

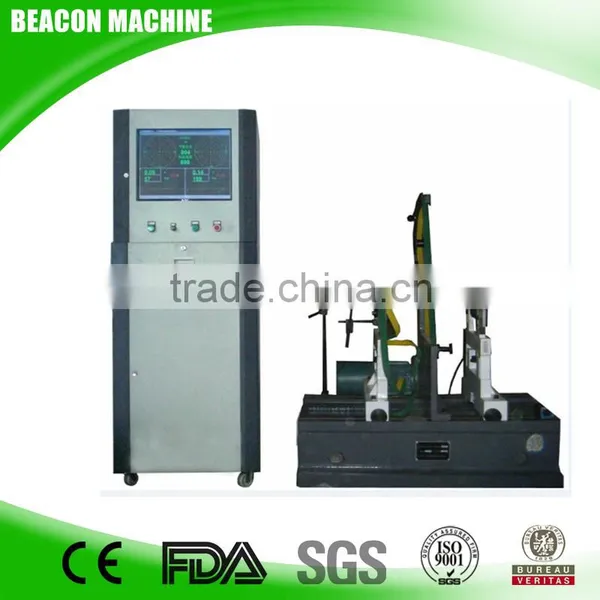

This series is hard supporting horizontal dynamic balance machine, with roller bearing, the circle take drag, regular for double speed motor drive, "A" type for frequency conversion motor speed and frequency converter, the industrial control computer for data processing, color screen real-time display don’t balance phase Angle and value, real-time speed, lathe bed all use whole casting, the stability is good.Widely used in electric motors, blower, diesel engine, auto parts, etc, can be in the single side, double side and multiple correction plane balance measurement, suitable for axle, dish out and center of gravity of the rotor. Have high efficiency, precision accurate, show intuitional, reliable quality, easy maintenance, the characteristics of software with ordinary workpiece and standard rotor two calibration function, overcoming the other hard supporting balance machine measurement system to users to calibration equipment of the defect, and a variety of measurement method and function to choose, can realize the input parameters, preview, the experiment, the results storage, print, operating all adopt the localization menu structure, the man-machine dialogue, automatic hints.
Details at a glance
industrial control computer 19 "LCD color screens

Windows XP Chinese and English system double choice
With GB-2000 general microcomputer balance measuring system
Automatic program-controlled amplifier module
Any workpiece scaling function, arbitrary Angle clamp compensating and workpiece information storage

Qualified quantity showed that adjustment function measurement cycle
Signal amplifier amplification and manual adjustment, signal self-check, automatic diagnosis
Vector graphics, waveform and out of balance, shows at the same time
Surplus balancing g and unbalanced torque, the g cm, g mm can choose to display

Optional function
1.  Balance Angle automatic tracking function
2.  Parking automatic positioning function
3.  Vector Angle function decomposition
4.  Lathe bed according to user requirements lengthen
5.  Supporting shaft neck can according the user demand increased

Model		HBQ-5		HBQ-20		HBQ-50
Working piece quantity range:kg		0.1-5		0.3-20		1-50
Working piece diameter:mm		Φ400		Φ500		Φ800
Distance between two supporting:mm		50-600		60-600		80-800
Shaft diameter range: mm		Φ3-40		Φ5-40		Φ10-80
Diameter range at the lap belt drag mm		Φ15-150		Φ15-150		Φ18-250
Balancing speed:r/min		400-2500		400-2500		300-2500
Min. achievable residual unbalance:gmm/kg		≤0.5		≤0.5		≤0.5
unbalance reduction ratio:%		≥90		≥90		≥90
Driver power:KW		0.18		0.18		0.75
speed adjustment mode:		Frequency		Frequency		Frequency
model	HBQ-100		HBQ-200		HBQ-300		HBQ-500	HBQ-K1
Mass of workpiece:kg	1-100		2-200		5-300		10-500	10-1000
Max.diameter of workpiece:mm	Φ900		Φ1000		Φ1200		Φ1600	Φ1600
Distance between two supporting mm	80-1100		100-1100		150-1500		150-1500	150-2600
Shaft diameter range: mm	Φ10-90		Φ10-90		Φ20-90		Φ20-130	Φ20-130
			Φ90-180Optional		Φ90-180Optional		Φ120-240Optional	Φ120-240Optional
Diameter range at the lap belt drag:mm	Φ30-300		Φ30-300		Φ30-450		Φ40-500	Φ40-650
Balancing speed: r/min	300-2500		300-2500		300-2500		300-2500	180-2500
Min. achievable residual unbalance: gmm/kg	≤0.5		≤0.5		≤0.5		≤0.5	≤0.5
unbalance reduction ratio: %	≥90		≥90		≥90		≥90	≥90
Driver power: KW	1.5		1.5		4.0		4.0	5.5
speed adjustment mode:	Frequency		Frequency		Frequency		Frequency	Frequency
Model	HBQ-K2		HBQ-K3		HBQ-K5		HBQ-K8	HBQ-K20
Working piece quantity range: kg	30-2000		100-3000		300-5000		400-8000	1000-20000
Working piece diameter: mm	Φ1800		Φ2000		Φ2400		Φ2400	Φ2800
Distance between two supporting” mm	200-2600		200-2600		300-3500		300-3500	300-5200
Shaft diameter range: mm	Φ20-130		Φ20-130		Φ20-150		Φ40-180	Φ50-260
			Φ120-240		Φ130-260		Φ120-320
	Φ120-240Optional		Φ190-300 Optional		Φ210-360 Optional		Φ280-380 Optional	Φ240-500
Diameter range at the lap belt drag :mm	Φ40-800		Φ40-900		Φ250-900 Diameter can be increased to:1200		Φ250-900Diameter can be increased to:1200	Φ300-2000
Balancing speed: r/min	180-2500		180-2500		180-1800		180-1800	180-800
Min. achievable residual unbalance: gmm/kg	≤0.5		≤0.5		≤0.5		≤0.5	≤0.5
unbalance reduction ratio: %	≥90		≥90		≥90		≥90	≥90
Driver power: KW	7.5		11		15		15	37
speed adjustment mode:	Frequency		Frequency		Frequency		Frequency	Frequency
