LOW VOLTAGE POWER DISTRIBUTION CABINET GGD
ABOUT SHOUGUANG JUNENG ELECTRIC CO., LTD
PRODUCT FEATURES

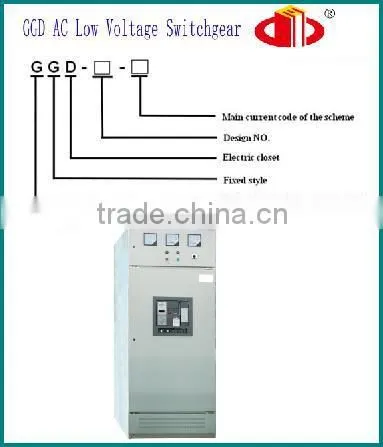

Model
Service Condition
1. Ambient temperature: -5'C~+40'C. Average temperature in 24 hours <= 35'C.
2. Altitude: less than2000m.
3. Air humidity at 40'C <=50%. Higher humidity at lower temperature is permitted. Occasional condensation due to temperature variation should be considered.
4. No excessive vibration.
5. No corrosion to electric elements.
Special condition subject to customers.
Description
1.it applies to power plant, substation, industrial enterprises etc for distribution system under frequency 50HZ, rated voltage 380V and rated current up to 3150A.
2.the cabinet structure is assemblyed with 8MF cold formed steel.
3.the cabinet protection grade is IP30. IP20-IP40 could be optional acc to the requirements of service condition.
4.the cabinet is painted with polyester varnish and appears honed.
Technical parameter
Model No |
Rated voltage(v) |
Rated current(A) |
Rated short-time breaking current(kA) |
Rated short-time withstand current(1s)(kA) |
Rated peak withstand current (kA) |
|
GGD1 |
380 |
A |
1000 |
15 |
15 |
30 |
B |
600(630) |
|||||
C |
400 |
|||||
GGD2 |
380 |
A |
1500 |
30 |
30 |
63 |
B |
1000 |
|||||
C |
|
|||||
GGD3 |
380 |
A |
3150 |
50 |
50 |
105 |
B |
2500 |
|||||
C |
2000 |
|||||
What we can do better
- Quality Assurance--From the very beginning, JUNENG ensures quality in every step to achieve the best quality.
- Experience Sharing--With over 10 years’ experience in power industry, JUNENG brings you an optimized solution.
- Quick Response--In response to your needs without delay, JUNENG knows the value of your time..
:
Low Voltage Switchgear Display
Workshop & Equipment
Busbar processing center
|
|
Switchgear assembly line
|

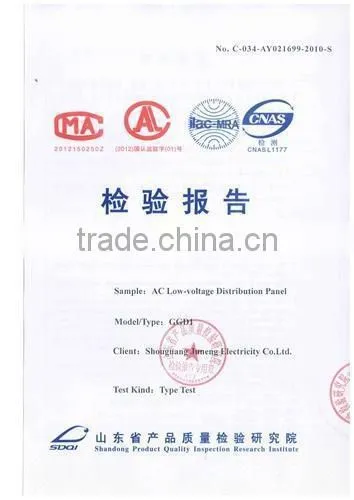

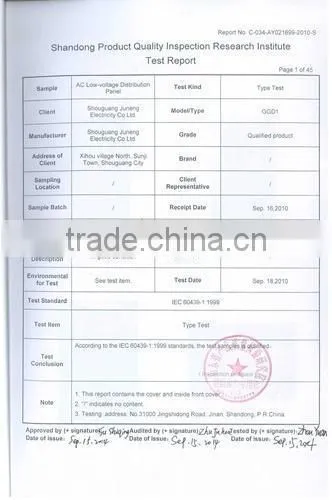

certificate
|
|
|
Any inquiry or question, pls contact me.
