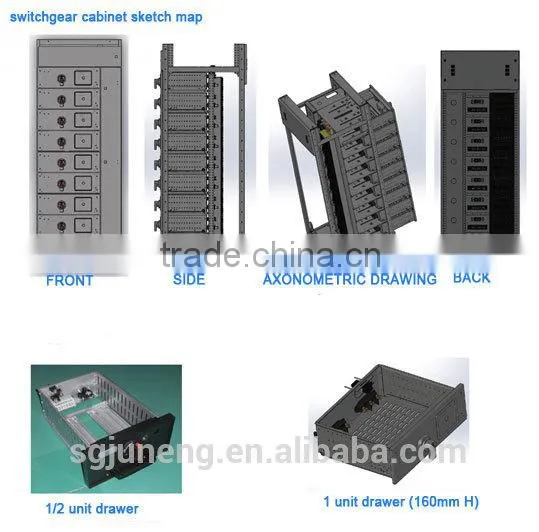

GCS SERIES 50/60HZ WITHDRAWABLE LOW VOLTAGE ELECTRICAL DISTRIBUTION CABINET
ABOUT SHOUGUANG JUNENG ELECTRIC CO., LTD
GCS PRODUCT FEATURES
Service Condition
1. Ambient temperature: -5'C~+40'C. Average temperature in 24 hours <= 35'C.
2. Altitude: less than2000m.
3. Air humidity at 40'C <=50%. Higher humidity at lower temperature is permitted. Occasional condensation due to temperature variation should be considered.
4. No excessive vibration.
5. No corrosion to electric elements.
Special condition subject to customers.
Main circuit rated voltage (v) |
AC380(400)(660) |
|
Auxiliary circuit rated voltage (v) |
AC220/380(400),DC110/220 |
|
Rated frequency (Hz) |
50(60) |
|
Rated insulation voltage(v) |
660(1000) |
|
Rated current(A) |
Horizontal busbar |
up to 4000 |
Vertical busbar(MCC) |
1000 |
|
Busbar rated short-time withstand current(kA/1s) |
50(80) |
|
Busbar rated peak withstand current(kA/0.1s) |
105(176) |
|
Power frequency test voltage (v /1min) |
Main circuit:2000 |
|
Auxiliary circuit:2000 | ||
Busbar |
three-phase four-line type |
A/B/C/PEN |
three-phase five-line type |
A/B/C/PEN/N |
|
Degree of protection |
IP30 IP40 |
|
DIMENSION (mm)
| H | W | D |
| 2200 (when the underframe 40mm is added to the bottom, the real height is 2240mm ) | 400 | 800 |
| 1000 | ||
| 600 | 800 | |
| 1000 | ||
| 800 | 600 | |
| 800 | ||
| 1000 | ||
| 1000 | 600 | |
| 800 | ||
| 1000 |
WHAT WE CAN DO BETTER
- Quality Assurance--From the very beginning, JUNENG ensures quality in every step to achieve the best quality.
- Experience Sharing--With over 10 years’ experience in power industry, JUNENG brings you an optimized solution.
- Quick Response--In response to your needs without delay, JUNENG knows the value of your time.
OUR MAIN SWITCH PANEL
OUR MAIN EQUIPMENT OF SWITCH PANEL WORKSHOP
OUR PROCESSING AND ASSEMBLY
OUR TEST AND INSPECTION OF EVERY BATCH BEFORE DELIVERY
OUR PACKING AND DELIVERY
OUR MAIN CERTIFICATE
OUR SERVICE
Any inquiry or question, pls contact me.
