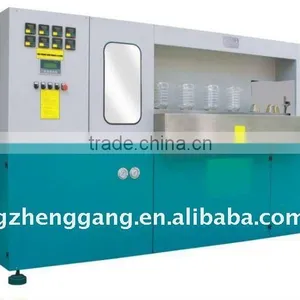

Help CenterPET Sauce Jar Bottle Blowing Molding Machine
Related Products
-
Food Jar Stretch Blow Molding MachineNegotiableMOQ: 1 Set -
Thermoforming Blow Molding Machine for PET JarUS$ 1 - 2MOQ: 1 Set
-
PET Beverage Bottle Making MachineUS$ 8 - 10MOQ: 1 Set
-
Cosmetic Bottles Blowing MachineUS$ 8 - 10MOQ: 1 Set
-
Single Cavity Bottles Blowing MachineUS$ 10 - 30MOQ: 1 Piece
Detailed Product Description of sauce Jar bottle blowing molding machine:
Single Cavity,700bph for 1500ml, could blow all kinds of shapes, different volumes of beverage bottle, candy-jars, edible oil bottle, sauces bottle, detergent bottle, cosmetic bottle, medicine bottle, health products and other shapes of containers using PET as material.
Preform material:PET
Output:700BPH(1500ml)
Features of sauce Jar bottle blowing molding machine:
1.Using hydro-pneumatic linkage mold clamping mechanism which runs stably with high speed and great clamping force.
2.The control system adopts man-machine interface with Mitsubishi PLC which is of high sensitivity and accuracy.
3.Using coated infrared heating lamps which enable fast and stable heating.
4.Using centralized noise-reducing air recycling system which minimize the noise as much as possible.
5.Using slide core in stepping unit which is easy to operate and saves energy.
Parameters of sauce Jar bottle blowing molding machine:
Item |
HGA.C-1C |
|
Container |
Max. Container Volume |
1500 ml |
Neck Diameter Range |
90 mm |
|
Max. ContainerDiameter |
100 mm |
|
Max. Container Height |
240 mm |
|
Theoretical Output |
600-700 bph |
|
Molding |
Clamping stroke |
150 mm |
Stretching stroke |
350 mm |
|
Bottom Stoke |
50 mm |
|
Preform distance |
130 mm |
|
Preform Holder |
46 pcs |
|
Cavities |
1 No. |
|
|
Electrical System |
Max. Heating Power |
16 kw |
Heating Power |
10 kw |
|
Air System |
Operating Pressure |
7-8 kg/c m2 |
Low Air Consumption |
1200 ltr/min |
|
Blowing Pressure |
35 kg/c m2 |
|
High Air consumption |
1200 ltr/min |
|
Cooling Water |
Operating Pressure |
5-6 kg/c m2 |
Temperature |
8-10°C |
|
Flow rate |
30 ltr/min |
|
Machine |
Size(L×W×H) |
3100×1400×1780mm |
Weight |
2000 kg |
|

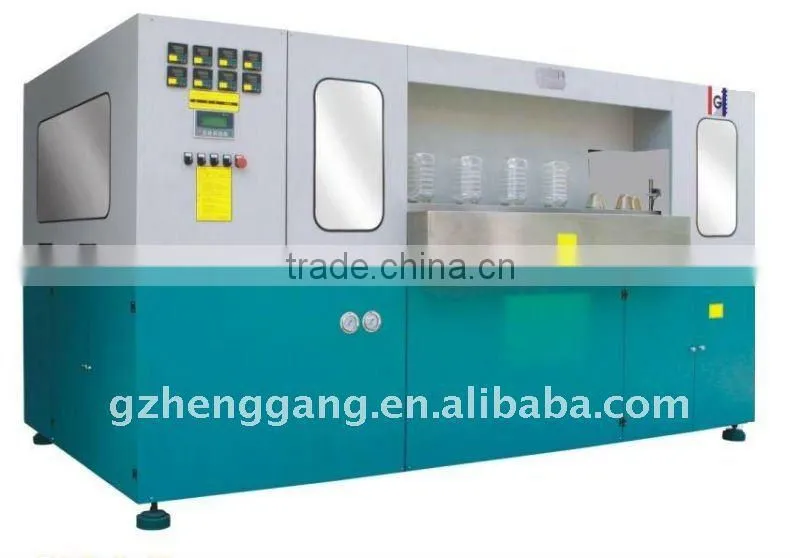

Machine Picture of sauce Jar bottle blowing molding machine:

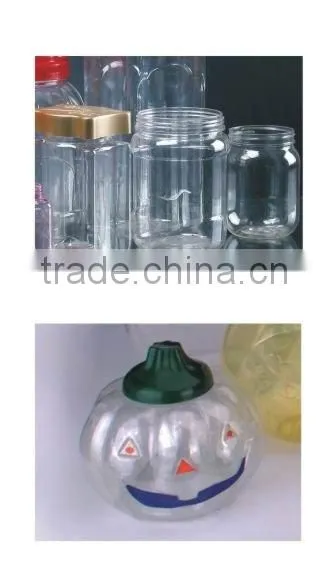

Product made by sauce Jar bottle blowing molding machine:
All the cavity molds(moulds)of sauce Jar bottle blowing molding machine are manufactured by ourselves. We have our own CNC processing machine and experienced engineer, who has been making cavity molds at least 5 years. Besides the cavity molds, other hardware parts are also produced by ourselves. Thus we have strong confidence in the stability of our machine because all parts can jointed and worked as a integrated unit.
The most frequently used material for molds are Aluminum, S136(stainless iron):
Our sauce Jar bottle blowing molding machine has already accquired the CE certificate:
Other domestic patents of our auto sauce Jar bottle blowing molding machine:
