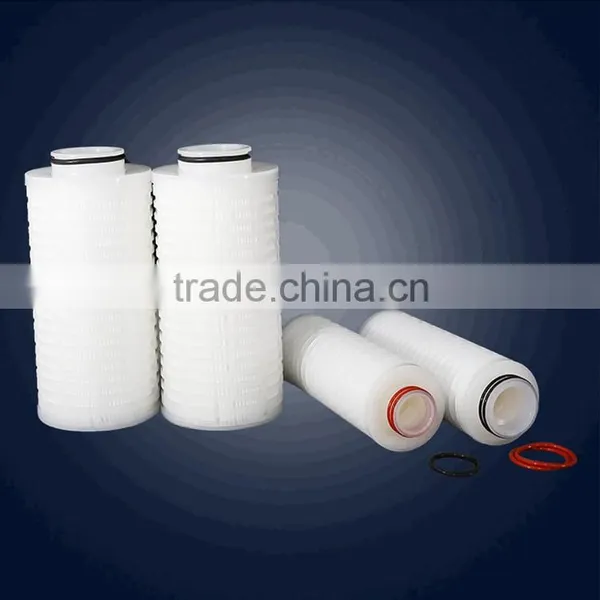

PES Pleated Cartridge
TANVI PES pleated cartridge is consist of asymmetry PES membrane from GERMANY
“MEMBRANA” and import diversion layers and the production process including pleat, edge seal
for filter material, fix outer cover of core and welding end cover without any adhesive and non-fiber-releasing. This kind of filter cartridge can be used to depth filtrate of fluid, and as the
pretreatment and filter unit this cartridge is very popular in the filter industry. It plays an important
role in the media filtration and water treatment industries, such as pharmaceutical industry, chemical
industry, energy industry and environmental industry. PES membrane micropore pleated filter
cartridge (pleated filter cartridge) is the core part to guarantee the filter fineness, which consist
of PES membrane, support layer, cage and seal rings etc.
PES pleated cartridge widely used as remove particles and remove bacteria in electronic
high-purify water and electronic chemicals, bio-pharmaceutical and food & beverage,
such as draft beer filtration and grape wine sterile filtration.
1. PES pleated cartridge technology data(10″monolayer or bilayer)
Material of construction |
Membrane |
PES membrane |
Diversion layer |
PP fiber or screen fabric |
|
Housing |
PP |
|
Membrane support |
PP or stainless liner |
|
Dimension |
OD |
Φ68mm Φ69mm |
ID |
Φ32mm |
|
length |
2.5~40" |
|
Seal ring |
Silicone,EPDM,Nitrile,Fluorous,Fluorous with PTFE, |
|
Precision |
0.10,0.20,0.45,0.65,1.2µm |
|
Effective filtration area |
≥0.65m² |
|
Operating requirements |
PH value |
1~14 |
normal working temperature |
≤60℃ |
|
ing temperature |
85℃,Pressure difference≤0.10Mpa |
|
Max.differential pressure |
25℃,forward direction 0.42Mpa,reverse direction 0.21MPa |
|
Sterile requirements |
121±2℃ steam for 30min/ once or sterilization cabinet 30min/once. |
|
Educt |
Endotoxin |
<0.25EU/ml |
Extractive |
<0.03g/10"cartridge |
|
|
Electronic grade
|
Hundred thousand grades purify workshop + high-purify backwash, which satisfy with electronic requirements. Inner and outer diversion layer are the import long fiber fabric and the rejection rate is 99.9999% . |
|
|
Pharmaceutical grade
|
Hundred thousand purify workshop + second level RO purify water backwash, which meets with GMP standards. Inner and outer diversion layers are the import long fiber fabric and the rejection rate is 99.9999% . |
|
|
Food grade
|
Hundred thousand grades workshop + high-purify water, which meets with FDA regulations Inner diversion layer: import PP long fiber fabric, outer diversion layer: domestic fiber fabric, rejection rate is99.98%. |
|
2. PES cartridge mainly characteristics
l Asymmetry PES membrane is 2.5 times better than other filter material ,which has better hydrophilia and
high flow rate and high poriness.
l Traceability and easy to identify for each one has name and code.
l Conductivity and TOC meet with USP limits of sterile water
l Adopt fluid dynamics design, high effective
l 99.9999% precision
l 100% integrity test
l Certificate for each product
l Without adhesives and safety and reliability
l No-fiber-releasing
l Great temperature tolerance
l Low protein adsorption
3. PES typical applications
l electronic grade
Applications: ultrapure water manufacture, CD, display screen, final filtration of polysilicon production,
electronic chemicals.
l pharmaceutical grade
Applications: Buffer solution, blood serum, biological products, nutrient solution, eye drops, injection,
protein solution, feedstock of fermentation tank, antibiotics.
l Food grade
Applications: Beverage, wine, drinking water, juice, syrup, seasoning, dairy product, edible oil,
aginomoto and food additives.
