Specifications
DNW Digital Display Torsion Testing Machine, torque testing machine Metal Wire Material Torsion Testing Machine

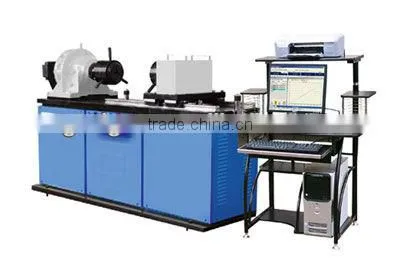

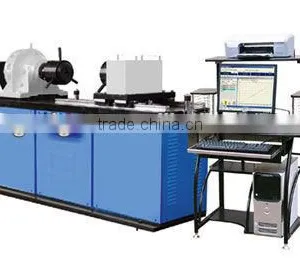

NDW Series Computerized Torsion Testing Machine (500Nm, 1000Nm, 2000Nm)
1. Main function
The loading system of this machine, controlled by computer, rotates load through alternating servo motor and cycloidal gear reducer. Torque and twist angle detection uses the high-precision torque sensor and a photoelectric encoder; computer displays dynamically the curve of test torsion angle and torque, rate of loading, peak of power and so on.
Main technical parameters
1. Maximum torque of test (Nm): 500, 1000, 2000
2. Relative error of torque: ≤±1%;
3. Range of torsion angle measure: 0~9999.9°;
4. Relative error of torsion angle: ≤±1%;
5. Display of torsion angle: Minimum resolution 0.1°;
6. Angle of twist in small-angle measurement: Minimum of resolution 0.0001°;
7. Maximum distance between two collets(mm): ≥500;
8. Diameter of clamping sample(mm): φ6~φ20mm;
9. Range of reverse speed: 0~540°/min, Variable speed;
10. Precision of speed: ±1%;
11. Direction of test rotation: Bidirectional;
12. Power supply: 220V±10%,50Hz
