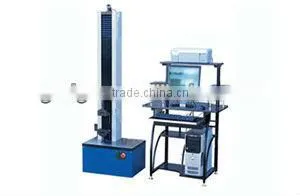

| WDW Series Computerized Electronic Universal Testing Machine (Single beam, 1kN, 2kN, 5kN) |
1. Introduction:
WDW Series computerized electronic universal testing machines are suitable for tensile, compression, shearing, peeling, tearing etc test of metal materials and non-metal materials, like rubber, plastic, cable wire, composite material, plastic profile, spring, etc. It conforms to GB, ISO, JIS, DIN, ASTM, etc standards. It also supports customized designed software, which is an ideal testing machine for quality control department, scientific research, universities and colleges, industrial and mining enterprises.
2. Main Technical Parameters
|
Model Specification |
WDW-1A |
WDW-2A |
WDW-5A |
WDW-1 |
WDW-2 |
WDW-5 |
Range of testing force (kN) |
0.01~1 |
0.02~2 |
0.05~5 |
0.01~1 |
0.02~2 |
0.05~5 |
Accuracy of testing force |
±1% of indicated value |
|||||
Resolution of testing force |
Max. testing force 1/30000, no subsection or five subsection |
|||||
|
Relative error of displacement |
±0.5% |
|||||
|
Resolution of crosshead displacement |
0.01 |
|||||
Speed Range of crosshead |
0.01mm/min~500mm/min, servo control |
|||||
Effective testing space |
800 |
|||||
Power supply |
220V±10%, 50Hz |
380V±10%, 50Hz |
||||
Working environment |
Room temperature~30°C, relative humidity<80% |
|||||
Main configuration |
Imported AC Servo motor and driver |
|||||
Overall dimension (mm) |
600×420×1700 |
|||||
Weight (kg) |
300 |
|||||
3. Function and Features:
Host machine
3.1.Imported Germany MOTEC full digital AC servo motor and servo driver, which has advantages of high accuracy, stable working performance, low noise, quick response and multi-protections, like over load protection, over heat protection, etc.
3.2 It adopts precision ball leading screw and precision reducer, stable drive, low noise and no clearance.
