Specifications

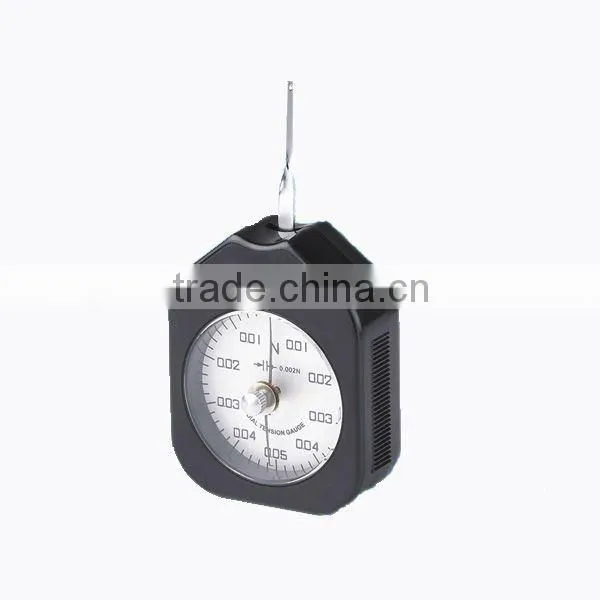

ATN Series Tension Meter,Tension GaugeATN Series Tension Meter,Tension Gauge
Product:
ATN Series Tension Meter,Tension Gauge is suitable for relay tip pressure, electronic switch, microswitch, valve, spring pull pressure, dial measure equipment principal axis pressure, dial system equipment tip and the gag bit mechanical pressure, tape recorder buffer mechanism pressure, and other precise pressures, pulling force test.
Character:
Easy to operate
Exquisite outline
When test, use the needle move the object from static state to the position needed. The tension gauge test not only along clockwise, but also along the anti-clockwise. The needle must always plumb to the push-pull force direction. Tension gauge set off single needle and dual needle. When the dual needle tension gauge gets the highest value, the needle hold still, convenient user to read.
Specification:
| Types | Max. measured value | Division value | Measuring range |
| ATN-0.05 | 0.05N | 0.002N | 0.01-0.05-0.01 |
| ATN-0.1 | 0.1N | 0.005N | 0.02-0.1-0.02 |
| ATN-0.3 | 0.3N | 0.01N | 0.06-0.3-0.06 |
| ATN-0.5 | 0.5N | 0.02N | 0.1-0.5-0.1 |
| ATN-1 | 1N | 0.05N | 0.2-0.1-0.2 |
| ATN-1.5 | 1.5N | 0.05N | 0.3-1.5-0.3 |
| ATN-3 | 3N | 0.1N | 0.6-3-0.6 |
| ATN-5 | 5N | 0.2N | 1-5-1 |
