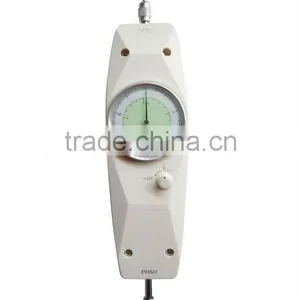

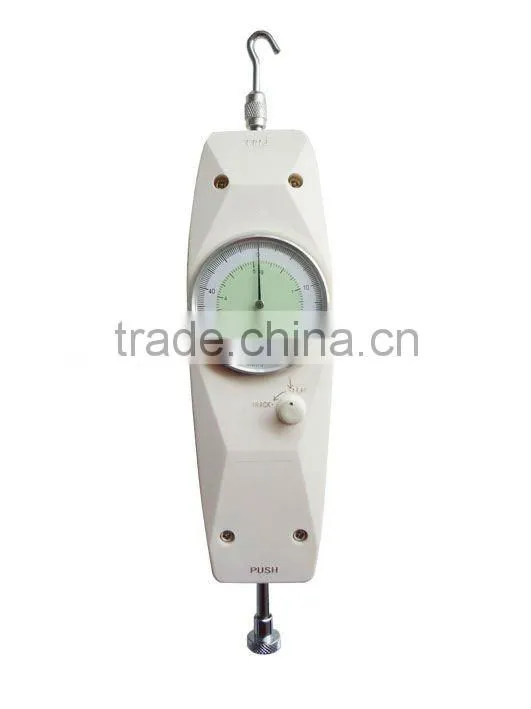

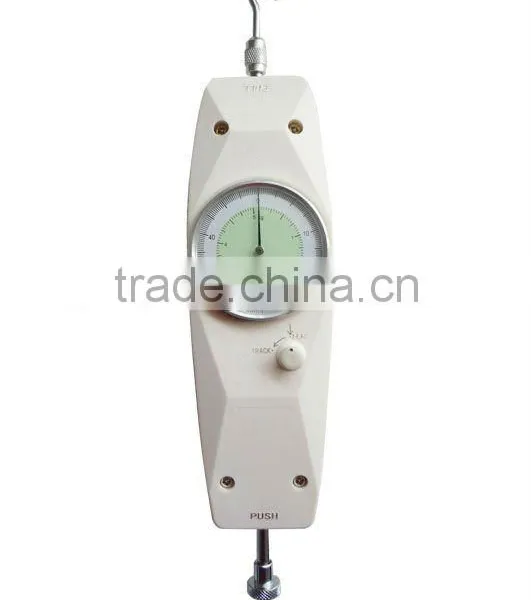

NK Series Analog Force Gauge(0-500N)
US$ 45 - 60
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
GRAIGAR
Model Number:
NK-500
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ANH Digital Torsional Spring Tester (100mN.m-1000N.m)US$ 1,400 - 3,200MOQ: 1 Set -
ANL-P Series Cap Torque Gauge(1-20N.m)US$ 950 - 1,300MOQ: 1 Set
-
AAJ Series Keystroke Test Stand(Max Load 300N)US$ 200 - 260MOQ: 1 Set
-
ADN Digital Dynamic Torque Meter (10N.M-10000N.M)US$ 2,300 - 5,000MOQ: 1 Set
-
ANJ Digital Torque Wrench TesterUS$ 1,500 - 2,900MOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
GRAIGAR
Model Number
NK-500
Specifications
NK Series Analog Force Gauge(0-500N)NK Series Analog Force Gauge(0-500N)
Product:
NK Series Analog Push Pull Gauge (0-500N) with compact size and high accuracy. They are easy to operate and handy. Single click on a knob on the device will convert the movement of the indication needle from the peak force indication (the needle stands still indicating peak force)to the tracking indication(the needle moves in accordance with change of force).As two types of scales (Newton scale and kilogram scale) are available and you can choose the most suitable graduation from the range of 10N(1kgf) to 500N(50kgf) for your measurement purpose.
Description:
Model |
NK-10 |
NK-20 |
NK-30 |
NK-50 |
NK-100 |
NK-200 |
NK-300 |
NK-500 |
Capacity |
10N |
20N |
30N |
50N |
100N |
200N |
300N |
500N |
Resolution |
0.05N |
0.1N |
0.2N |
0.25N |
0.5N |
1.0N |
2.0N |
2.5N |
Stroke |
10mm |
|||||||
Dimension |
260x66x36mm (10.3x2.6x1.45 inch) |
|||||||
