Specifications
1.ASZ Rope Tension Equipment (20KN-200KN)2.Simple to test
3.High accuracy
4.Digital display
5.One year Warranty

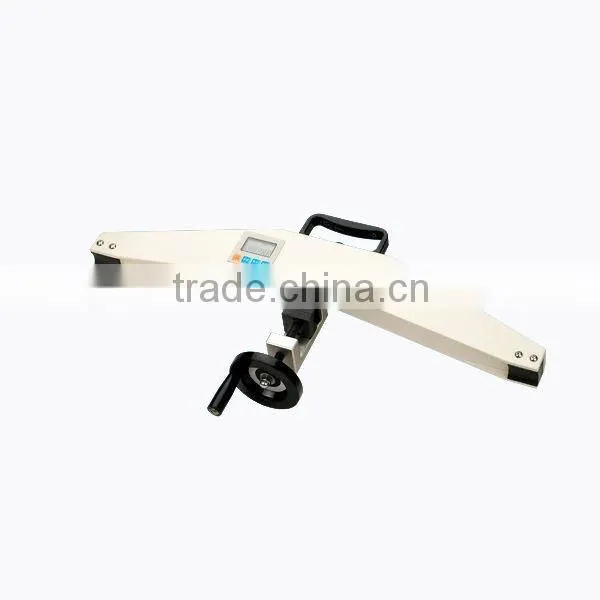

ASZ Rope Tension Equipment (20KN-200KN)
1. It has the rope structure with tension force, and can be measured directly without the need of being taken apart.
2. It has the light weight, simple structure, convenient operation, and applies to any situations.
3. It has the stable performance, high measurement accuracy, with automatic system compensation function. When the specification of the tested rope is the same as the rope tension testing instrument rope number, the measurement accuracy can reach 2% error or less within the rated measurement range.
4. It has broader range of measurement, with 15 kinds of rope-diameter measuring functions.
5. Applied range: applied to flexible, stretched ropes, such as various steel wire ropes, high-strength ropes, etc.
6. Accuracy grade: 2~6% of maximum function (depending on the rope form and features).
7. Rope Diameter: ¢6~¢40mm.
| Item No. | Maximum load value (KN) | Divided load value (KN) |
| ASZ-20KN | 20 | 0.01 |
| ASZ-50KN | 50 | 0.01 |
| ASZ-100KN | 100 | 0.1 |
| ASZ-200KN | 200 | 0.1 |
