Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > EPDM Insulated Monel Armored 5KV ESP Cable

EPDM Insulated Monel Armored 5KV ESP Cable

Name: EPDM Insulated Monel Armored 5KV ESP Cable
Brand: HI-SEA
SKU: 130805381

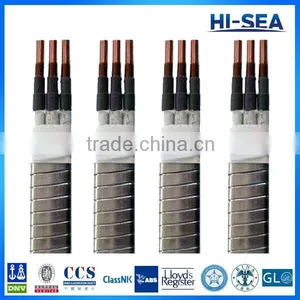

EPDM Insulated Monel Armored 5KV ESP Cable thumbnail-1

EPDM Insulated Monel Armored 5KV ESP Cable photo-1

US$ 1 - 50 MOQ: 500 Meters

Key Specifications

Get Latest Price

Place of Origin:

Chongqing, China

Brand Name:

HI-SEA

Model Number:

QYEEY

Contact Supplier Request Quote Chat Now

Chongqing Hi-Sea Marine Equipment Import & Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Chongqing, China

Brand Name HI-SEA

Model Number QYEEY

Insulation Material Rubber

Type Low Voltage

Application Industrial

Conductor Material Copper

Jacket Rubber

ESP Cable

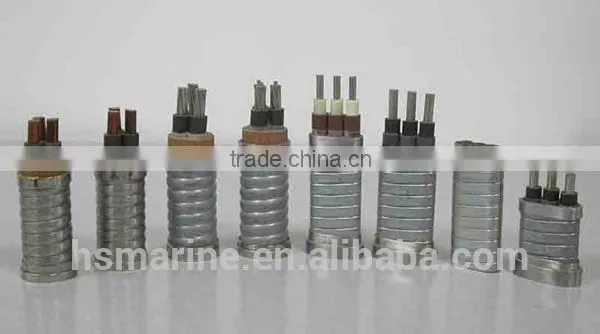

EPDM Insulated Monel Armored 5KV ESP Cable

Application:

It is applied to power supply of ESP(Electric submersible pumps) system with the rating voltage less than 3kV or 6 kV, and has an outstanding capability of oil resistance and anti-corrosive resistance. The operating temperature of the conductor is 120°C,150°C,180°C,204°C,232°C,etc.

Standard: IEEE1018 API RP 11S6 GB/T16750 JB5332 ICEA

Configuration:

Conductor —— Solid or stranded tinned copper

Insulation —— EPDM/EPR

Sheath —— EPDM/EPR

Barrier —— Oil resistant or braid tape Layer(Separator)

Armor —— Galvanized Steel/stainless Steel/Monel interlocked tape armor

3kV Type

AWG No.	Cross-section (Approximation) mm²	Conductor No./diameter mm	Insulation Thickness mm	Sheath Thickness mm	Overall Dimensions mm×mm	Reference weight kg/km
1	3×42.4	1/7.35	1.9	1.0	16×45	3544
2	3×33.6	1/6.54	1.9	1.0	15×43	3116
4	3×21.1	1/5.19	1.9	1.0	14×38	2442
5	3×16.8	1/4.62	1.9	1.0	13×36	2211
6	3×13.3	1/4.12	1.9	1.0	12×34	1989
7	3×10.6	1/3.60	1.9	1.0	11×32	1767

6KV Type

AWG No.	Cross-section (Approximation) mm²	Conductor No./diameter mm	Insulation Thickness mm	Sheath Thickness mm	Overall Dimensions mm×mm	Reference weight kg/km
1	3×42.4	1/7.35	2.3	1.0	16×47	3850
2	3×33.6	1/6.54	2.3	1.0	15×45	3320
4	3×21.1	1/5.19	2.3	1.0	14×40	2730
5	3×16.8	1/4.62	2.3	1.0	13×38	2410
6	3×13.3	1/4.12	2.3	1.0	12×36	2100
7	3×10.6	1/3.60	2.3	1.0	11×34	1790

AWG sizes are approximate equivalent values. The actual cross-section is in mm².

Submersible oil pump power cable is used for submersible oil motor power supply. inculde round and flat, also could be buildup by all the power cable types together with different stainless steel pipe/tube sizes.
