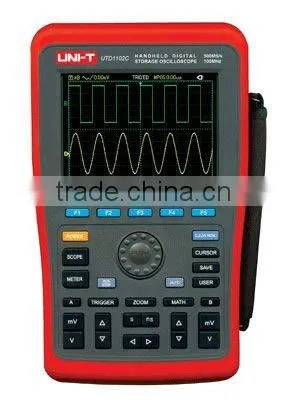

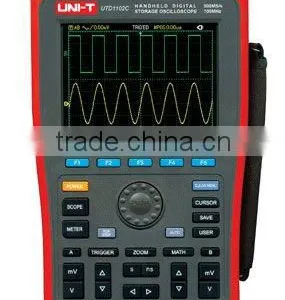

Handheld Digital Storage Oscilloscope UTD1102C

Name: Handheld Digital Storage Oscilloscope UTD1102C
Brand: Graigar
SKU: 130824449

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Graigar

Model Number:

UTD1102C

Shenzhen Graigar Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

china

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Graigar

Model Number UTD1102C

Specifications

Handheld Digital Storage Oscilloscope, digital oscilloscope,oscilloscope,UTD1102C

Handheld Digital Storage Oscilloscope UTD1102C

Multimeter
Feature	UTD1102C
Bandwidth	100 MHz
Rise Time	≤3.5 ns
Real-time Sampling Rate	500MS/s
Equivalent Sampling Range	25GS/s
Vertical Sensitivity	5mV ~ 50V/div
Record Length (Max)	2 x 512k
Scan Time Base	5ns ~ 50s/div
Trigger Type	Edge, Pulse, Video and Alternate
Automatic Waveform Measurements	27
Frequency Counter	6 digits frequency counter
Ports	USB Host
Mathematics	Add, Subtract, Multiply, Divide, Reverse and FFT
Interface	Colour and Mono display selectable
Power	The provided battery or out-sourced adaptor
Life of Battery	3 hours
Other Features	Multimeter,special LCD copy feature
Resistance	600Ω / 6MΩ / 60MΩ : ± (1.5% + 5 digits) 6kΩ / 60kΩ / 600kΩ : ± (1.2% + 5 digits)
DC Voltage	600mV, 6V, 60V, 600V, 1000V: ± (1% + 5 digits)
AC Voltage (45Hz ~ 400Hz)	600mV, 6V, 60V, 600V, 700V: ± (1.2% + 5 digits), Frequency: <200Hz ± (1.5% + 5 digits), Frequency: ≥200Hz
DC Current	6mA, 60mA, 600mA: ± (1.2% + 5 digits) 6A: ± (1.5% + 5 digits)
AC Current (45Hz ~ 400Hz)	6mA, 60mA, 600mA: ± (2% + 5 digits) 6A: ± (2.5% + 5 digits)
Capacitance	6nF, 6mF: ± (5% + 10 digits) 60nF, 600nF, 6μF, 60μF, 600μF: ± (4% + 5 digits)
Continuity Buzzer
Diode
Trend Diagram
Testing Mode	Manual / Auto ranging
Max.Display	5999

GENERAL CHARACTERISTICS

Power	100 - 240V 50/60Hz 1.5A
LCD Size	Diagonal 145mm (5.7 inches)
Product Color	Red and Grey
Product Net Weight	1.8kg
Product Size	268mm x 168mm x 60mm
Accessories	Probe x 2 (1x, 10x switchable), Current Voltage Convertor x 2(UT-M03, UT-M04) Power Cord, DC Adaptor and English Manual, Test Lead
Standard Individual Packing	Tool Box and Gift Box
Standard Quantity Per Carton	4 pcs
Standard Carton Measurement	475 x 460 x 380mm (0.10 CBM Per Export Carton)
Standard Carton Gross Weight	Around 23.2kg
