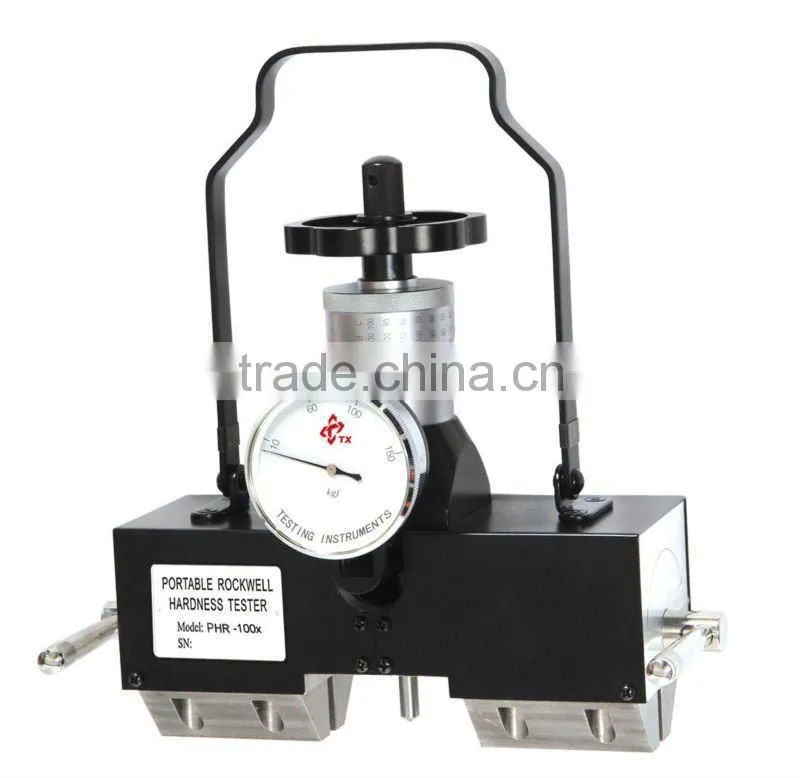

Magnetic Type Rockwell Hardness Tester,rockwell hardness tester,Webster Hardness Tester for Aluminum Alloy,PHR-100XMagnetic Type Rockwell Hardness Tester PHR-100X
Introduction:
Attracted to iron or steel surface by magnetic force; only one
side of the workpiece needs to be reached.
The test principle and accuracy comply to standard ISO6508 and
ASTM E110. Tested by National Institute of Metrology with
tolorance
Quick test, easy operation, good repeatability, high accuracy, no
sampling required.
Tests workpieces of any shape and dimension only if there is
enough flat or cylindrical surface to fix the tester.
Tests horizontally, slantingly and vertically.
Used to accurately test the hardness of steel plate, steel
pipe,shaft, mould, tube, pressure vessel, large workpieces
and assembled parts, especially welding line and heat
affected zone.
The test surface of PHR-100x is small enough to test the
hardness of small machine guide rails.
Used for production inspection and acceptance inspection,
replacing Leeb hardness testers with lower precision.
Traceable standard hardness block.
Indenter inspected with standard Rockwell hardness tester.
Test force calibrated with load cells directly traceable to national
secondary benchmark.
Main Technical Parameters
Initial Test Force: 10kg
Total Test Force: 60kg, 100kg,150kg
Force Applying Method: By Screw
Indenter: 120° diamond cone
1.588mm carbide ball
Accuracy: Meets the requirement of ISO 6508
Resolution: 0.5HR
Testing Range: HRA, HRB, HRC, etc.15 scales
Application: All metals
Iron and steel (direct test)
Copper, Aluminium, Nickel, titanium,
carbide etc. (test with sampling)
Application
The test is quick, easy and steady with good repeatability and accuracy. So when the workpiece is available magnetic type hardness tester is the best choice.
Magnetic type superficial Rockwell hardness tester is under development to test smaller, lighter, thinner specimens such as thin plate, thin hard carburized and nitrided steel.

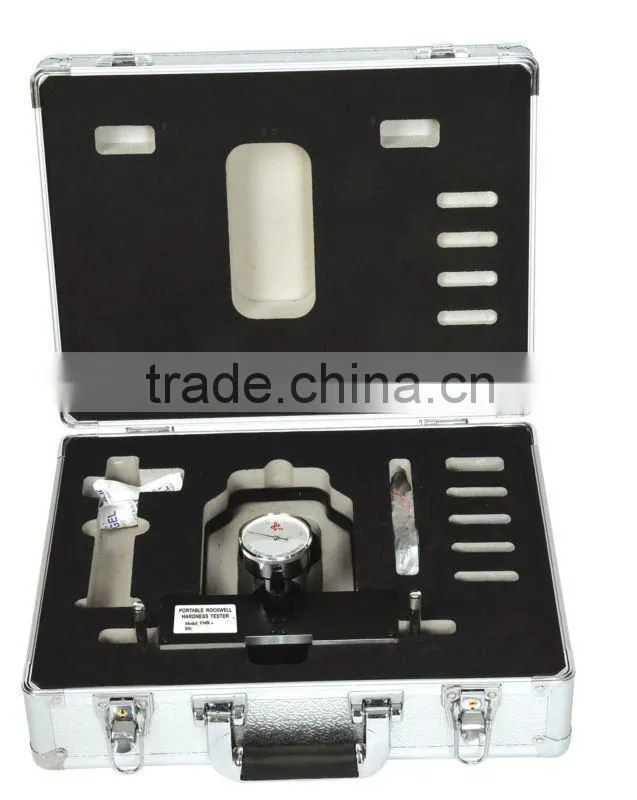

Standard Package
tester
120°diamond cone indenter
1.588mm carbide ball indenter
3 Rockwell test blocks
V anvil (for testing flat and cylindrical surface)
Flat anvil (for testing standard hardness block)
Magnifier
Base for standard test block
Carrying case
Optional Accessories
120°diamond cone indenter
1.588mm, 3.175mm carbide ball indenter
6.35mm, 12.7mm steel ball indenter
Rockwell test blocks (HRA, HRC-High, HRC-Medium,
HRC-Low, HRB)
Customized adapter (for testing cylindrical
specimen from 50mm to 100mm
Model |
Specimen Size |
Net Weight |
Gross Weight |
Package Dimensions (mm×mm×mm) |
Remarks |

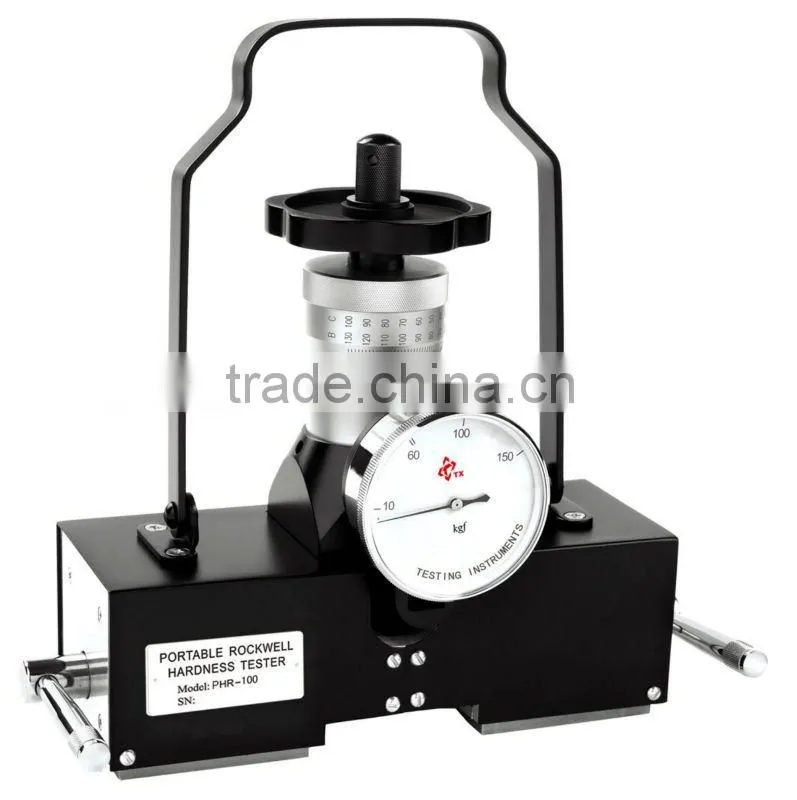

PHR-100 |
Flat surface>60×180 Cylinder diameter Thickness>5 |
4.9 |
10.0 |
480×390×210 |
Customized adapters are avilable for testing cylindrical speimens with smaller diameter |
PHR-100x |
Flat surface>20×180 Cylinder diameter Thickness> |
