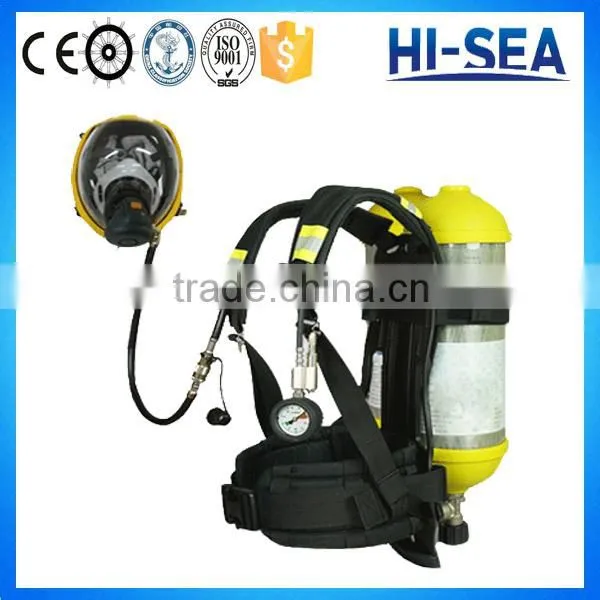

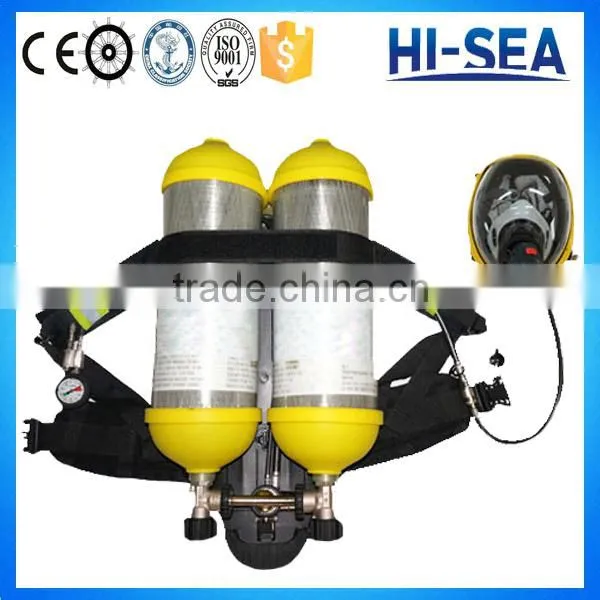

RHZKF6.8/30-2 Positive Pressure Air Breathing Apparatus
with Double Carbon Fiber Winding Composite Cylinders
RHZKF6.8/30-2 positive pressure self-contained breathing respirator has two cylinders.It is made according to the national standard equipment requirements GAl24-2004 and GB16556-2007.The air breathing apparatus is mainly used in firefighting, chemical industry, shipbuilding, petroleum , metallurgy , mining, laboratories etc.Its cylinder is made of carbon fiber composite and has a large volume of 6.8L. It can work under the pressure of 30MPa. This item is easy to operate and has a full face mask which is of high transparency, corrosion resistance and anti-fog.
Product Features
1. Small in Size, Light in Weight;
2.The Whole Machine is Portable, Reducing Operation Fatigue;
3.Easy to Operate, Safe and Reliable;
4.Labor Saving and Time Saving, All Configuration are Designed According to High Safety Standards;
5.Easy Maintenance and High Efficiency;
6.Fully Guarantee the Working Oxygen Supply in Effective Time
Parameters of Overall Unit
Parameters of Cylinder
Parameters of Mask
Empty Breathing Mask
1.Light transmittance up to 90%;
2. Large Spherical, Wide Visual Field, Anti-fog Function;
3. Polycarbonate Face Screen
Can withstand the speed of 44.2m/s diameter of 3mm steel ball's impact by testing; the screen does not break after the impact, protecting the face from injury.
Carbon Fiber Winding Composite Cylinder with Aluminum Tank
1. 50% Lighter than the same volume of steel cylinders, easy for operation;
2.Four layer composite structure design;
3. Composite cylinders is not conductive, and neutralizing under the condition of erosion and corrosion;
4. Cylinder valves are built-in safety diaphragm, avoiding high pressure cylinder bottle bursting;5. Having good elasticity and softness of the silicon pad holder, effectively protecting the cylinder knock against falling;
Decompressor Assembly
1. The output pressure is stable, the air pressure after decompression is only about 0.7MPa in the middle and low pressure, with a medium pressure relief valve, pressure reducer failure can also be safe pressure relief。
2. High pressure pipe design combined with pre alarm system, when the pressure in the bottle is less than 5Mpa, the alarm is automatically alarm with alarm db not less than 90dB, ensuring the alarm being heard clearly in the relatively noisy working environment
Installation Steps:
1. Flat place the back strap group, aligning the cylinder valve to the pressure relief valve, screw clockwise and make it fastened
2. Press the mask button bayonet to make the air supply valve tightly connected with the mask;
3. Connect the end of the middle pressure pipe and gas supply valve, and check whether the connection is tight
Wearing Steps:
1. Back up the assembly of complete air respirator, and adjust the strap length to the appropriate position;
2. Close the bayonet belt, adjust the belt length to the appropriate position with the mask, adjust the tightness to face mask and caps, open the gas cylinder switch valve and turn over three times in a counter clockwise direction; take a deep breath and breathe into the working area
Disassembly Steps:
1. Turn the cylinder switch valve clockwise until it is fully closed;
2. Press and hold the bottom of the air supply valve to discharge the residual air in the gas supply valve
Air breathing apparatus is widely used in the departments of fire fighting, chemical industry, shipbuilding, petroleum, smelting, warehouse, laboratory, mining and other departments, ensuring firefighters and emergency rescue personnel to carry out safe and effective firefighting, rescue and relief work in smoke, gas, steam or oxygen-deficient environment.
1.Quality Assurance
All our products are strictly manufactured in accordance with the production standards. Before being issued the product quality certification, all products are inspected and accepted by the technical inspection department of the manufacturing plant.
2.Product Customization Service
Our company can supply both standard and non-standard products to meet your various needs. We can customized products according to your drawings.
3.Providing Classification Society Certificates
We can supply various certificates of Classification Societies: CCS, ABS, BV, DNV, GL, LR, NK, KR, RINA, RS etc..
4.Excellent Pre-sale and After-sale Service
Our salesmen are adhering to the trading principles of being honest and trustworthy, fair and equitable to provide excellent and satisfactory service for our customers.
