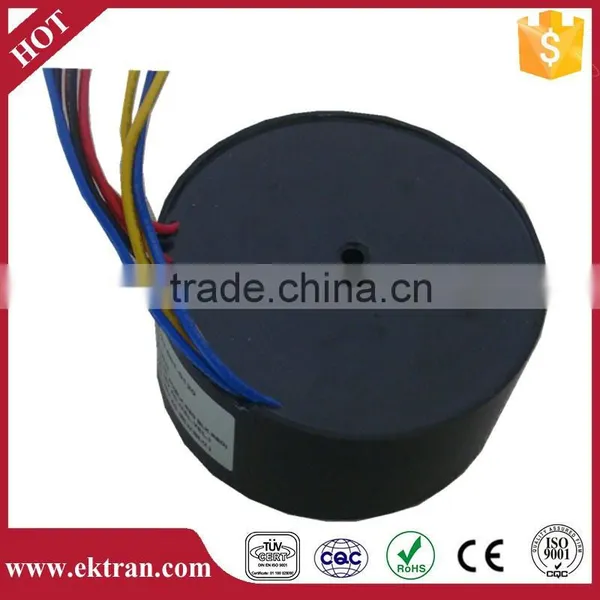

120VA 35V Small Current Transformer

120VA 35V Small Current Transformer thumbnail-1
120VA 35V Small Current Transformer photo-1
US$ 5 - 70 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ECKO
Model Number:
Toroidal Transformer
Contact Supplier Request Quote Chat Now
Foshan Ecko Electrotech Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOSHAN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name ECKO
Model Number Toroidal Transformer
Usage Audio
Phase Single
Coil Structure Toroidal
Coil Number Autotransformer
Product Description

120VA 35V small current transformer

120VA 35V small current transformer120VA 35V small current transformer120VA 35V small current transformer 120VA 35V small current transformer

120VA 35V small current transformer

Specification:

·Power rating 10W~25kw

·Primary Customized,AC 110V,115V, 120V,

 127V,220V,230V, 240V etc,50HZ/60HZ

·Secondary Customized,AC 12V,24V,36V,

 48V,120V,240V etc

·Power factor 0.9 to 0.98

·Efficiency 90%-99%

·Voltage regulation 16-1.6%

·Output no-load loss 0.5-10W

·Temperature rise ≤65°C



Feature:

·Smaller in size

·Cost effective

·Easy to mount

·High efficiency

·Low leakage flux

·Low hum noise

·Low stray field

·Lower off-load power consumption



Mounting (2 kinds):

·Parts for mounting supplied(rubber mats, screws and nuts)

·Central proxy resin encapsulation and drilling

         120VA 35V small current transformer



Technical parameters

   Rated Power(VA)

Voltage    Regulation

    (%)

 Efficiency (%)        Dimension(mm)  Weight   (Kg)
Height      Diameter
30 16 83 30 80 0.6
100 11 88 42 100 1.3
150 7.3 90 45 115 1.85
200 6.2 91 53 123 2.3
250 5.6 92 53 128 2.6
300 5.3 93 55 135 3
400 4.6 94 60 140 3.8
500 4.3 95 66 146 4.5
800 4 95 85 160 7
1000 3.8 96 90 165 8.5
1200 3.3 96 95 168 9
1500 3 96 100 173 9.5
2000 2.9 96 110 183 13
4000 2.2 97 135 245 23
6000 2 98 155 285 33
10000 1.8 98 185 335 49
15000 1.7 99 205 375 69
20000 1.6 99 235 415 95
25000 1.6 99 245 435 115



The above parameter is only for your reference, customer-made is subject to customer’s request.

We are able to manufacture the transformer which power is below 25KVA.
