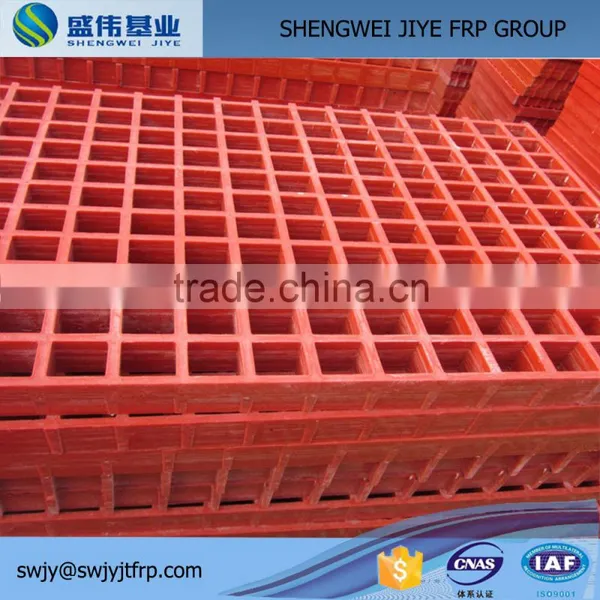

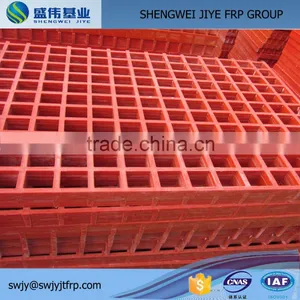

Help CenterCorrosion Resistant FRP/GRP Glass Fiber Grating, Cheap FRP Grating Price, Exellent Load Ability Customized FRP Molded Grille
Related Products
-
French Frp Sliding Window Grill Design Made in ChinaUS$ 4 - 50MOQ: 100 Pieces -
SWJY French Frp Sliding Window Grill Design Made in China HOTSALEUS$ 4 - 50MOQ: 100 Pieces
-
FRP GRP Reinforced Plastic Fiberglass GrillingUS$ 4 - 50MOQ: 100 Pieces
-
Fiberglass Solid Grille/tree Protection Frp GratingUS$ 5 - 49MOQ: 100 Pieces
-
Fiberglass Solid Grille/tree Protection Frp GratingUS$ 4 - 48MOQ: 100 Pieces
What is FRP pultrusion grille?
FRP pultrusion grille is adopting FRP pultrusion, "I" shape profile as load-bearing article, tube and rod as connecting rod, such as through the assembly process must be made with a gap of the plate.
g rod, such as through the assembly process must be made with a gap of the plate.
Where can we use?
| -operating platform | -stairs walkways | -stairs lifted block |
| -ground level ground | -trench cover | - walkways |
| - pedestrian overpass | -equipment safety bar | -scaffolding |
feateure:
- A variety of chemical corrosion resistance, never rust, use cycle is long, free maintenance.
- Flame retardant
- Insulation, nonmagnetic
- With mild elastic, can reduce fatigue, enhance intimacy, improve work efficiency.
- Light weight, high strength, and easy to cut, installation
- The color of the inside and outside the uniform can be arbitrary choice. Can according to customer request custom color, improve the environment in the workplace.
- Has good comprehensive economic benefit
- Can design sex is strong, flexible and varied size.
-
specificaton for reference
Item No. |
Height(mm) |
Mesh Size(mm) |
Standard Panel Size |
Open Area |
Weight(kg/m2) |
1 |
15 |
38 × 38 |
1220 × 3660 |
72% |
6.00 |
2 |
15 |
20 × 20 |
1247×4047,1007×4047 |
42% |
9.00 |
3 |
25 |
38 ×38 |
997 × 3050 , 1220 × 3660 |
69% |
12.32 |
4 |
25 |
40 × 40 |
1007 × 3007 , 1007 × 4007 |
67% |
12.20 |
5 |
25 |
25 × 100 |
1009 × 3007 ,1209 ×3657 |
67% |
13.87 |
6 |
30 |
38 × 38 |
1220 × 3660 , 997 × 3050 |
69% |
14.60 |
7 |
30 |
40 × 40 |
1007 × 3007 , 1007 × 4007 |
67% |
14.28 |
8 |
30 |
20 × 20 |
1000 × 4000,1247×4047 |
42% |
18.10 |
9 |
38 |
38 × 38 |
997 × 3050 , 1220 × 3660 |
68% |
19.71 |
10 |
38 |
25 × 152 |
1226 × 3665 (Bearing bars to run length direction) |
56% |
22.40 |
11 |
38 |
20 × 20 |
1007 × 4007,1247×4047 |
42% |
22.50 |
12 |
40 |
40 × 40 |
1007 × 3007 , 1007 × 4007 |
67% |
19.87 |
13 |
40 |
20 × 20 |
1247 × 4047 |
42% |
23.70 |
14 |
50 |
50.7 × 50.7 |
1225× 3660 |
69% |
22.17 |
15 |
60 |
38 × 38 |
1220 × 3660 |
47% |
50.43 |
16 |
P38 |
38 × 38 |
1230 × 3670 |
68% |
17.5 |
17 |
P30 |
38 × 38 |
1220 × 3660 |
69% |
14.0 |
Height |
Mesh |
Standard Size |
Kg/m 2 |
Open Area |
Resin |
25.4mm |
38.1mm pane |
1220mm×3660mm |
12.3 |
68% |
V,I, 0,P |
30.0mm |
38.1mm pane |
1220mm×3660mm |
15.0 |
68% |
V,I, 0,P |
38.1mm |
38.1mm pane |
1220mm×3660mm |
18.8 |
68% |
V,I, 0,P |
50.8mm |
50.8mm pane |
1220mm×3660mm |
21.9 |
71% |
V,I, 0,P |
Choose: 1. antiskid and concave; 2.Grit on upper surface; 3. the surface close and other size upon request . | |||||
Note"V" Vinyl resin I Isophthalic resin O Orthophthalic resin P Phenolic Resin | |||||
Careful packing
Q: Are you a trading company or a manufacture factory?
A: Our factory is one of the biggest FRP products, FRP machines manufacturer in China
Q: Can your factory customize the machine for clients ?
A: Yes, we can.
Q: What is your payment terms ?
A: Normally,50% as the deposit first by T/T, the rest 50% will be paid before shipping by T/T.
Q: How about after-sales service ?
A: 1 year free warranty, Lifetime technical service support.
Q: How can I install the production line and get a commissioning ?
A: We may send our engineer for installation and commissioning, but relevant cost will be paid by you.
Q:Have you some videos where we can see the line producing?
A: Yes, we can provide some videos
Any enquiry please feel free contact us.
