Help CenterSCH80 UPVC PIPE 1"
Related Products
SHIE YU Professional in UPVC, CPVC, HDPE, PPH, PVDF PIPE&FITTINGS
SHIE YU Milestones
-1973, Shieyu Group is established in Taichung
1.We have own factoty for over 40 years with good quality and Service.
2.Good Quality: Implement NSF and ISO quality system on all products.
3.Good reputation in Southeast Asian,Middle east, South America market.
4.We have complete product ranges.
UPVC 1/2“~24”
CPVC 1/2”~24”
PPH 12 ~1200mm
HDPE 12 ~1200mm
PVDF 12 ~630 mm
ABS 12 ~630 mm
Standards: DIN, Sch80, Sch40, JIS, BS, or other assigned standards
5.Flexible lead time
Product Name: PVC PIPE
Description:
| 1.Material: | PVC |
| 2.Size Available: | 1/2"~24" |
| 3.Standard: | SCH80/SCH40 |
| 4.Color: | Gray |
| 5.Brand: | DFP |
| 6.Connection: | SCOKET |
| 7.MOQ: | 50M |
| 8.Prodction Capatity | 20000m per Month |
| 9.Product Tests: | 100% tested |
| 10.Certification Available: | ISO,NSF,CNS |
Pipe Dimension:
| Nom. Size(Inch) | Pipe O.D. | Tolerance | Min.Wall Thickness |
| Inch(mm) | Inch(mm) | Inch(mm) Inch(mm) | |
| 1/2" | 0.84(21.34) | ±0.004(0.10) | 0.147(3.73) |
| 3/4" | 1.04(26.67) | ±0.004(0.10) | 0.154(3.91) |
| 1" | 1.315(33.4) | ±0.005(0.13) | 0.179(4.55) |
| 1-1/4" | 1.66(42.16) | ±0.005(0.13) | 0.191(4.85) |
| 1-1/2" | 1.9(48.26) | ±0.006(0.15) | 0.2(5.08) |
| 2" | 2.375(60.33) | ±0.006(0.15) | 0.218(5.54) |
| 2-1/2" | 2.875(73.03) | ±0.007(0.18) | 0.276(7.01) |
| 3" | 3.5(88.9) | ±0.008(0.20) | 0.30(7.62) |
| 4" | 4.5(114.3) | ±0.009(0.23) | 0.337(8.56) |
| 5" | 5.563(141.3) | ±0.010(0.25) | 0.375(9.53) |
| 6" | 6.625(168.28) | ±0.011(0.28) | 0.432(10.97) |
| 8" | 8.625(219.08) | ±0.015(0.38) | 0.500(12.7) |
| 10" | 10.75(273.05) | ±0.015(0.38) | 0.593(15.06) |
| 12" | 12.75(323.85) | ±0.015(0.38) | 0.687(17.45) |
| 14" | 14.00(355.6) | ±0.015(0.38) | 0.750(19.05) |
| 16" | 16.00(406.4) | ±0.019(0.48) | 0.843(21.41) |
| 18" | 18.00(457.2) | ±0.019(0.48) | 0.937(23.8) |
| 20" | 20.00(508) | ±0.023(0.58) | 1.031(26.19) |
| 24" | 24.00(609.6) | ±0.031(0.79) | 1.218(30.94) |

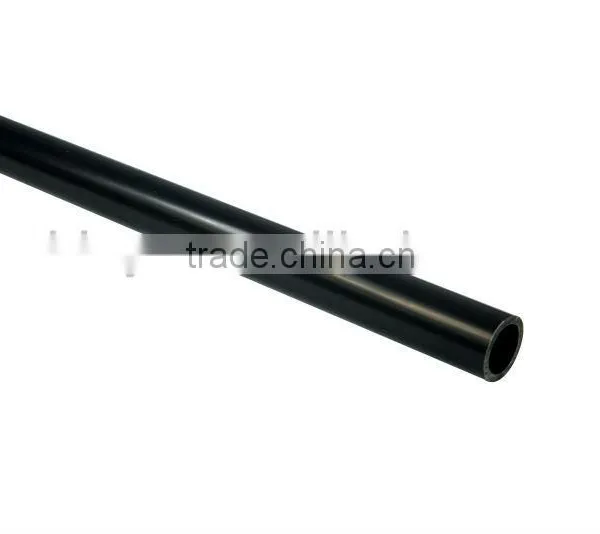

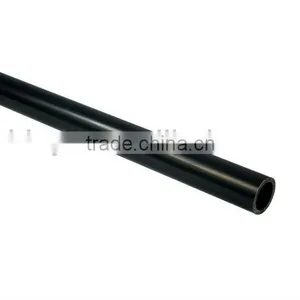

Product Picture:
Typical Application:
UPVC: Pressure water application for non-potable water:
l Purified water
l Agricultural drainage
l Environmental construction
l Industrial air flow system
l Sterile room ventilation
ISO Certificate:
NSF Certificate:
