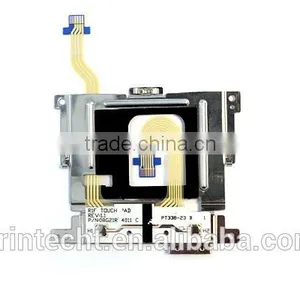

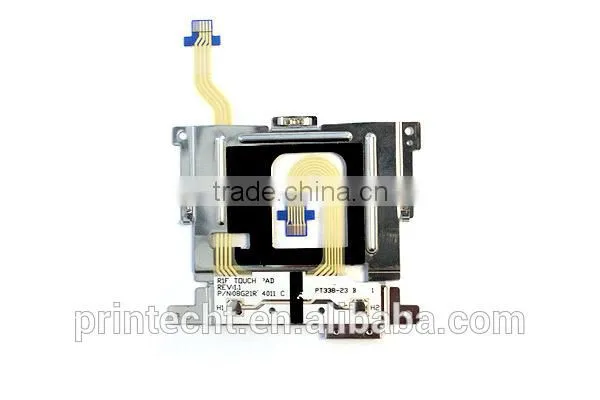

Help CenterHigh Quality Membrane Switches Which Used on Laptop
Related Products
-
Membrane Switch With PCB and Silicon DiffuserNegotiableMOQ: 10 Pieces -
Membrane Keypad Switch With PCB and Soldering Wire CableNegotiableMOQ: 10 Pieces
-
Membrane Switch 1 Key With Metal Dome and Flexible CircuitNegotiableMOQ: 10 Pieces
-
Membrane Circuit Switch With Sub-panel and Metal DomeNegotiableMOQ: 10 Pieces
-
16 Keys Membrane Switch With Metal DomeNegotiableMOQ: 10 Pieces
Specifications
High quality membrane switches
- Printing – Die-cutting – Laser cut - Embossing
- CCD control, digital/off-set printing, 3D forming.
- Clean room facility, class 1000 and class 10,000
- Tooling shop- Hard die, embossing die and fixtures.
- SMT IR-reflow lines.
- Quality equipments.
1. Silkscreen Printing
DIGITAL CONTROL SIMI-AUTO SCREEN PRINTING MACHINE – CL-4P6060
- Silkscreeningsize: 1000x1500 mm.
- Application: graphic overlays and flex ckt.
- Substrate thickness: 0.05 to 10 mm
- Pitch between trace to trace: 0.5 mm min.
- Silkscreen with CCD for better registration.
- Dryer by – ovens, IR-conveyer and UV.
2. Digital Printing
Roland Versa UV LEC-330
- Digital and offset printing capabilities.
- Substrate flexibility- Leather, PET, PC, PU and other rigid material, except metal.
- Up to 1 mm (0.04”) thick for a wide variety of applications.
- Unique special effects – all on one device: High-density white, multi-layered printing, texture printing, matte finish, gloss finish.
We provide comprehensive desigh and manufaturing service for metal dome and polydome membrane switch as well as for PC board switch panels. From subassemblies to complex integrated switch panels thanks include graphic overlays, shielding, and back plates. We offer complete switch solutions, precision manufacturing for maximum reliability. It is able to count on milling-plus cycle perfomance, even under the most extreme operating conditions. Circuit traces and contact pads are silkscreened positive-pressure cleas room enviroment using materials of the highest quality. Conductive inks contain a silver base only; no fillers or additives are used.
Circuit Layers
CIRCUIT LAYERS AVAILABLE:
Linear potentiometer, circuits
