Help CenterProfessional Speed Medium Wire Drawing Machine With Continuous Annealer
Related Products
-
Die Larger Diameter Wire Drawing & Continuous Annealing MachineUS$ 1 - 2MOQ: 1 Set -
Cable Twist Bunching Machine,StrandersUS$ 1 - 2MOQ: 1 Set
-
Professional Copper Zinc Coating Production Line MachineUS$ 1 - 2MOQ: 1 Set
-
Synthetic Mono Crystal Diamond Wire Dies (SMCD)US$ 10 - 1,000MOQ: 1 Piece
-
Synthetic Mono Crystal Diamond Wire Drawin Dies (SMCD)US$ 10 - 1,000MOQ: 1 Piece
Specifications
High Speed Medium Wire Drawing Machine+Traction by high precision gear
+Easy to operate&maintain
+Continuous Annealer

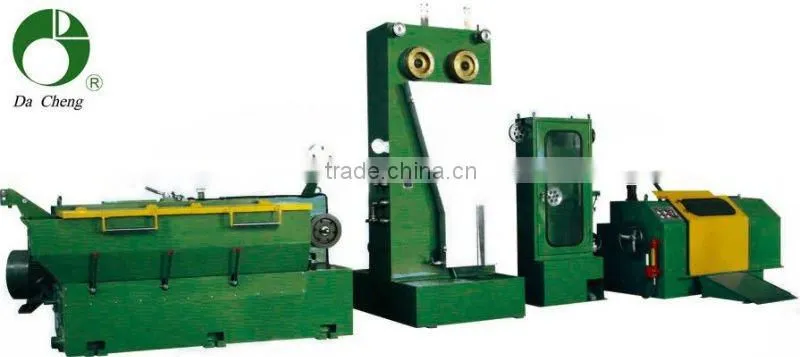

High Speed Medium Wire Drawing Machine With Continuous Annealer
ADVANTAGE
* Low noise,less than 85 DB.
* Transmission by high quality three chain.
* Capstan treated with wear-resisting spray.
* Double inverter control,tension auto adjusting.
* Lubricating transmit device under the lubricator,separated with gear box.
* Unify 250 cast-iron main frame,precision machinery,no shock,no deformation.
* Suitable for take up machine with and without shaft,vertical plum blossom take up machine.
PARAMETERS
Machine type |
17MDT |
17DST |
Inlet diameter (mm) |
Φ3.5-Φ2.5 |
Φ3.5-Φ2.5 |
Outlet diameter (mm) |
Φ1.6-Φ0.4 |
Φ1.5-Φ0.4 |
Transmission type |
Transmits by chain wheel |
|
Drawing line speed (m/min) |
1500 |
1200 |
Model outside dia (mm) |
Φ25 |
Φ25 |
Slip ratio of m/c |
15% |
17% |
Fix speed capstan slip ratio |
13% |
13.00% |
Capstan dia.(Max.) (mm) |
Φ260 |
Φ270 |
Fix speed capstan dia. (mm) |
Φ260 |
Φ270 |
Main motor (kw) |
45 |
45 |
Diameter of copper wheel for annealer |
Φ250 |
Φ250 |
Max. volt for annealing (V) |
DC60 |
DC60 |
Max. current for annealing (A) |
DC1500 |
DC1500 |
Steam (kg/h) |
10-12 (0.2-0.3Mpa) |
10-12 (0.2-0.3Mpa) |
Cooling water (m³/h) |
12.0-18.0 |
12.0-18.0 |
Compression air (m³/h) |
10-15 (0.4-0.6) |
10-15 (0.4-0.6) |
Machine dimension (mm) |
6000*1400*2450 |
6000*1400*2450 |
Machine weight (kg) |
6000 |
5800 |

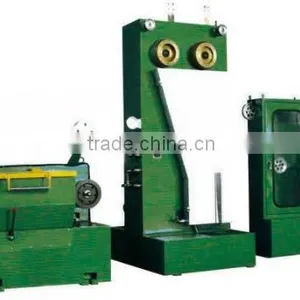

PICTURE SHOW
Please Feel Free To Contact Us
ZHANGJIAGANG DACHENG TEXTILE MACHINERY CO.,LTD.
ADD:LUYUAN TANLI VILLAGE ECONOMIC DEVELOPMENT AREA,
TANGQIAO TOWN,ZHANGJIAGANG CITY,JIANGSU PROVINCE,CHINA.
WEBSITE:/
Sales manager:Mr.Steven Liu
Cellphone:00+86+13773240991
Skype:jaky5188
Hotmail:milo.ceo
FAX:+86-512-58477030
P.C.:215616
