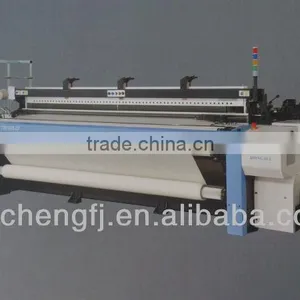

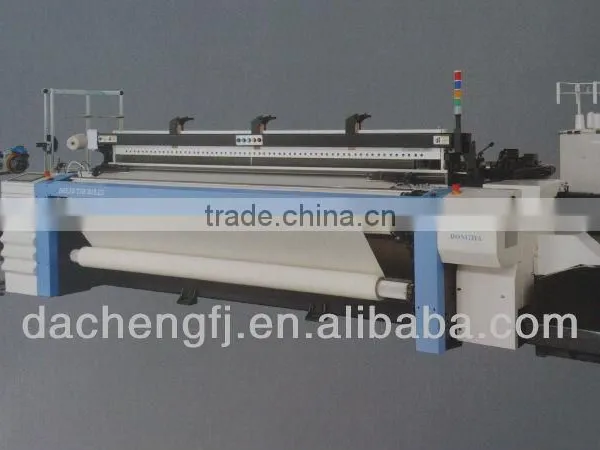

JA30 SMART TYPE AIR-JET LOOM/Weaving Machinery

US$ 1 - 2 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Air Jet Loom

Model Number:

JA30 SMART TYPE

Contact Supplier Request Quote Chat Now

Zhangjiagang Dacheng Textile Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Air Jet Loom

Model Number JA30 SMART TYPE

JA30 SMART TYPE AIR-JET LOOM:

Technical parameters:

Item	Specifications	Optional parts
Reed space	Nominal reed space: 190,210,230,250,280,340,360cm
Reed space	Effective reed space: Nominal reed space minus 0~60cm(190~250cm), Nominal reed space minus 0~80cm(above 280cm)
Yarn range	Spun: Ne100~Ne5
Yarn range	Filament: 50D~900D
Weft selection	2-Nozzle, 4-Nozzle, 6-Nozzle for free choice
Drive	Direct control and positioning stop through electromagnetic brake
	Push-button bimanual operation and forward-reverse inching motion
	Ultra start motor 3.0KW (Cam shedding) 3.7KW (Dobby shedding) 6.5KW (Jacquard shedding)
Weft insertion	Main nozzle and sub-nozzle combined type	Stretch nozzle
	Adopt profile reed
	Auxiliary main nozzle
Shedding	Positive cam shedding: heald frames max.8 pcs
	Dobby shedding: heald frame max.16pcs
	Jacquard shedding
Let-off	Positive continuous let-off
	Single warp beam(below 280cm)	Twin-beam
	Positive easing, double back girder
	Flange dia.: Φ800	Φ914,Φ1000
Take-up	Electronic take-up	Mechanical winding
	Pick density range:25~205pcs/inch(mechanical take-up), 25-300pcs/inch(electronic take up).
	Length counter:display of weaving reports, with fixed-length stop function.
	Max. Take-up dia: Φ600mm(cam,dobby,jacquard shedding); Φ520mm(crank shedding)
	Temple: top-mounted type.
Beating-up	Crank type multiple sley sword beating-up mechanism
Beating-up	4-Link rod beating-up, 6-Link rod beating-up(above 280cm)
Measuring/storing	Vibrating type pick storer
Weft stand	Floor-mounted 4 cones (2-nozzle); floor-mounted 8 cones (4-nozzle)
Selvedge	Planetary gear motion
Waste filling removal	Catch cord type
Cutter	Mechanical type
Lubrication	Oil bath system for the main driving parts, centralized lubrication by manual	Automatic centralized lubrication
Auto-stop motion	Weft yarn: photoelectric weft feeler, double feelers
	Warp yarn: electric contact-type 6-row droppers
	Others: stop motion for selvedge and catch cord yarn
	Stop cause indication: information display on touch screen, multiple function 4-color lamp display
Automation	Artificial intelligent touch screen: with function of parameter setting, Autocontrol, automatic monitoring, self-diagnosis.
	Pick finding device: automatic shed finding
	Slow inching by inverter(forward, reverse)
	USB data interface
