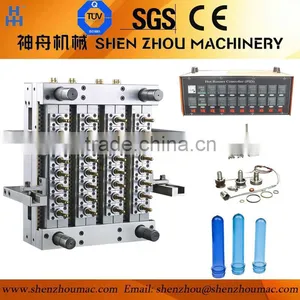

PET Preform Mold

Name: PET Preform Mold
Brand: SHENZHOU
SKU: 131393793

US$ 5,000 - 20,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

SHENZHOU

Model Number:

PET

Zhangjiagang Shen Zhou Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name SHENZHOU

Model Number PET

Shaping Mode Plastic Injection Mould

Product Material Plastic

Product Other, PET Bottle

Specifications

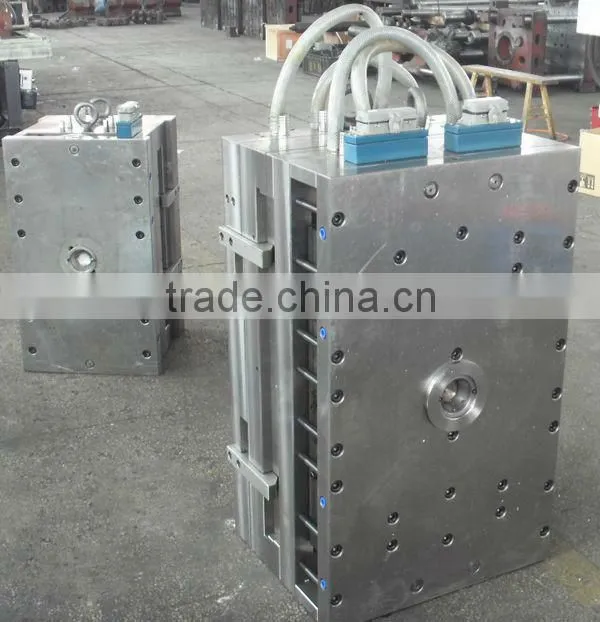

PET Preform Mold

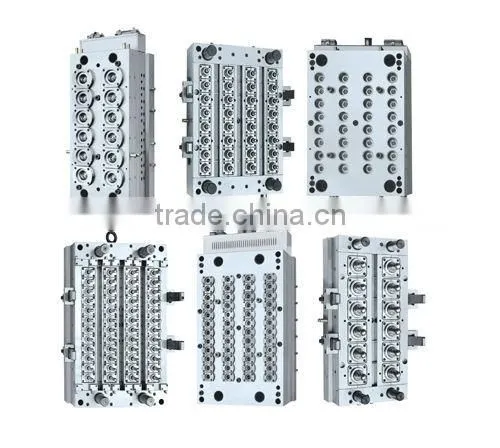

One Cavity to Multi Cavities Mold
Hot Runner System
Quality Mold Steel
High Production Capacity

PET Preform Mold:

1.Material:2316 Steel,P20
2.Cavity:Single/Multi
3.Runner:Hot/Cold
4.Type:Air seal/short tail/long tail
5.One million Grantue

1.the mould is desigened with 3D modeling software

2.the mould is made by imported P20 and German 2306 seteel etc.

3.the mould is designed by advanced hot Runner system and each cavity has independent temperature control and heater system.

4.the mould surface is plated by reliable hard chrome.

5.the mould cavity is replaceable,so that the label top can be changed.

6.all the parts are manufactured with CNC equipments.

PET Preform Mould Main Components Specification and Advantages
Main component	Specification and Advantages

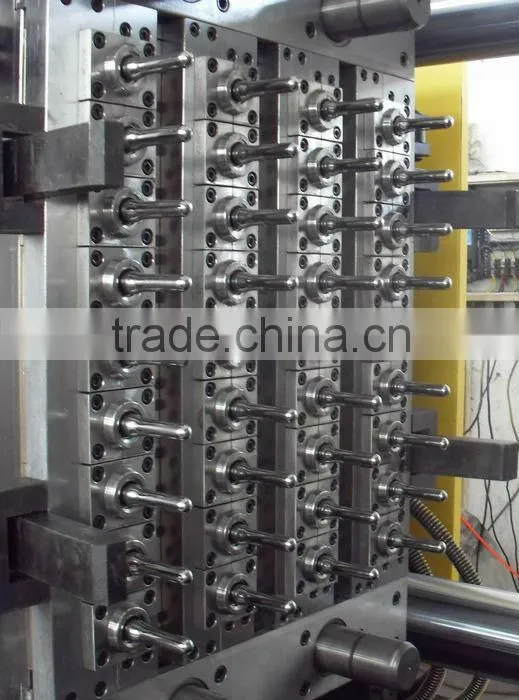

Core	2316 steel from Sweden	high-quality special mould steel from sweden (HRC >45) gurantee 2 million shots without any maintenance
Neck	S136 steel from Sweden, HRC >60, International standard screw neck
Cavity	2316 steel from Sweden Each cavity have an independent temperature controller Each cavity self-clamp independently, ensure mould concentricity. 0.05-0.06mm
Body	P20 Steel material from Germany
Hotrunner plate	2344 Steel material from Germany

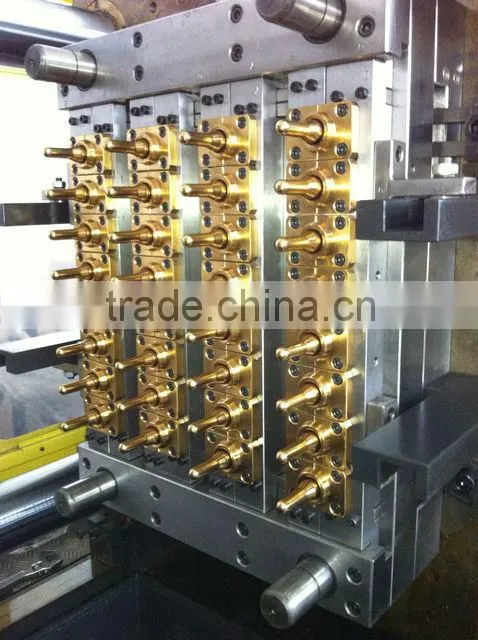

Slider Plate	wear-resistant copper
specially designed cooling circuits	Proper design reduce molding cycle time to 15 seconds( with proper water chiller and injection machine) about 3-5 shots per minute
Hot runner design	make sure the high quality of preform products.
Heater	Anole Germany
valve gated design with Automatic drop	each cavity has its independent heating zone and temperature is measured by independent thermocouple. .(advantages: easily avoid some problems such as white or drawbench on bottom). Valve gated type without tail reduces labor force.
Precessed by high presion CNC machine and numerical control loathe machine	Lowest weight and dimensional variation thickness between max. part and min. part is not more than 0.05mm make sure that every parts can match well
