Home > Manufacturing & Processing Machinery > Plastic Machinery > Injection Molding Machine > Plastic Injection Molding Machine SZ-3800A

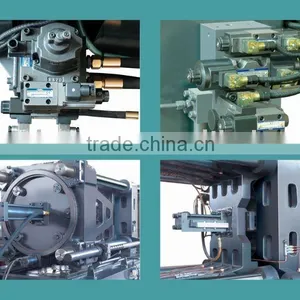

Plastic Injection Molding Machine SZ-3800A
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
SHENZHOU
Model Number:
SZ-3800A
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Brand Name
SHENZHOU
Model Number
SZ-3800A
Place of Origin
Jiangsu, China
Automatic
Yes
Injection Weight
966-1286grams
Clamping Force
3800KN
Specifications
High Quality MachineStable Working Performance
Attractive Machine Price
Free Spare Parts Available
Technical Supports
Plastic Injection Molding Machine SZ-3800A
Screw diameter |
mm |
65 |
70 |
75 |
Screw L/D ratio |
L/D |
22.6 |
21 |
19.6 |
Shot weight |
gram |
966 |
1120 |
1286 |
Injection capacity |
cm3 |
1061 |
1231 |
1413 |
Injection pressure |
Mpa |
203 |
175 |
152 |
Theoretical injection rate |
g/s |
308 |
357 |
410 |
Plastic capacity |
g/s |
50.6 |
60.5 |
71.5 |
Injection stroke |
mm |
320 |
||
Screw torque |
N.m |
2860 |
||
Max screw rotate speed |
r/min |
150 |
||
Clamping force |
ton |
380 |
||
Opening stroke |
mm |
680 |
||
Space between tie bars |
mm |
680×680 |
||
Mould height |
mm |
250~710 |
||
Max daylight |
mm |
1390 |
||
Ejector force |
ton |
9.07 |
||
Ejector stroke |
mm |
170 |
||
Ejector quantity |
|
13 |
||
Oil pump motor |
kw |
37 |
||
Pump pressure |
Mpa |
16 |
||
Heating power |
kw |
25 |
||
Machine size |
M |
6.8*2.0*23 |
||
Machine weight |
ton |
15 |
||
Oil tank capacity |
L |
820 |
||
International designation |
|
3800-2150 |
||
