Specifications
GPS Satellite Navigation System for Vehicles/Fishing: F2001. Easy operation
2. Support GPS Real-Time Tracking
3. Economic
GPS Satellite Navigation System for Vehicles/Fishing: F200
Overview:
F200 satellite positioning/Navigation system is develop based on GSM network SMS platform, with technology of GPS global satellite positioning, GSM mobile communication, GIS Geographic Information processing, network communication and data processing, to positioning, monitor and schedule the long-distance moving object.
The satellite positioning/Navigation system F200 widely used in public security, traffic, exchanging center, postal office, transportation industries.
Features:
n Support GPS real-time tracking.
n Support GPRS network data transmission.
n Support for multi-directional terminal parameter settings.
n Support for peer-to-peer monitoring, point to group control, group all-round monitoring of the group.
n Combined with positioning, monitoring control, alarm, such as first aid and tracking multiple functions with a full range of integrated products.
Application:
1. Publish Security: Observe Criminal Activity, looking for target person, fight Alarm, etc.
2. Vehicle Tracker: Find a target car, vessel, bus, truck, train.
3. Positioning: Positioning target car, person, animals
4. Monitor: Monitor activity status, moving status
5. Scheduling: Scheduling or re-scheduling person how to act, where to move the car/vessel/bus..
Specifications:
| GPS Satellite Positioning/Navigation System for Vehicles/Fishing: F200 | |
| Working Voltage | 10-32Vdc |
| Working Current | 80mA |
| Operating Temperature | -20-60C |
| Humidity | 20%-80% |
| LED indicator light | shows the GPS / GSM status |
| GPS Details: | |
| Locating Accuracy | < 10m (90%) |
| Speed Accuracy | 0.1m/s |
| Channal No. | 12 channels |
| Re-locating Time | < 0.1 s (in average) |
| GSM Details: | |
| Communication | Dual-Frequency GSM, SMS |
| Transmitted Power | 2W@900Mhz |
| 1W@1800/1900Mhz | |
| Mechenical Information | |
| Color | Black |
| Weight | 0.45kg |
| Size | 77 x 53 x 23 mm |
To learn the GPS Satellite Positioning/Navigation System made?

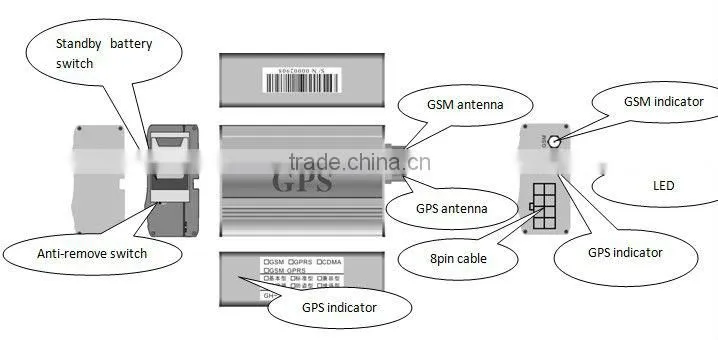

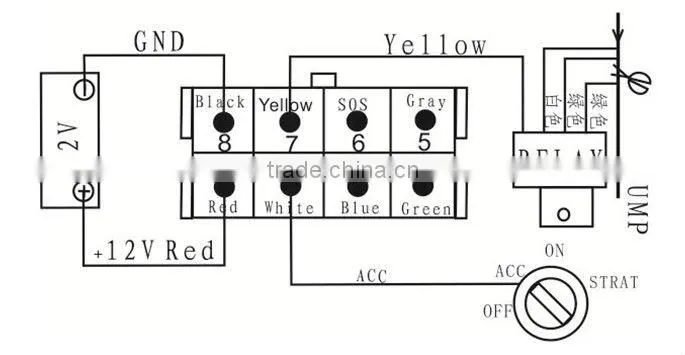

Connection Diagram:
For Car Using, Functions:
1. Real-Tim positioning
2. Report by Timming Interval
3. Get Mileage Statistics
4. Stop Engine(Oil) / Recover Engine
5. Over speed Alarm
6. Sim Card Removed Alarm
Ordering Code:
GPS Satellite Positioning/Navigation System for Vehicles/Fishing: F200
Accessories:
¡ F200-type vehicle terminal 1 sets (built-in battery)
¡ 8 PIN control cable 1
¡ GPRS communications antenna 1
¡ GPS positioning antenna 1
¡ Device fixed Ties 3
¡ Mount Patch 2 pairs
¡ Breaking the fuel Relay 1 (DC12V 40A) (If you need to 24V relay please advise in advance) (Optional)
¡ MIC Phone (Optional)
¡ SOS button (Optional)
