KILEWS Bsd-3200l Low Torque Precision Fully Automatic Electric Screwdriver for Production Line, Assembly Tools, Shut off Clutch

KILEWS Bsd-3200l Low Torque Precision Fully Automatic Electric Screwdriver for Production Line, Assembly Tools, Shut off Clutch thumbnail-1
KILEWS Bsd-3200l Low Torque Precision Fully Automatic Electric Screwdriver for Production Line, Assembly Tools, Shut off Clutch photo-1
US$ 30 - 320 MOQ: 10 Sets
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
BSD
Model Number:
BSD-3200L
Contact Supplier Request Quote Chat Now
Kilews Electric Tools (Shanghai) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name BSD
Model Number BSD-3200L
Power Source Electricity
Type Precision Screwdriver
Rated Voltage AC 100~240V
Frequency 50/60HZ
Rated Input Power 25W
Max. Torque 7kgf.cm/0.69N.m
No-Load Speed 600/1000 r.p.m
Dimensions 205mm
Weight 270g

Specifications

1)Shut off clutch, Torque adjust from 0.5-7kg
2) Precison 3%
4) Weight: 270g
5) Length: 205mm

Low Torque Precision Fully Automatic Electric Screwdriver ( electric screw driver for assembler )

American and Japanese high-tech DC high performance servo-motors are applied with super strong magnetic iron. The motor starts up quickly with a small current. With heat radiation fan and ventilation holes, the motor heat is disseminated quickly. It can continuously operate at low temperature rise. Gear assembly and clutch are manufactured with alloy steel materials imported from Japan. They have low torque attenuation, high stability and long lifetime.

Specifications:

1) Torque: 0.5-7kgf.cm

2) Unloaded rotation speed: 1,000/700r.p.m

3) Screw diameter a) Machine screw: 1.4 - 2.6mm b) Tapping screw: 1.4 - 2.3mm

4) Weight: 270g

5) Length: 205mm

6) Suspension rack model: KH-4

7) Torque fixing ring model: KC-4

8) BIT type: a) M3 ø4mm b) M6 ø5mm c) HEX 5mm d) HEX 6.35mm

9) The power controller model: BSP-32HL-40W/60W DC 20V or 32V



KILEWS bsd-3200l Low Torque Precision Fully Automatic Electric Screwdriver for production line, assembly tools, shut off clutch



KILEWS bsd-3200l Low Torque Precision Fully Automatic Electric Screwdriver for production line, assembly tools, shut off clutch

Details of goods:

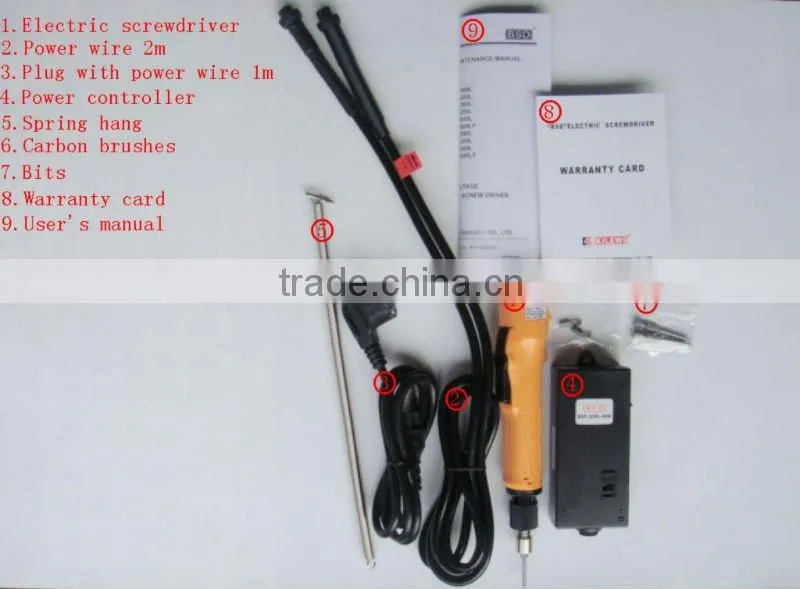

1.All parts with one setKILEWS bsd-3200l Low Torque Precision Fully Automatic Electric Screwdriver for production line, assembly tools, shut off clutch

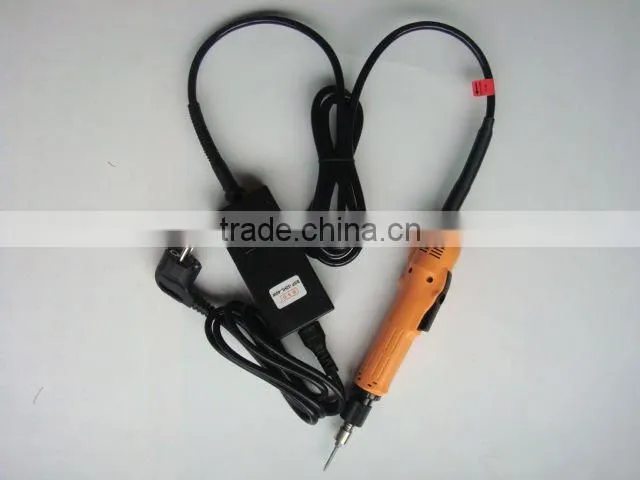

2.wire combination

KILEWS bsd-3200l Low Torque Precision Fully Automatic Electric Screwdriver for production line, assembly tools, shut off clutch

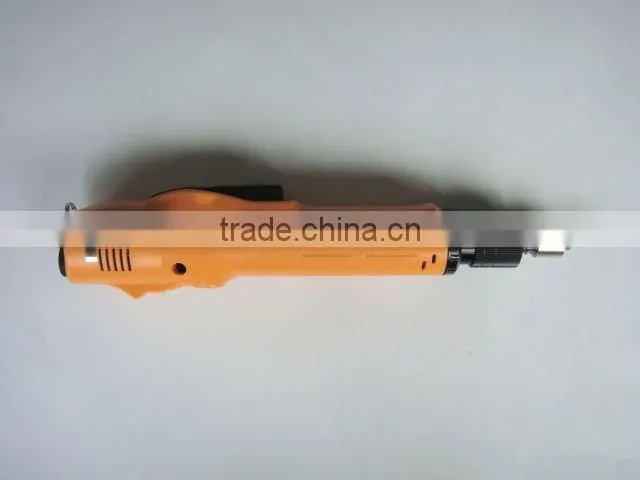

3. the right side

KILEWS bsd-3200l Low Torque Precision Fully Automatic Electric Screwdriver for production line, assembly tools, shut off clutch

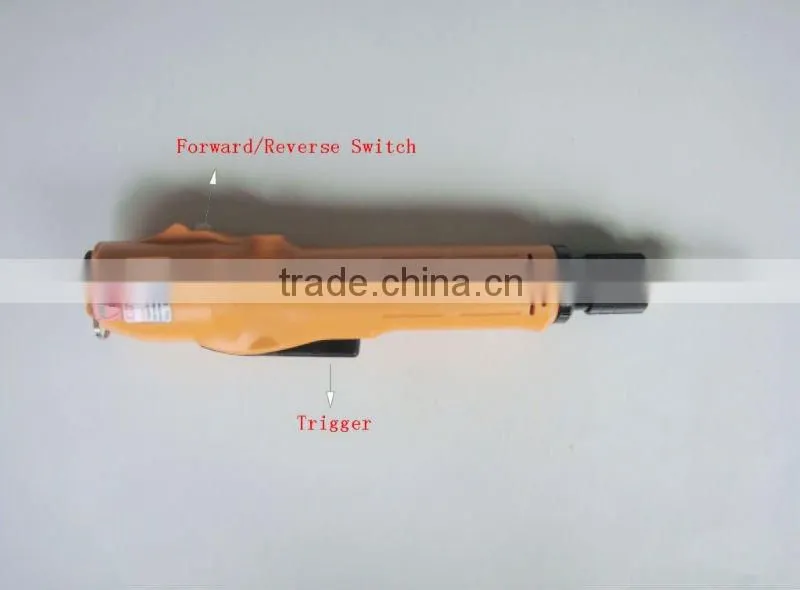

4.the other side

KILEWS bsd-3200l Low Torque Precision Fully Automatic Electric Screwdriver for production line, assembly tools, shut off clutch

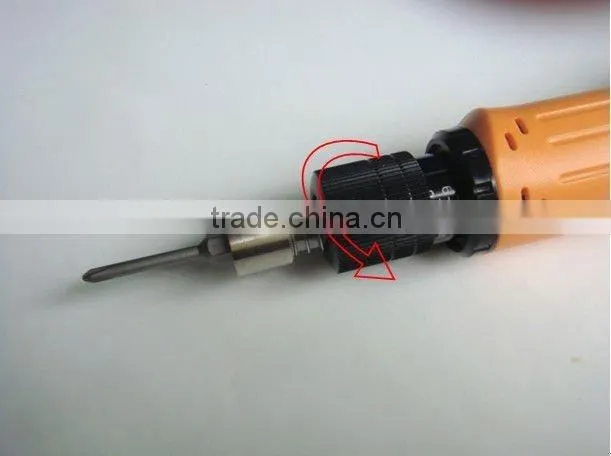

5.0-8 stepless torque adjustment

KILEWS bsd-3200l Low Torque Precision Fully Automatic Electric Screwdriver for production line, assembly tools, shut off clutch

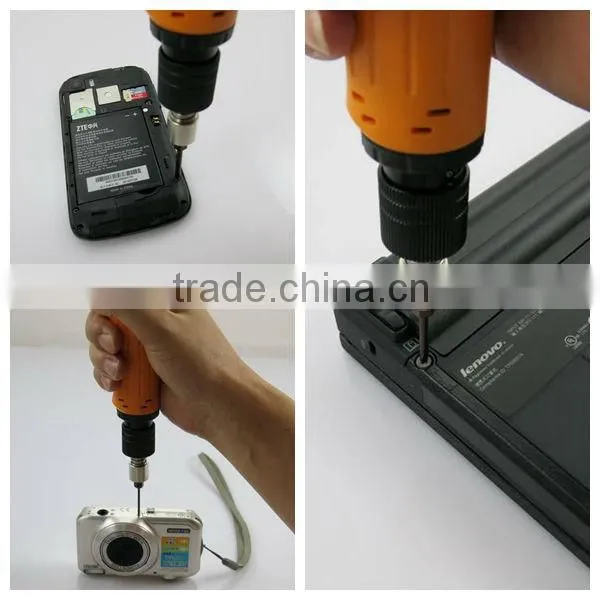

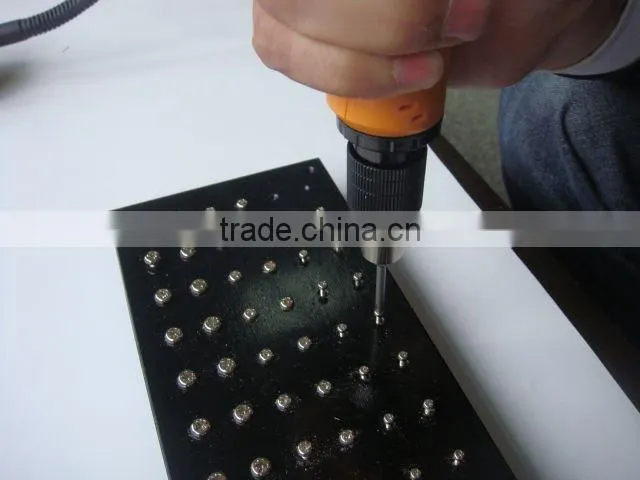

6.fasten screws

KILEWS bsd-3200l Low Torque Precision Fully Automatic Electric Screwdriver for production line, assembly tools, shut off clutch

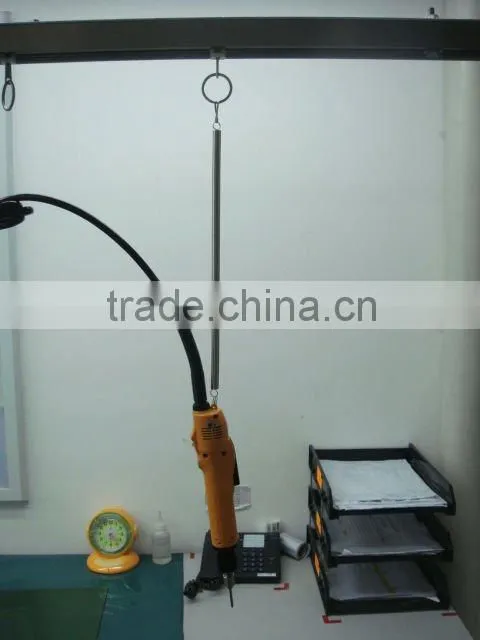

7.you may hang it up with spring,convenience

KILEWS bsd-3200l Low Torque Precision Fully Automatic Electric Screwdriver for production line, assembly tools, shut off clutch







KILEWS bsd-3200l Low Torque Precision Fully Automatic Electric Screwdriver for production line, assembly tools, shut off clutch



KILEWS bsd-3200l Low Torque Precision Fully Automatic Electric Screwdriver for production line, assembly tools, shut off clutch





KILEWS bsd-3200l Low Torque Precision Fully Automatic Electric Screwdriver for production line, assembly tools, shut off clutchKILEWS bsd-3200l Low Torque Precision Fully Automatic Electric Screwdriver for production line, assembly tools, shut off clutchKILEWS bsd-3200l Low Torque Precision Fully Automatic Electric Screwdriver for production line, assembly tools, shut off clutchKILEWS bsd-3200l Low Torque Precision Fully Automatic Electric Screwdriver for production line, assembly tools, shut off clutch
