Home > Industrial Equipment & Components > Compressor > Compressor Unit > Electric Screw Air Compressor 1 Mpa for Sale

Electric Screw Air Compressor 1 Mpa for Sale

Electric Screw Air Compressor 1 Mpa for Sale photo-1
Electric Screw Air Compressor 1 Mpa for Sale photo-2
Electric Screw Air Compressor 1 Mpa for Sale photo-3
US$ 2,380 - 36,590 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Screw
Configuration:
Stationary
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Screw
Configuration Stationary
Power Source AC Power
Lubrication Style Lubricated
Mute No
Place of Origin Shanghai, China
Brand Name ZIQI
Model Number GAS-15A electric screw compressor
Voltage 380V
Dimension(L*W*H) 1260*850*1220mm
Weight 590kg
Certification ISO9001
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

Electric frequency converter screw compressor for sale

Product Description
Product Description
                  Electric screw air compressor 1 Mpa for sale

Technical Data

Model

GAS-15A

 Air discharge/Pressure discharge

 m³/min/Mpa

 0.27~2.7/0.7 ,                      0.25~2.5/0.8,     0.23~2.3/1.0 ,                       0.20~2.0/1.3

compression series



Single stage

Cooling model



A-Air cooling

Exhaust temperature

ºC

< Ambient temperature  +15ºC

Air inlet temperature

ºC

≤32ºC

Air inlet pressure

MPa

0.2~0.6

Noises Level

dB(A)

63±2

Transmission



Belt Drive

Power supply

V/Ph/Hz

380/3/50

Protection grade



IP55

Motor power

kw

15

Starting model



frequency start up

 Dimensions

L

mm

1260



W

mm

850



H

mm

1220

 Weight

Kg

590

Exit diameter

mm

DN25



               Electric screw air compressor 1 Mpa for sale

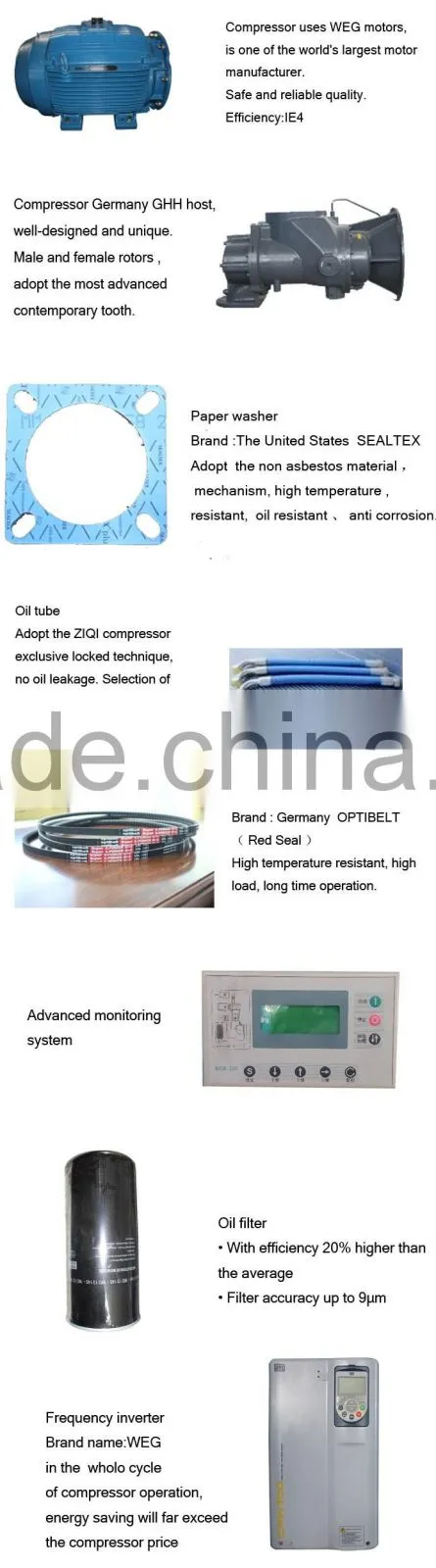

Detailed Images

Detailed Images

Electric screw air compressor 1 Mpa for sale



Company Information

Company Information



 ZiQi is a professional manufacturer of compressor you can trust.Company produces the product series include air-cooled screw air compressor, water cooled screw air compressor, screw air compressor frequency conversion and mobile screw air compressor, freeze drying machine, precision filter, adsorption dryer, etc.At the scene of the production, ZiQi compressor will provide users with high-quality compressor air system, to the user to achieve the best production capacity.User can choose in the range of our products a complete set of compressed air system to meet the various needs.





Electric screw air compressor 1 Mpa for sale

Packaging & Shipping

 Packaging & Shipping

Electric screw air compressor 1 Mpa for sale
